2. Module slot.
3. Fan tray.
4. Mini-SAS stacking ports.
5. PSU 2.
NOTE: The S3124 platform does not support stacking with Dell Networking OS 9.8(2.0).
S3124P Platform I/O Side
The S3124P platform I/O side (shown in the following illustration) contains twenty-four 1G copper switch
ports that include PoE+ function. The I/O side also contains a console port, management port, serial bus
port, reset button, two 10G SFP+ ports, and two 1G SFP combo ports.

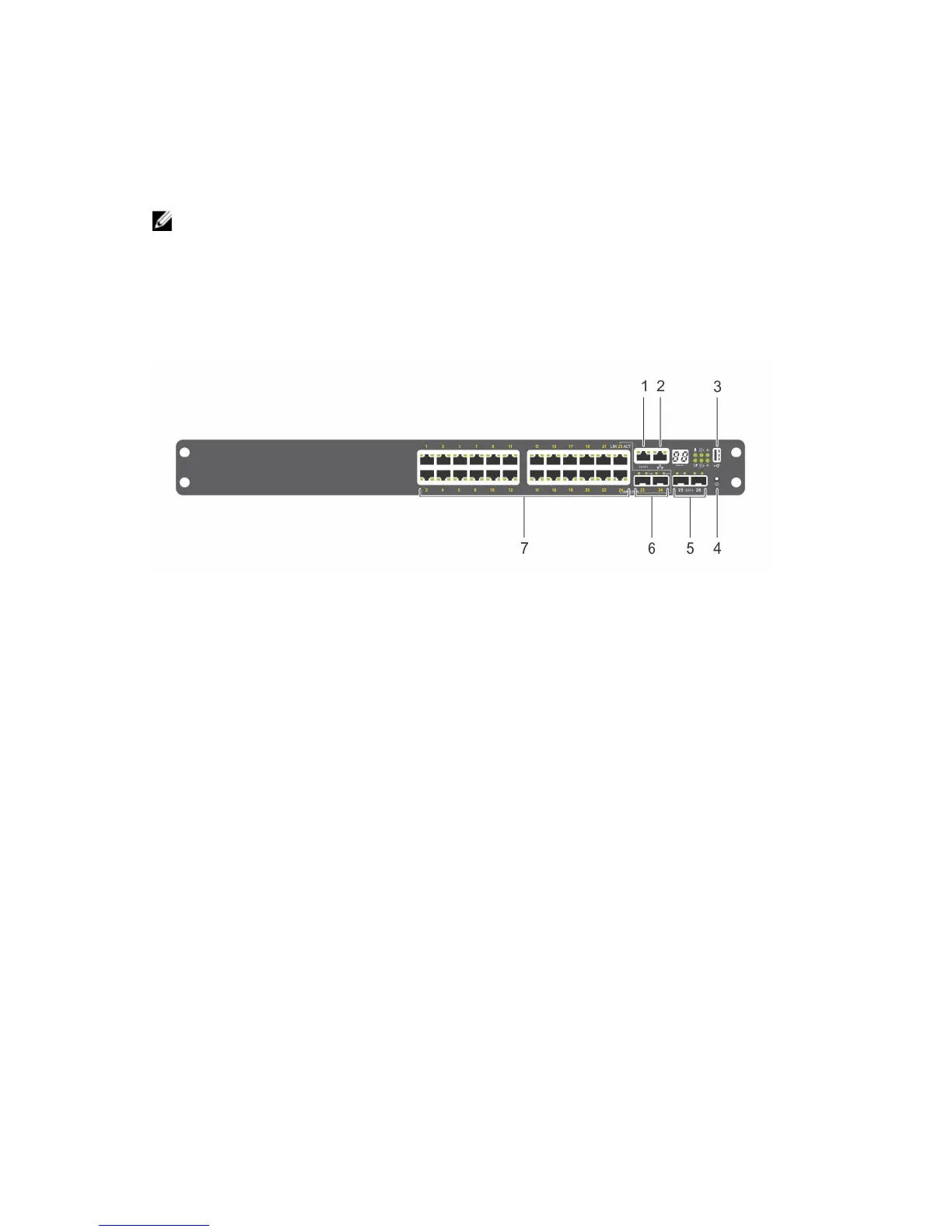

Figure 5. S3124P I/O Side View
1. Console port.
2. Management port (RJ-45 type).
3. One universal serial bus port (USB Type-A) for storage.
4. Reset button.
5. Two 10G SFP+ ports.
6. Two 1G SFP combo ports.
7. Twenty-four 1G copper switch ports including PoE+ function.
8
S3100 Series Hardware Overview

Dell Networking S3100 Series Specifications

General

Series	S3100 Series
Ports	24 or 48 x 1GbE RJ45 ports
Uplinks	2 x 10GbE SFP+ ports
Power Supply	Internal power supply
Stacking	Up to 6 units
Layer	Layer 2
MAC Address Table Size	16, 000 entries
VLANs Supported	4094
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	non-condensing
Jumbo Frame Support	Yes
