Dell Networking S3100 Series User Manual

S3124P Platform PSU Side

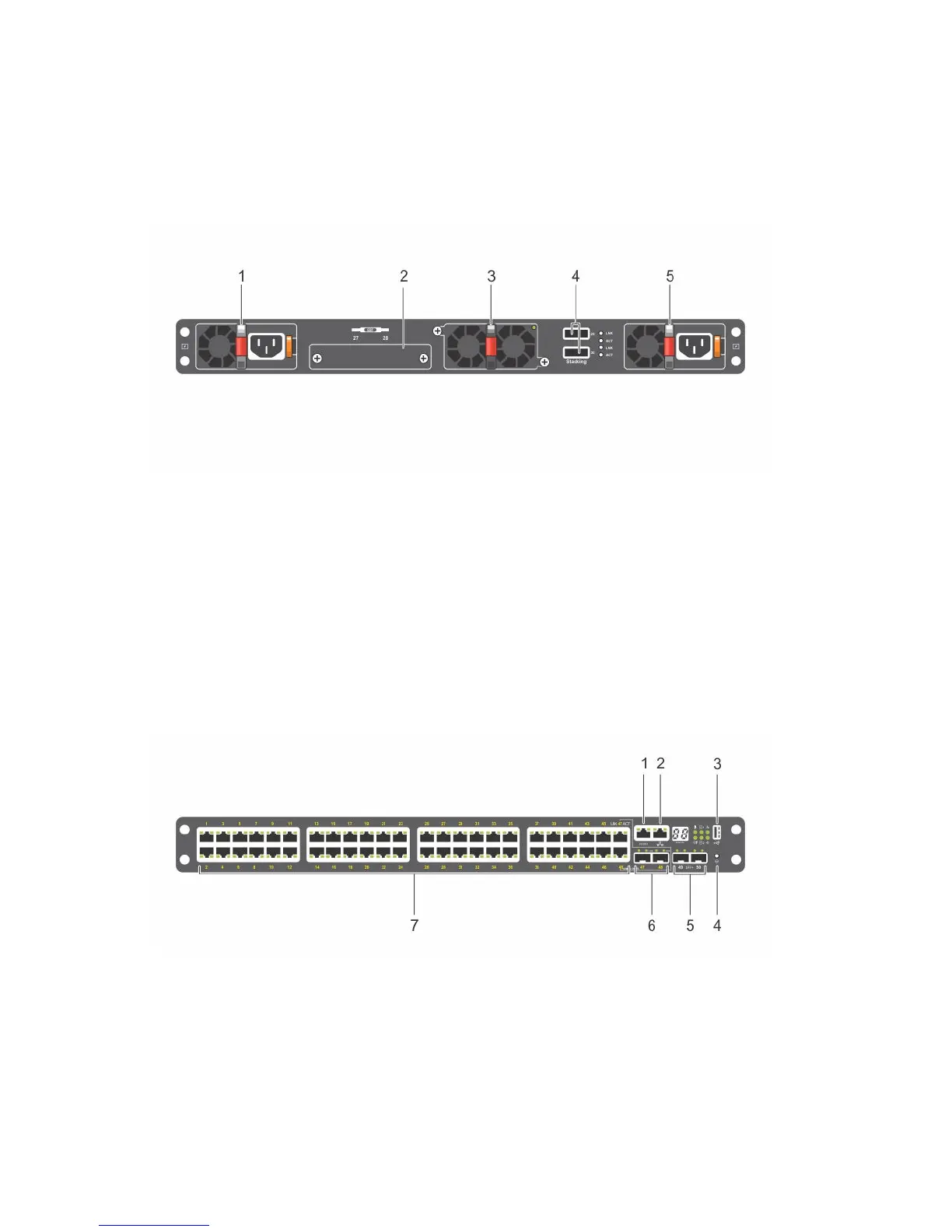

The S3124P PSU side (shown in the following illustration) includes the power supplies, fan tray, and
stacking ports.
Figure 6. S3124P PSU Side View
1. PSU 1.
2. Module slot.
3. Fan tray.
4. Mini-SAS stacking ports.
5. PSU 2.
S3148P Platform I/O Side
The S3124P platform I/O side (shown in the following illustration) contains forty-eight 1G copper switch
ports that include PoE+ function. The I/O side also contains a console port, management port, serial bus
port, reset button, two 10G SFP+ ports, and two 1G SFP combo ports.
Figure 7. S3148P I/O Side View
1. Console port.
2. Management port (RJ-45 type).
3. One universal serial bus port (USB Type-A) for storage.
S3100 Series Hardware Overview
9

Dell Networking S3100 Series Specifications

General

Series	S3100 Series
Ports	24 or 48 x 1GbE RJ45 ports
Uplinks	2 x 10GbE SFP+ ports
Power Supply	Internal power supply
Stacking	Up to 6 units
Layer	Layer 2
MAC Address Table Size	16, 000 entries
VLANs Supported	4094
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	non-condensing
Jumbo Frame Support	Yes
