Dell™OptiPlex™760ServiceManual
Cards
Cards
YourDell™computersupportsaPS/2serialportadapterandprovidesthefollowingconnectorsforPCIandPCIExpresscards:
l One low-profile PCI card slot
l One low-profile PCI Express x16 card slot
PCI Cards

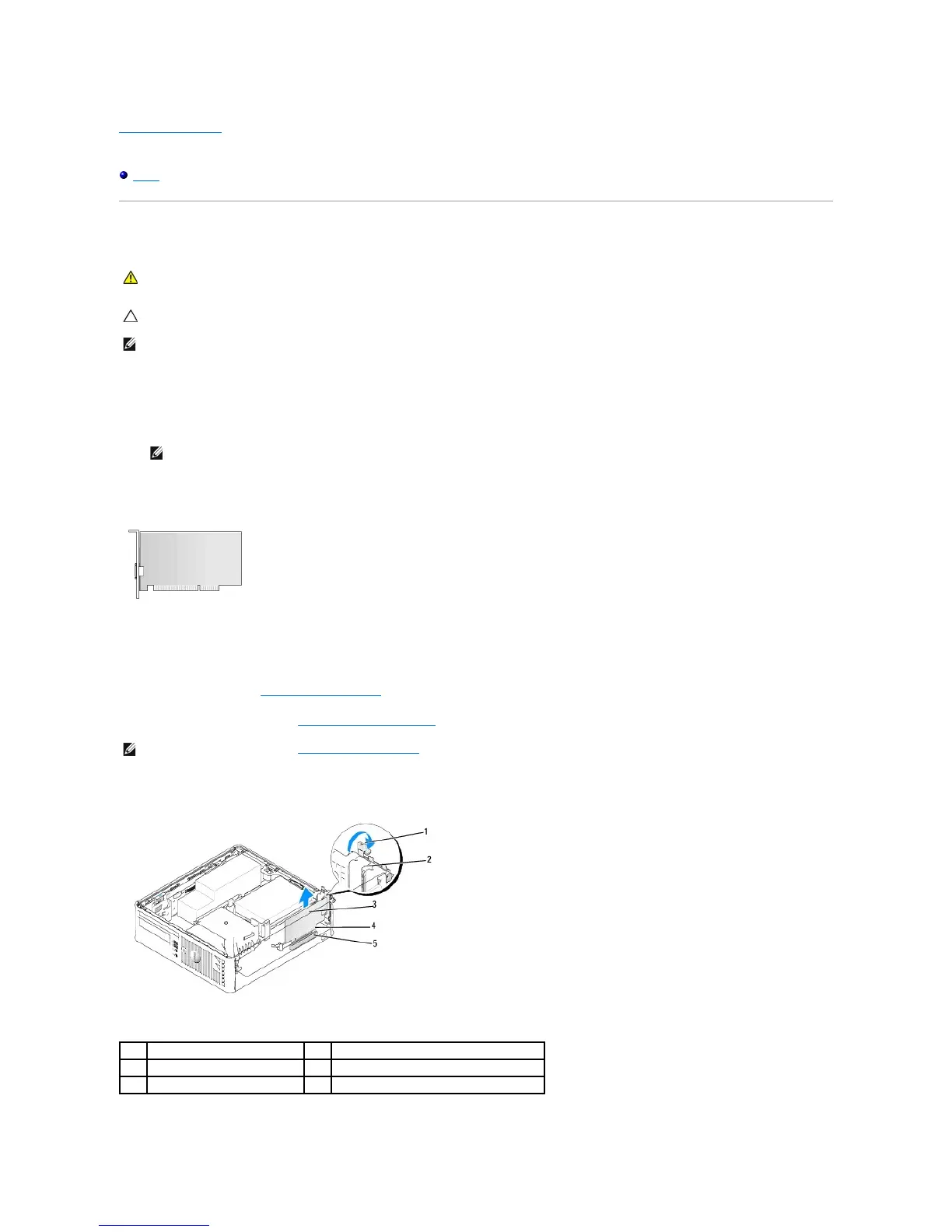

Installing a PCI Card
1. Follow the procedures in Working on Your Computer.
2. Remove the computer cover (see Removing the Computer Cover).
3. Gently lift the release tab on the card retention latch from the inside and pivot the latch open.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface on the computer chassis.
NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets keep dust and dirt
out of your computer and maintains the airflow that cools your computer.
NOTE: Your Dell computer uses only PCI and PCI Express slots. ISA cards are not supported.
NOTE: For PCI card locations, see System Board Components.
