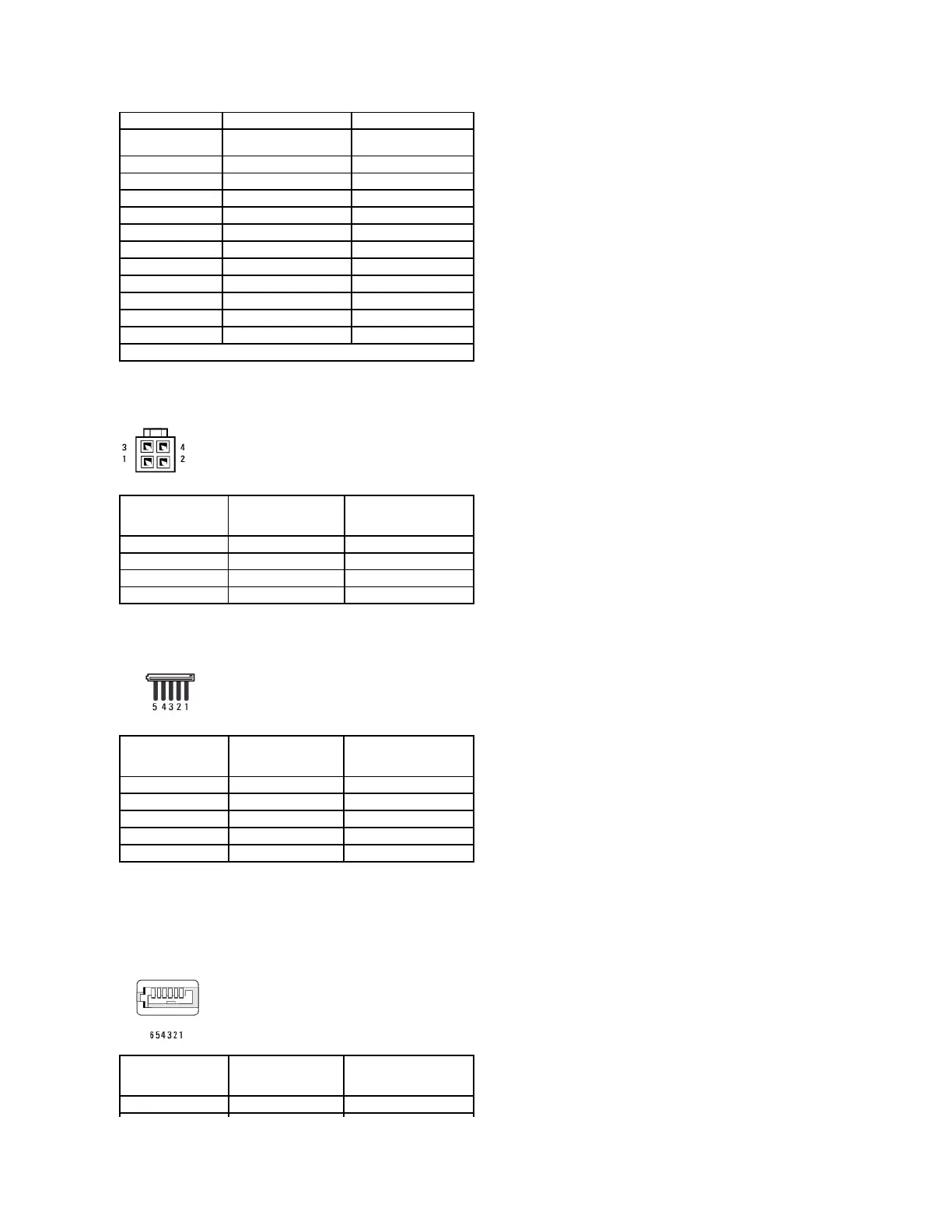

DC Power Connector P2
DC Power Connector P3
Thermal Sensor P5
DC Power Connector P6
12
+3.3 V
Orange
13
(optional)
+3.3V
Orange
14
-12 V*
Blue
15
GND
Black
16
PWR_PS_ON
Green
17
GND
Black
18
GND
Black
19
GND
Black
20
NC
NC
21
VCC (+5V)
Red
22
VCC (+5V)
Red
23
VCC (+5V)
Red
24
GND
Black
*Use 22-AWG wire instead of 18-AWG wire.
Pin Number
Signal Name
18-AWG Wire
1
GND
Black
2
GND
Black
3
+12 VDC
Yellow
4
+12 VDC
Yellow
Pin Number
Signal name
18-AWG Wire
1
+3.3 VDC
Orange
2
GND
Black
3
+5 VDC
Red
4
GND
Black
5
+12 VDC
Yellow
Pin Number
Signal name
18-AWG Wire
1
N/A
N/A
