1. Perform the procedure Before Working on Your Computer.
2. Disconnect the speaker cable from the system board.

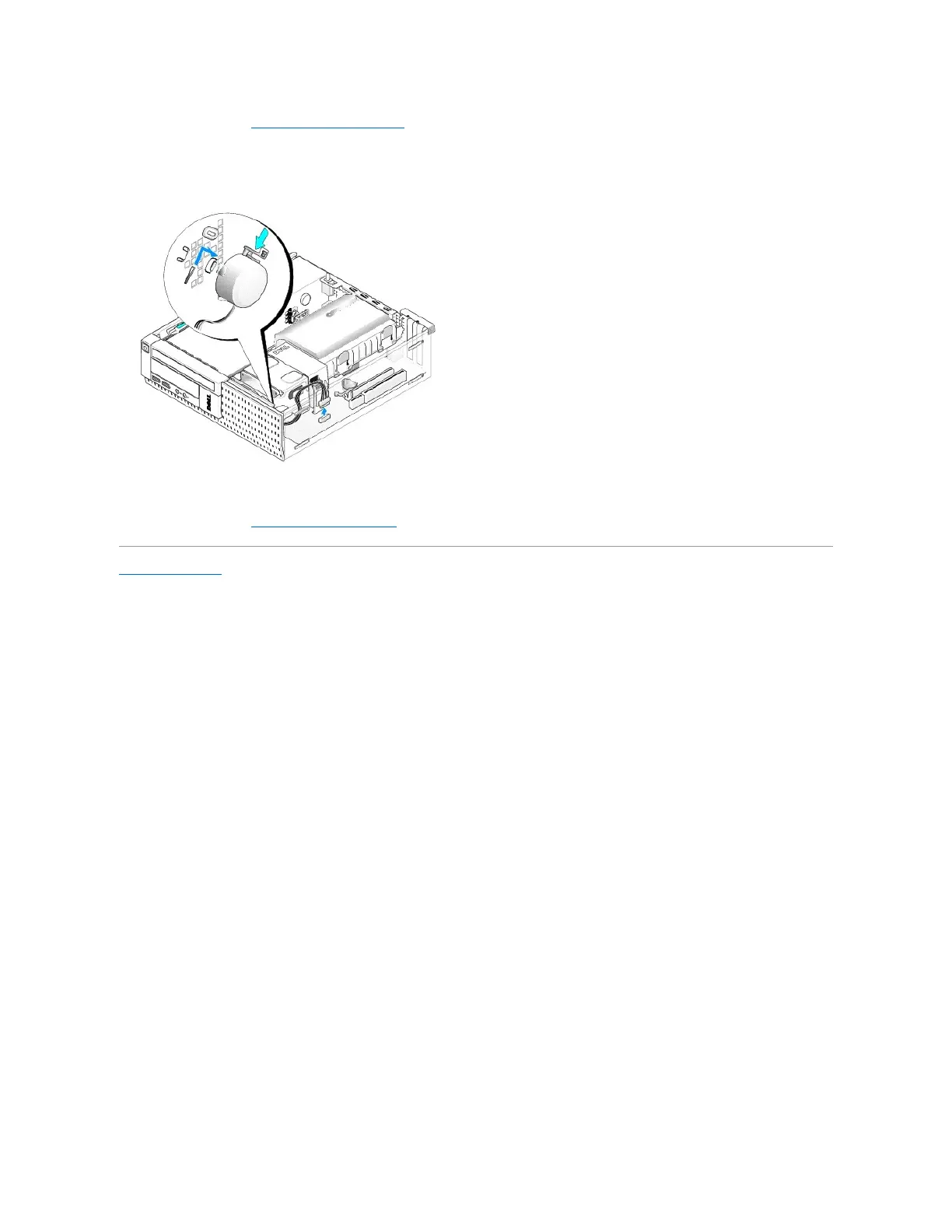

3. To remove the internal speaker, press the locking tab, shift the speaker to move the speaker housing retention tabs away from the grill retention tabs,
and lift the speaker from the chassis.
4. Replace the computer cover.
5. Perform the procedure After Working on Your Computer.
