Dell™Optiplex™960MiniTower/Desktop/SmallFormFactorServiceManual

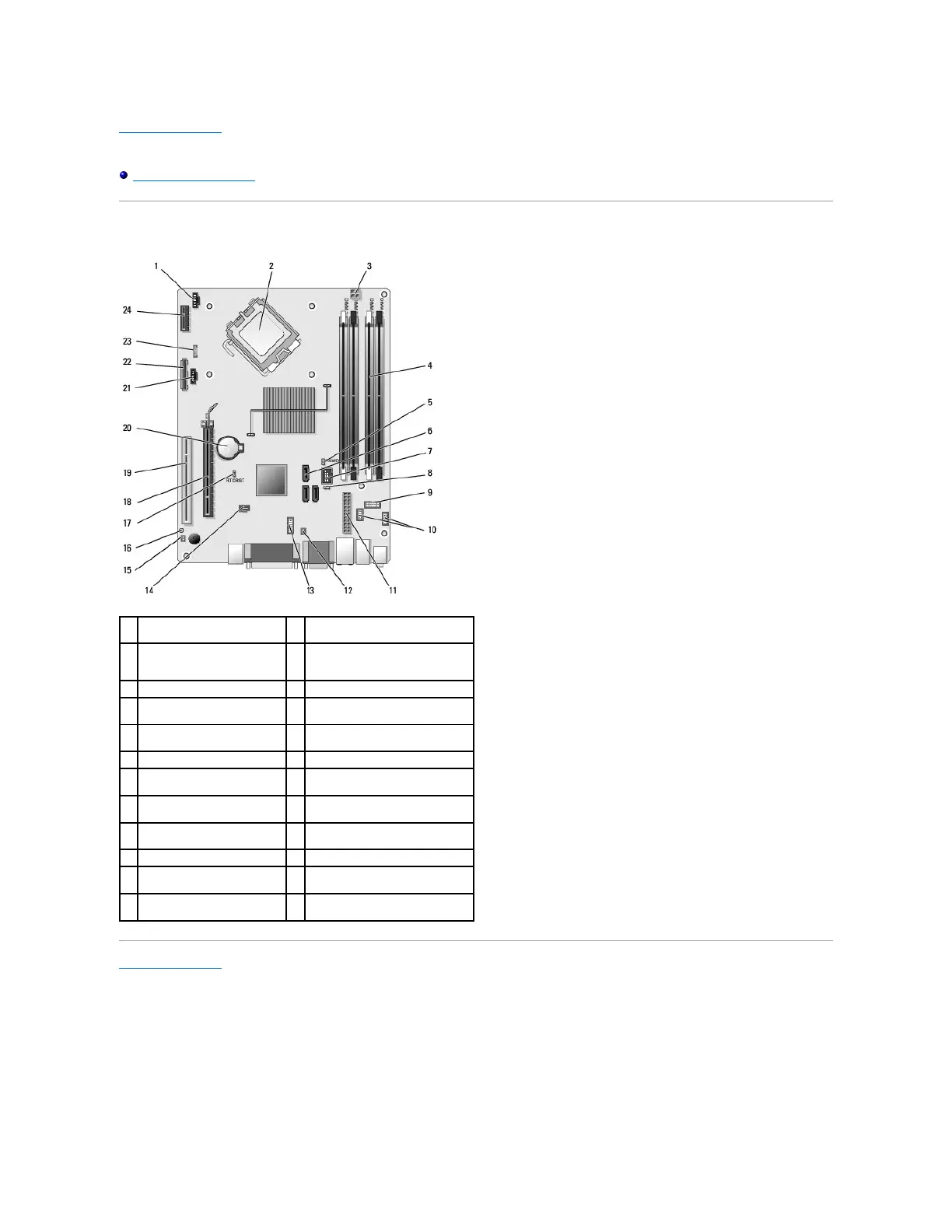

System Board Components
System Board Components
Back to Contents Page

1
heatsink front fan connector
(FAN_CPU)
2
processor connector (CPU)
3
processor power connector
(12VPOWER)
4
memory module connectors
(DIMM_1, DIMM_2, DIMM_3,
DIMM_4)
5
password jumper pins (PSWD)
6
SATA drive connectors (3)
7
internal (FlexBay) USB
connector
8
service mode jumper pins
9
system status LEDs panel
connector (FRONTPANEL)
10
I/O assembly connectors (2)
11
power connector (POWER)
12
PSU thermal sensor connector
13
internal serial port connector
14
intrusion switch connector
(INTRUDER)
15
front panel thermal sensor
cable connector
16
BIOS/RTC reset jumper pins
(RTCRST)
17
BIOS/RTC reset jumper pins
(RTCRST)
18
PCIe x16 connector (SLOT1)
19
PCI connector (SLOT2)
20
RTC battery socket (BATTERY)
21
heatsink back fan connector
(FAN_HDD)
22
floppy drive connector (DSKT)
23
connector for optional internal
speaker (INT_SPKR1)
24
connector for optional wireless card
