About this task

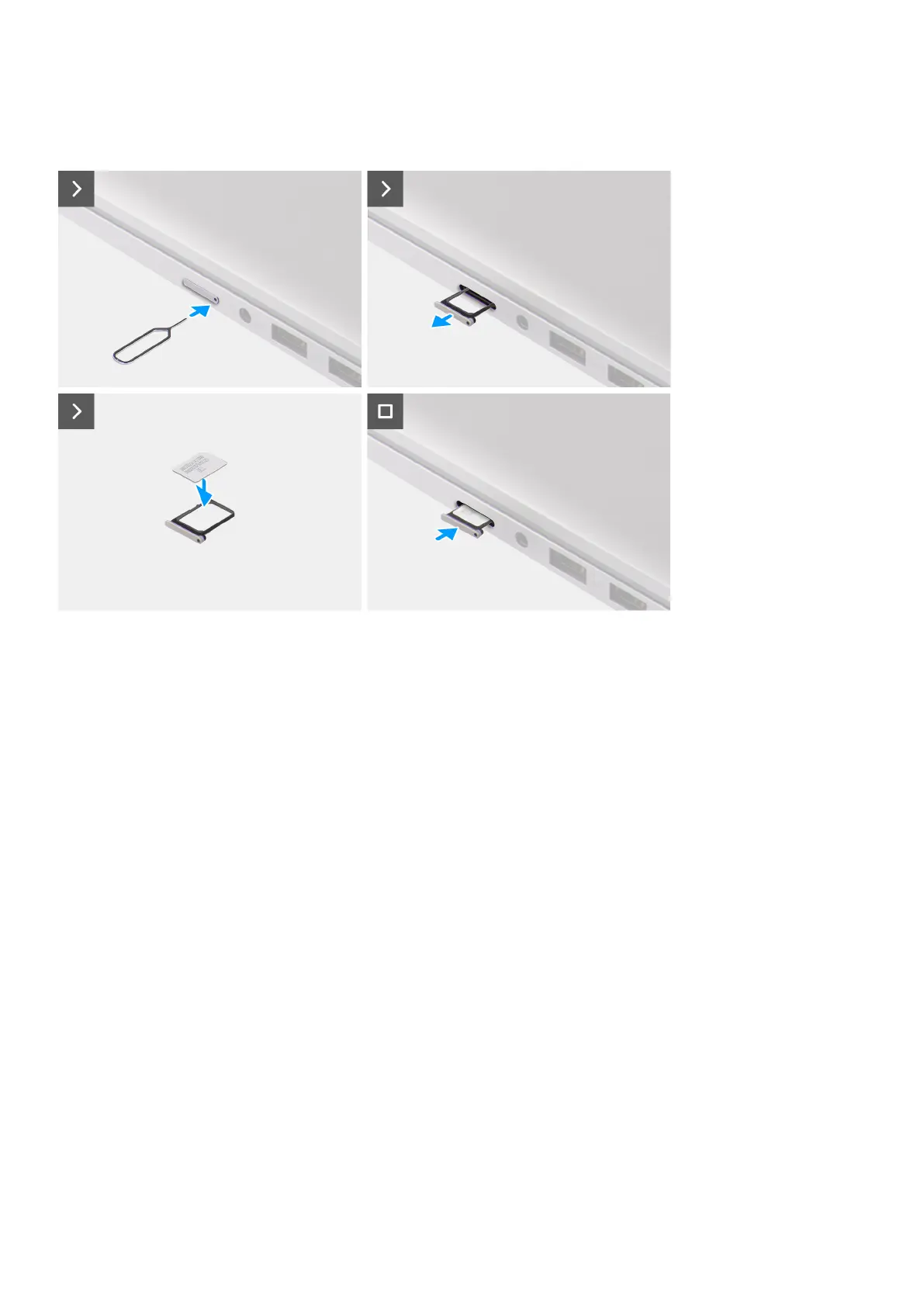

The following images indicate the location of the nanoSIM-card tray and provide a visual representation of the installation
procedure.
Steps
1. Insert a pin into the hole of the nanoSIM-card tray and push inward until the tray is released.
2. Slide the nanoSIM-card tray out of the slot on the computer.
3. Place the SIM card into the nanoSIM-card tray with the metallic contact facing up.
4. Align the nanoSIM-card tray with the slot on the computer and carefully slide it in.
Next steps
1. Follow the procedure in After working inside your computer.
Base cover
Removing the base cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
About this task
The following images indicate the location of the base cover and provide a visual representation of the removal procedure.
14
Removing and installing components
