Steps
1. Place the base cover on top of the palm-rest and keyboard assembly.
2. Align the screw holes on the base cover with the screw holes on the palm-rest and keyboard assembly, and snap the base
cover latches into place.
3. Tighten the eight captive screws to secure the base cover to the palm-rest and keyboard assembly.
Next steps
1. Follow the procedure in After working inside your computer.
Solid-state drive
Removing the M.2 2230 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
NOTE: To avoid data loss, do not remove the solid-state drive while the computer is in sleep or on state.
2. Remove the base cover.
About this task
NOTE:
The M.2 card that is installed on your computer depends on the configuration ordered. Supported card
configurations on the M.2 card slot are:
● M.2 2230 solid-state drive

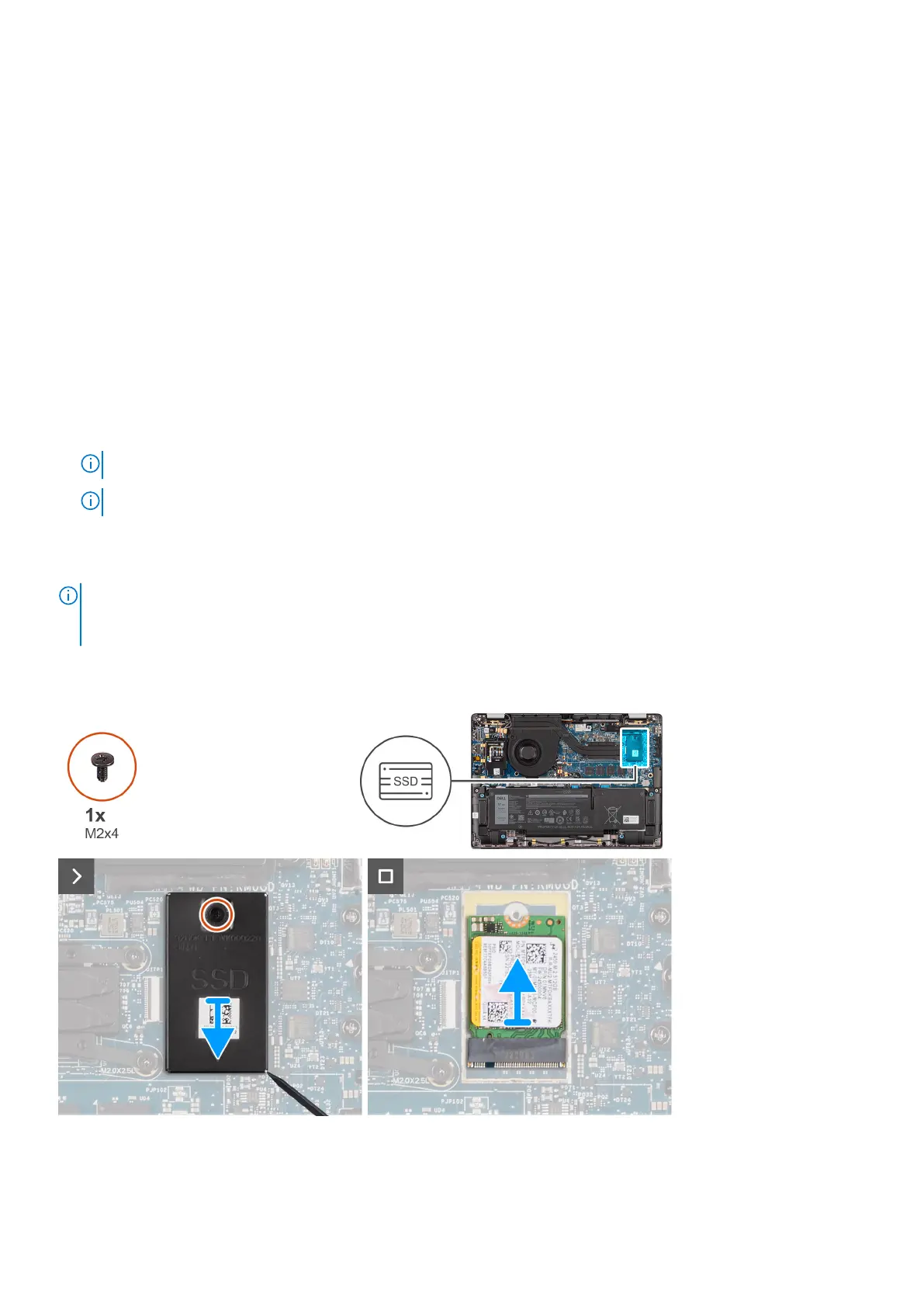

The following image indicates the location of the M.2 2230 solid-state drive and provides a visual representation of the removal
procedure.
Steps
1. Remove the single screw (M2x4) that secure the M.2 2230 solid-state drive extension thermal plate to the system board.
18
