Steps
1. Unroute the antenna cables from the routing guide.
2. Disconnect the speaker cable from the connector on I/O daughter-board.
3. Peel the tape that secures the speaker cable to the palm-rest and keyboard assembly.
4. Note the speaker cable routing, and unroute the speaker cable from the routing guides on the palm-rest and keyboard
assembly.
5. Lift the speakers, along with the cable, off the palm-rest and keyboard assembly.
Installing the speakers for ultralight
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE:
If the rubber grommets are pushed out when removing the speakers, push them back in before replacing the
speakers.

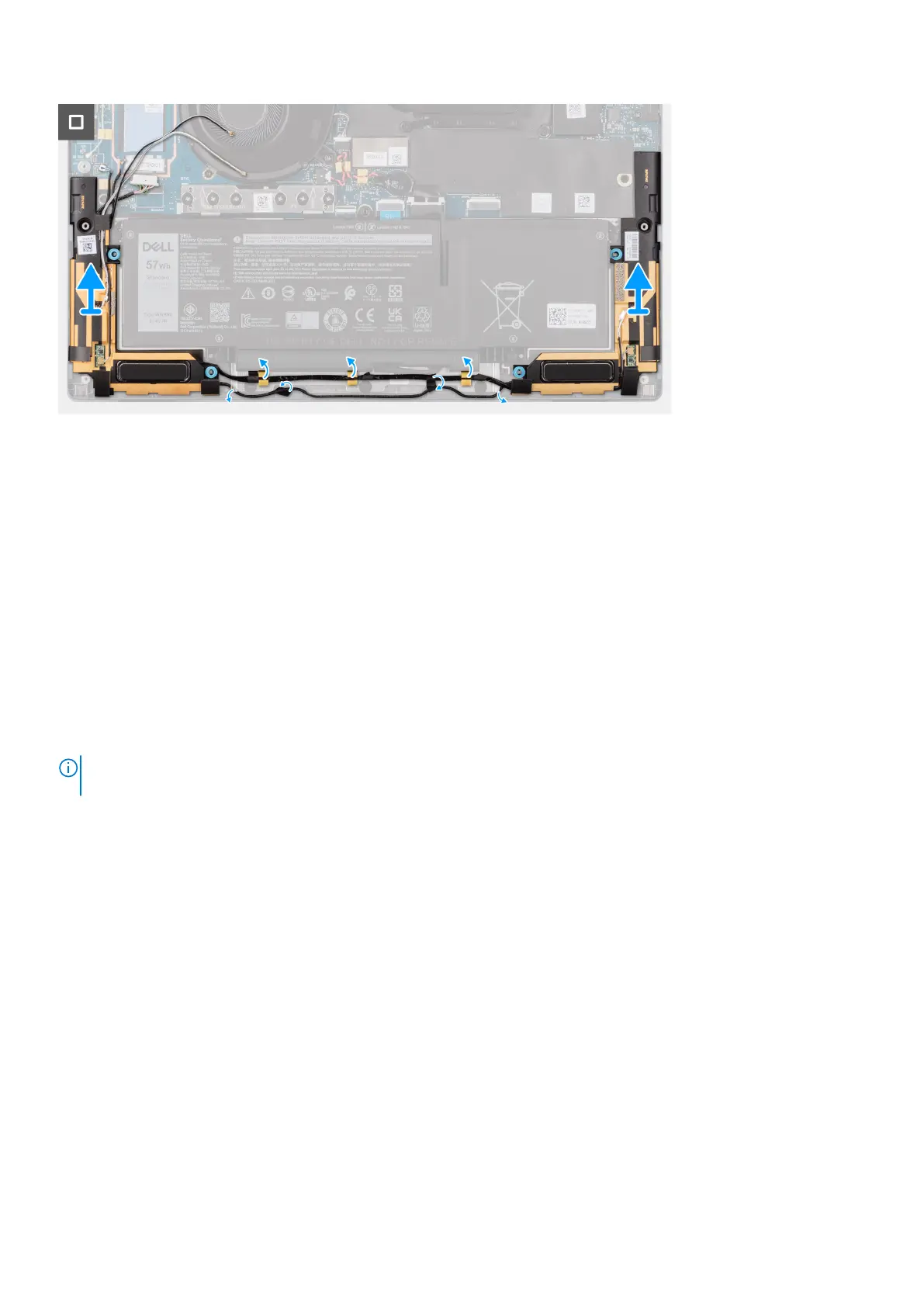

The following image indicates the location of the speakers and provides a visual representation of the installation procedure.
Removing and installing components
41
