Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, and the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

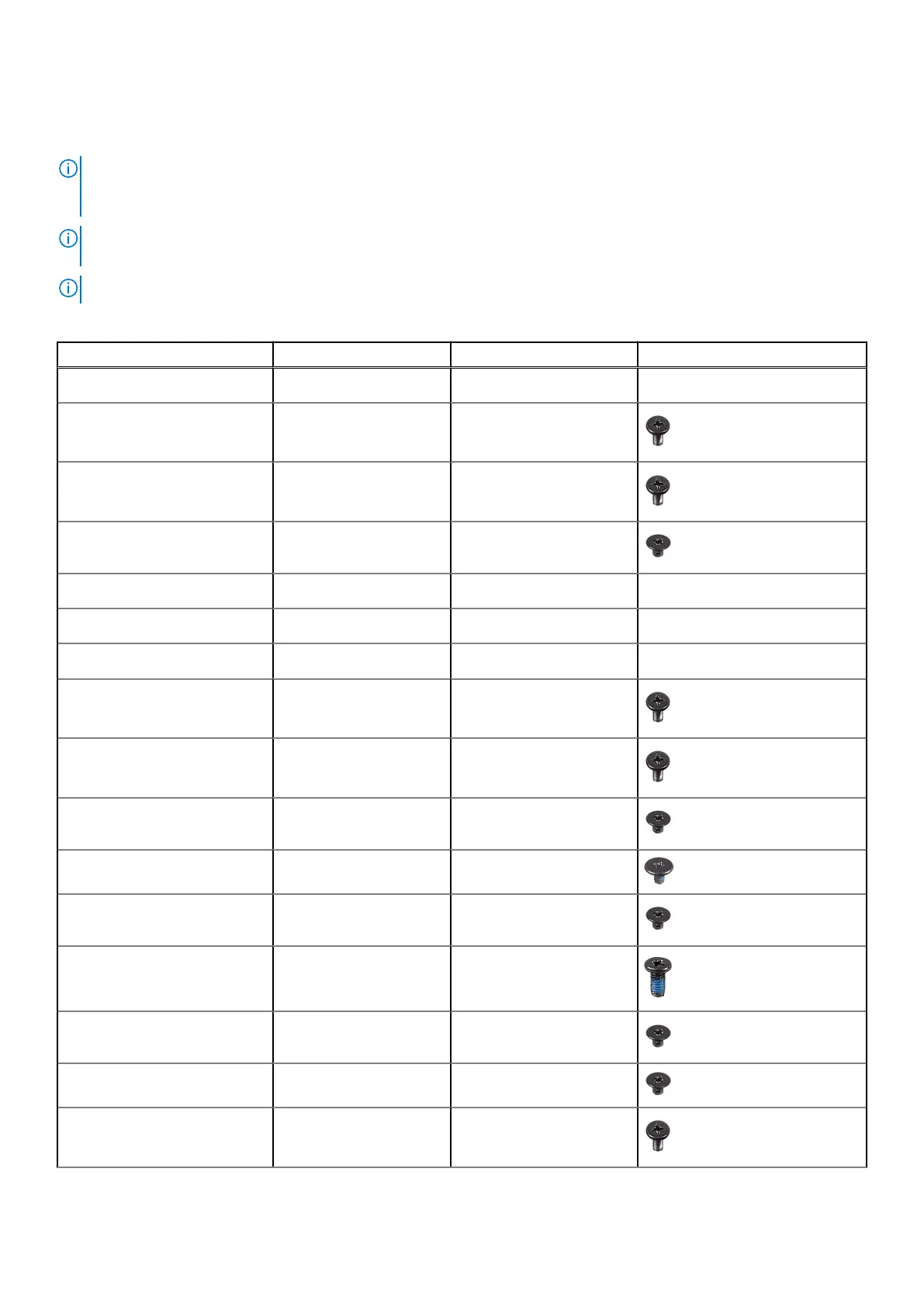

Table 30. Screw list
Component Screw type Quantity Screw image
Base cover Captive screw 8
Solid-state drive M2x4 1
M.2 SSD shielding cover M2x4 1
WWAN card M2x2 1
2-cell battery Captive screw 3
2-cell battery filler Captive screw 2
4-cell battery Captive screw 4
Fan assembly M2x4 2
Heat sink Captive screw 4
SIM-card tray bracket M2x2 1
WLAN-antenna module M1.6x2.5 4
WWAN shield cover M2x2 1
Display hinges M2.5x5 4
Display cable bracket M2x2 2
SIM-card tray bracket M2x2 1
USB Type-C bracket M2x2.5 3
Working inside your computer 41
