Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the 3-cell battery and provides a visual representation of the removal procedure.

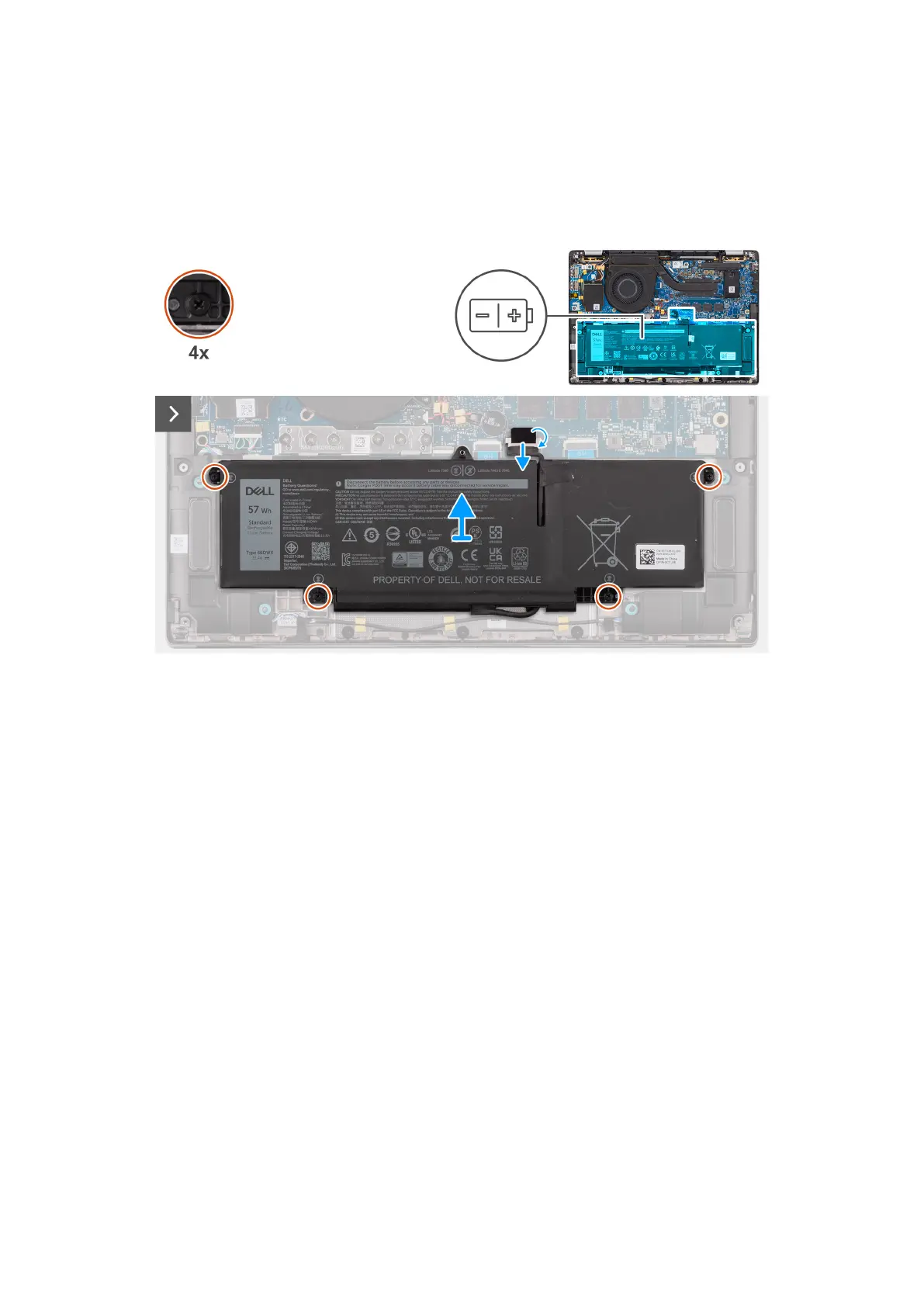

Figure 40. Removing the 3-cell battery
70
Removing and installing Field Replaceable Units (FRUs)
