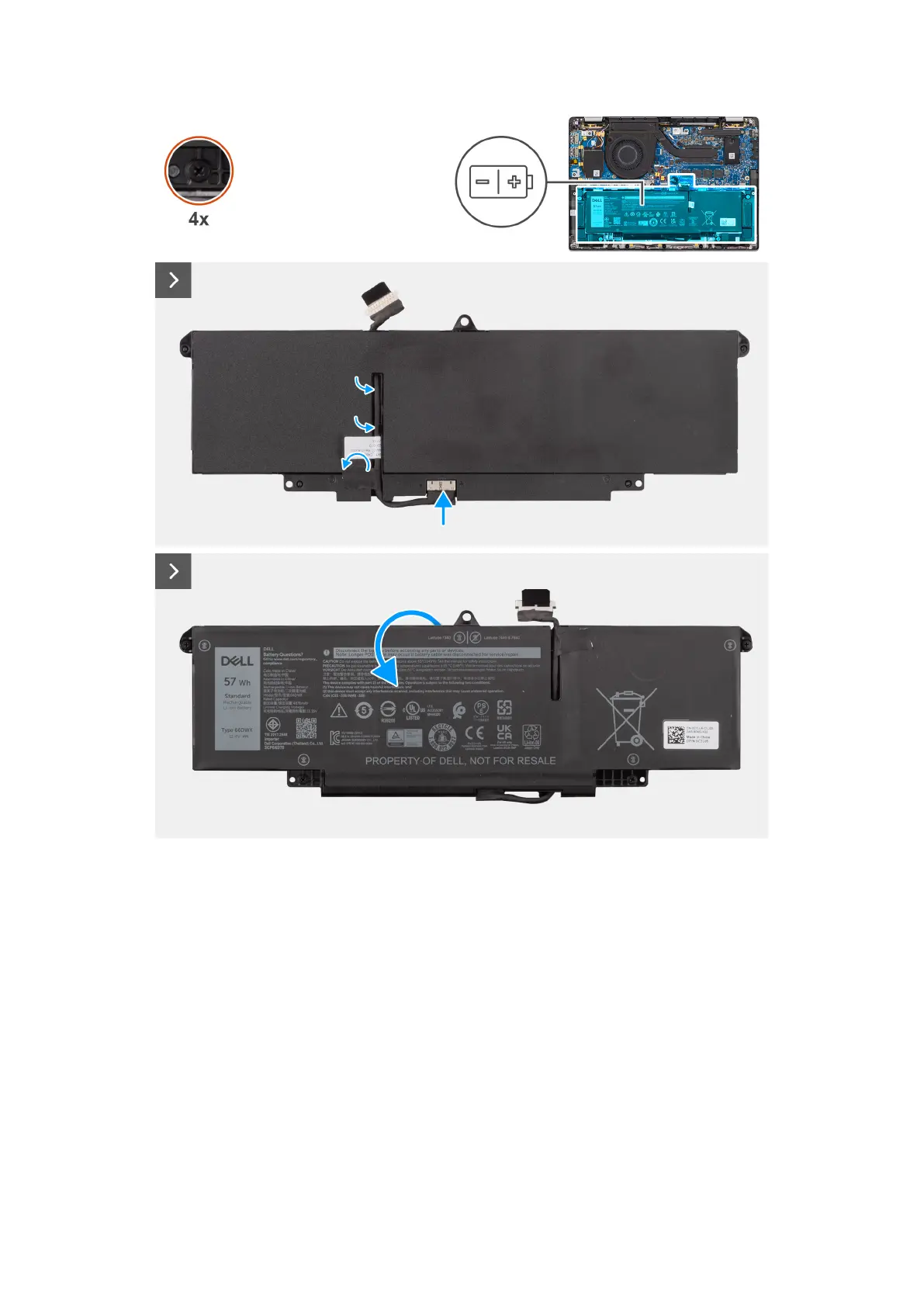

Figure 45. Installing the battery cable
Steps
1. Connect the battery cable to the connector on the battery.
2. Route the battery cable through the routing guides on the battery.
Next steps
1. Install the 2-cell battery or the 3-cell battery, whichever is applicable.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Removing and installing Field Replaceable Units (FRUs)
75
