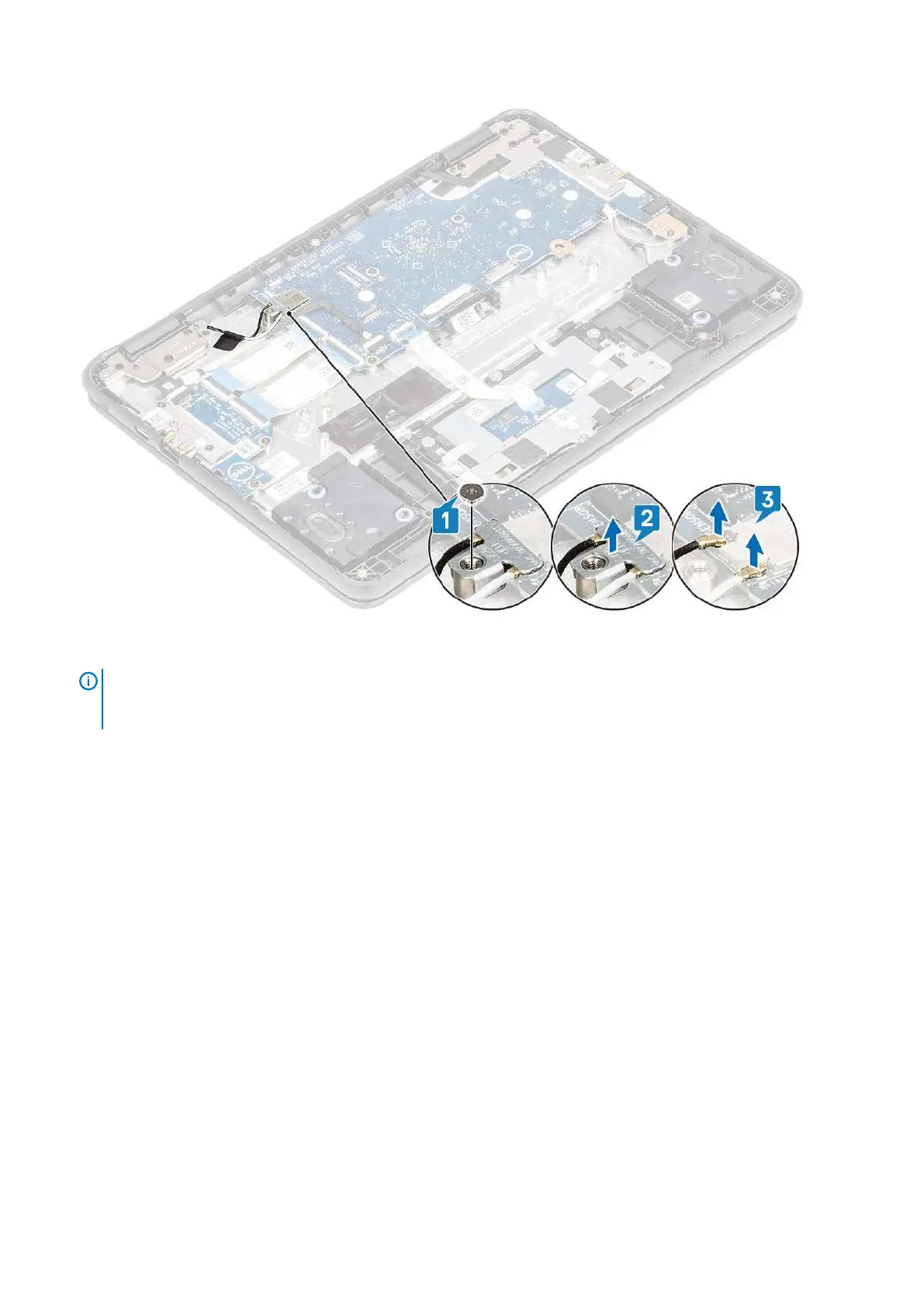

3. Remove the single (M2.0x4.0) screw that secures the display cable bracket to the system board [1]
4. Lift away the display bracket [2].
NOTE:
The screw securing the display cable bracket also secures the left IO bracket to the system board, as a result
removal of the display cable bracket leaves the left IO bracket unsecured. Technicians should therefore, ensure that
the left IO bracket is not moved or lost during any subsequent disassembly processes.
5. Peel back the adhesive tape, open the lock and disconnect the display cable [3], [4].
