Dell P32E - Removing the optical drive

Removing the optical drive
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Topics:
• Procedure
Procedure

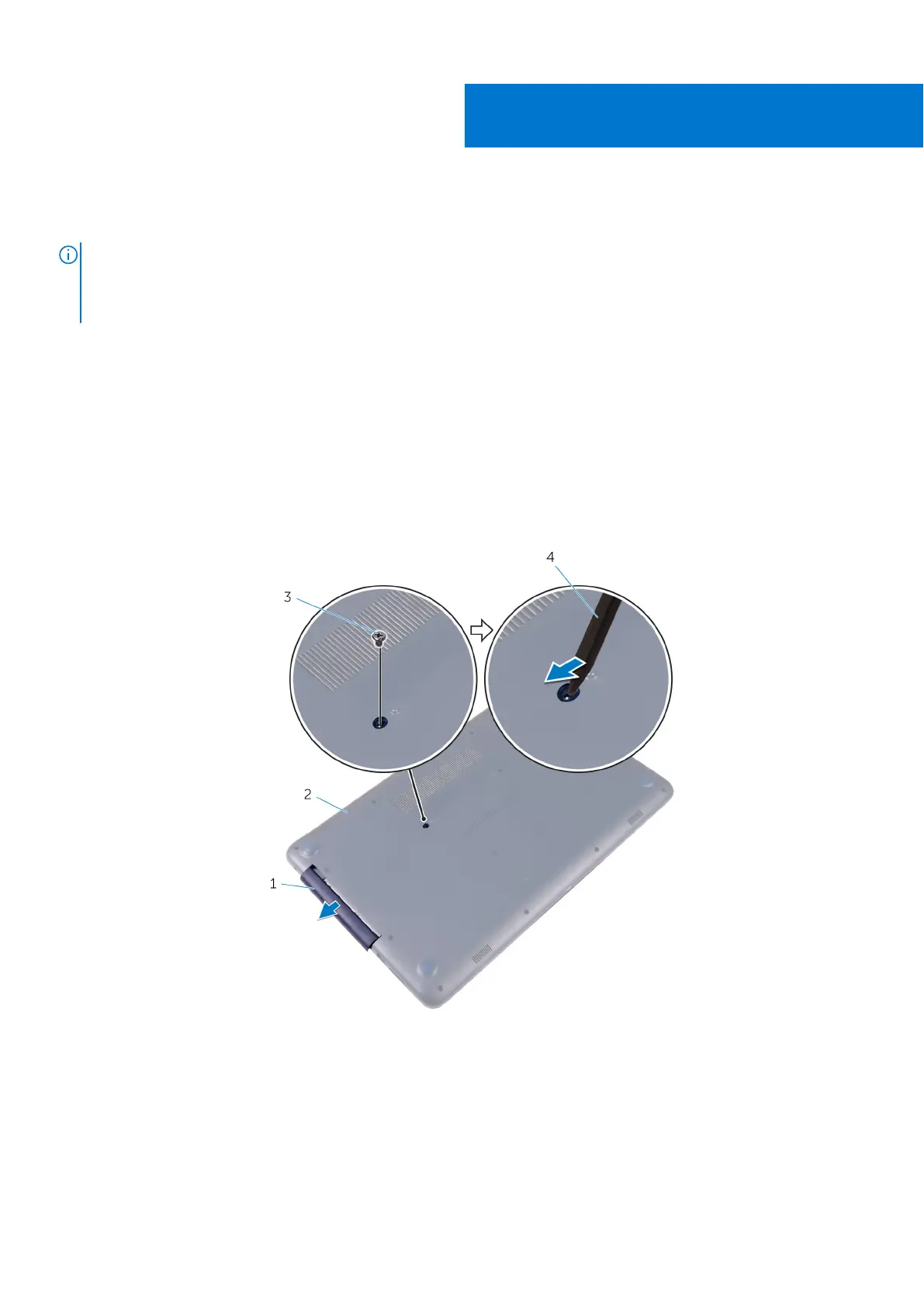

1. Remove the screw that secures the optical-drive assembly to the palm rest and keyboard assembly.
2. Using a plastic scribe, push the optical drive through the slot to release the optical-drive assembly out of the optical-drive
bay.
3. Slide the optical-drive assembly out of the optical-drive bay.
1.
optical-drive assembly 2. palm rest and keyboard assembly
3. M2x4 screw 4. plastic scribe
4. Remove the screws that secure the optical-drive bracket to the optical drive.
5. Remove the optical-drive bracket.
