Removing the display cable
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Topics:
• Prerequisites
• Procedure
Prerequisites
NOTE: This chapter is applicable only for laptops with a non-touchscreen display.
1. Remove the optical drive.
2. Remove the base cover.
3. Remove the battery.
4. Remove the wireless card.
5. Remove the display assembly.
6. Remove the display bezel.
7. Remove the display panel.
Procedure

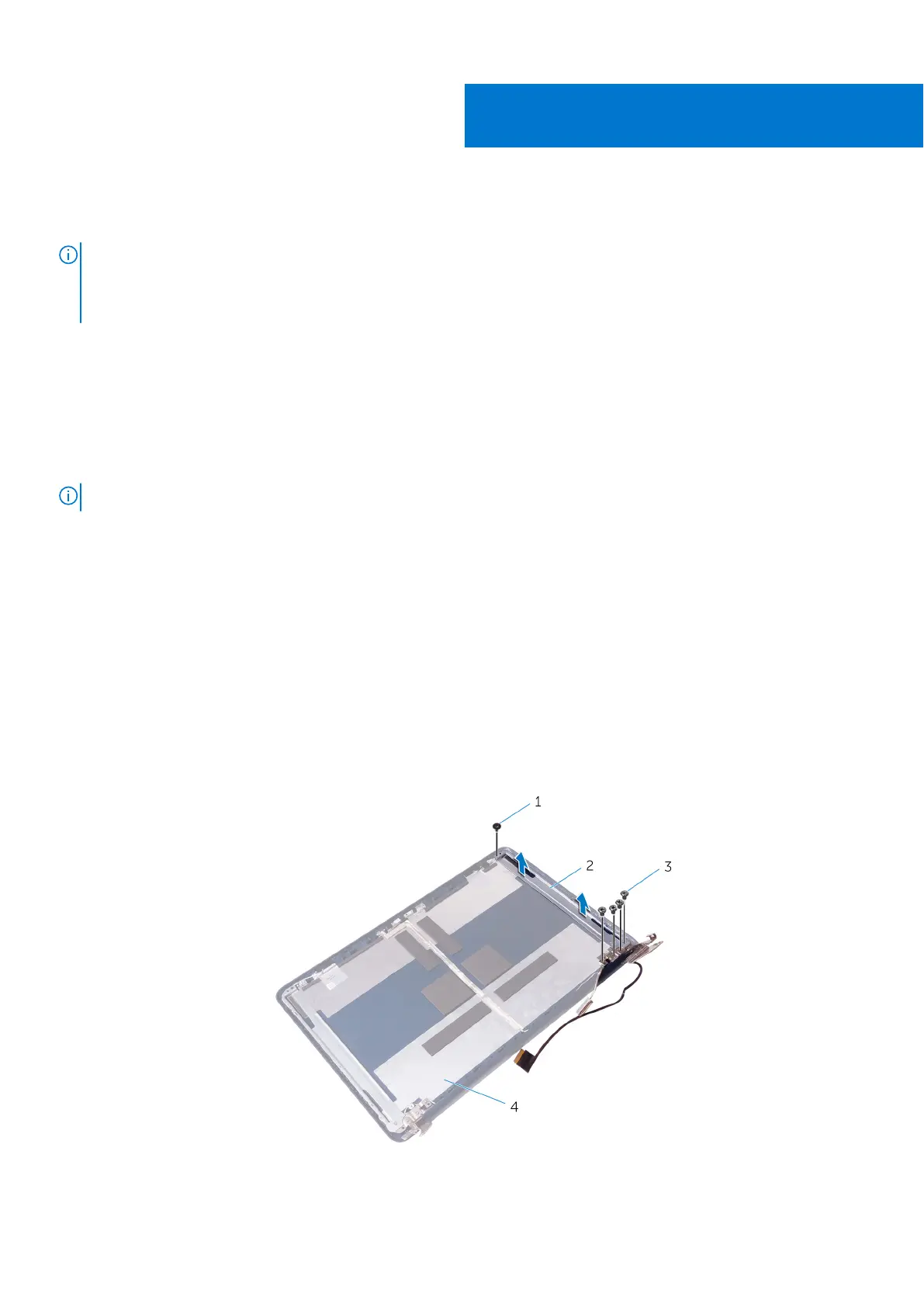

1. Remove the screws that secure the right display hinges to the display panel.
2. Lift the display hinges off the display panel.
1.
M2x3 screw 2. display hinge
47
80 Removing the display cable
