Removing the display assembly
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Topics:
• Prerequisites
• Procedure
Prerequisites
1. Remove the optical drive.
2. Remove the base cover.
3. Remove the battery.
4. Remove the wireless card.
Procedure
1. Lift the latch and disconnect the display cable from its connector.
2. Peel off the tape that secures the display cable to the palm rest and keyboard assembly.
3. Note the display cable routing and remove the cable from its routing guides.
4. Remove the screws that secure the display hinges to the palm-rest and keyboard assembly.

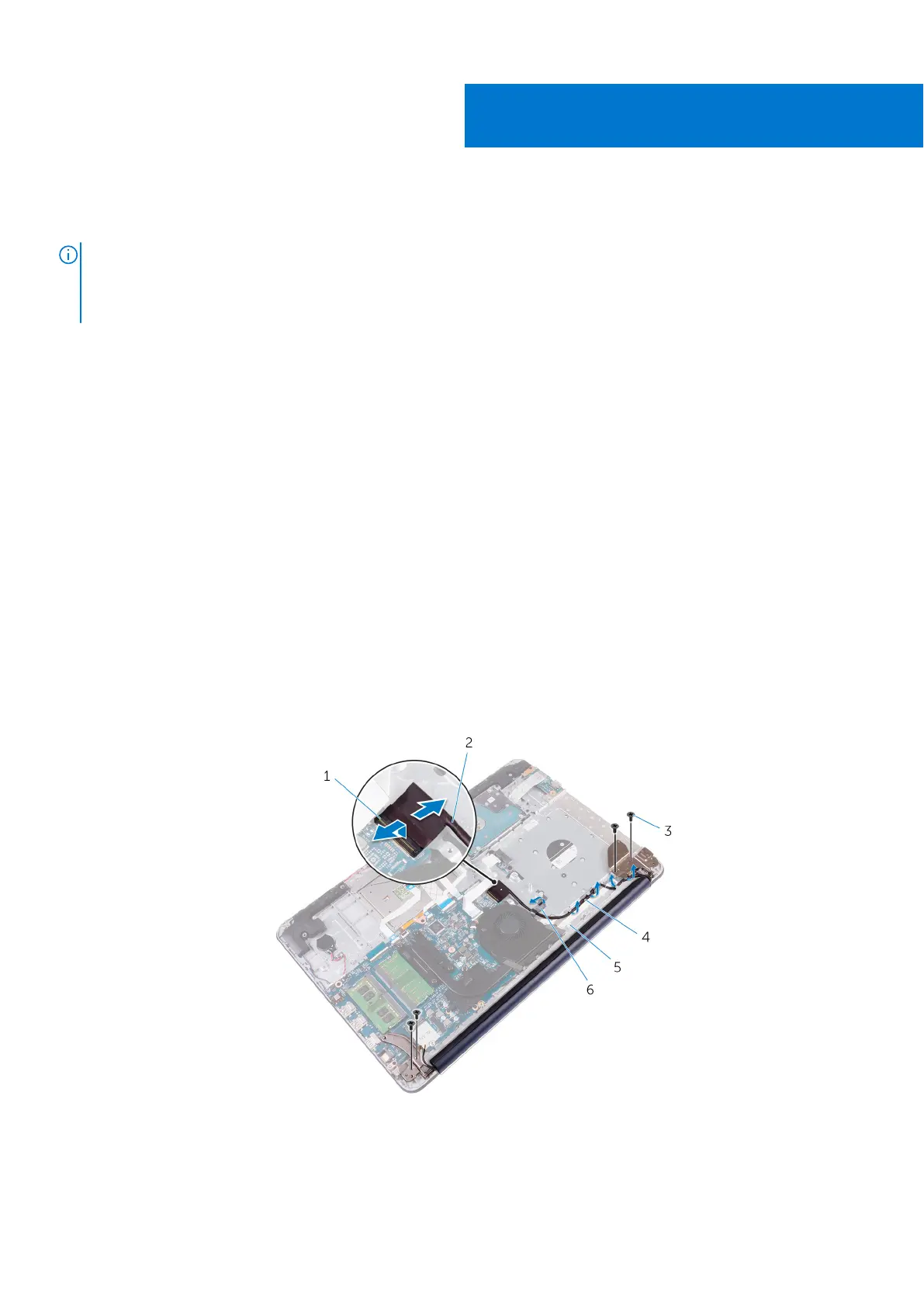

1.
latch 2. display cable
3. M2.5x5 screws (4) 4. routing guide
