5. palm rest and keyboard assembly 6. tape

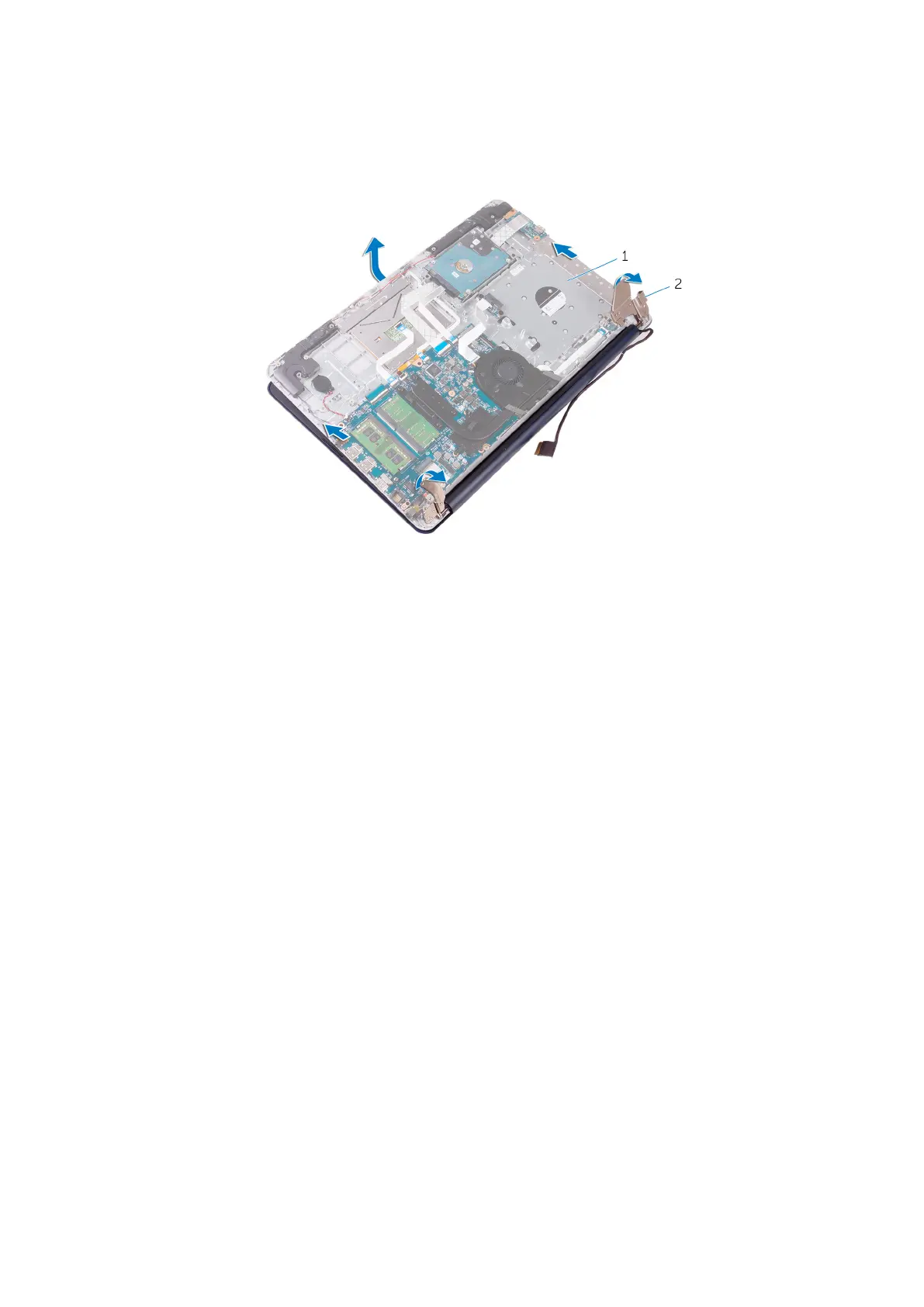

5. Lift the display hinges from the palm rest and keyboard assembly.

6. Slide and lift the palm rest and keyboard assembly.

a. palm rest and keyboard assembly

b. display hinges (2)
