Removing the power-button board
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Topics:
• Prerequisites
• Procedure
Prerequisites
1. Remove the optical drive.
2. Remove the base cover.
3. Remove the battery.
4. Remove the display assembly.
Procedure

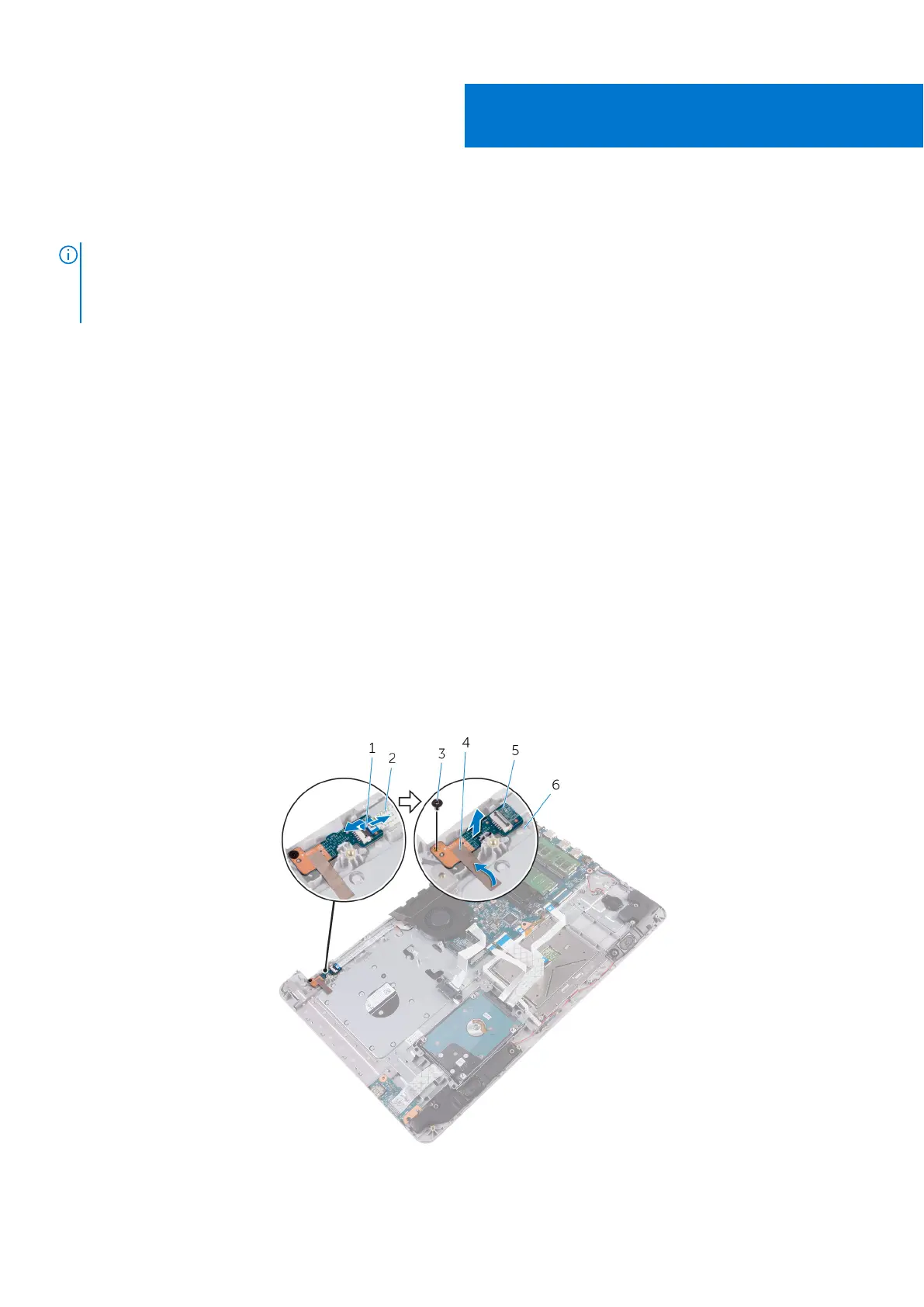

1. Lift the latch and disconnect the power-button board cable from the palm rest and keyboard assembly.
2. Remove the screw that secures the power-button board to the palm rest and keyboard assembly.
3. Peel off the tape that secures the power-button board to the palm rest and keyboard assembly.
4. Lift the power-button board off the palm rest and keyboard assembly.
1.
latch 2. power-button board cable
33
Removing the power-button board 59
