5. M2.5x5 screws (3)

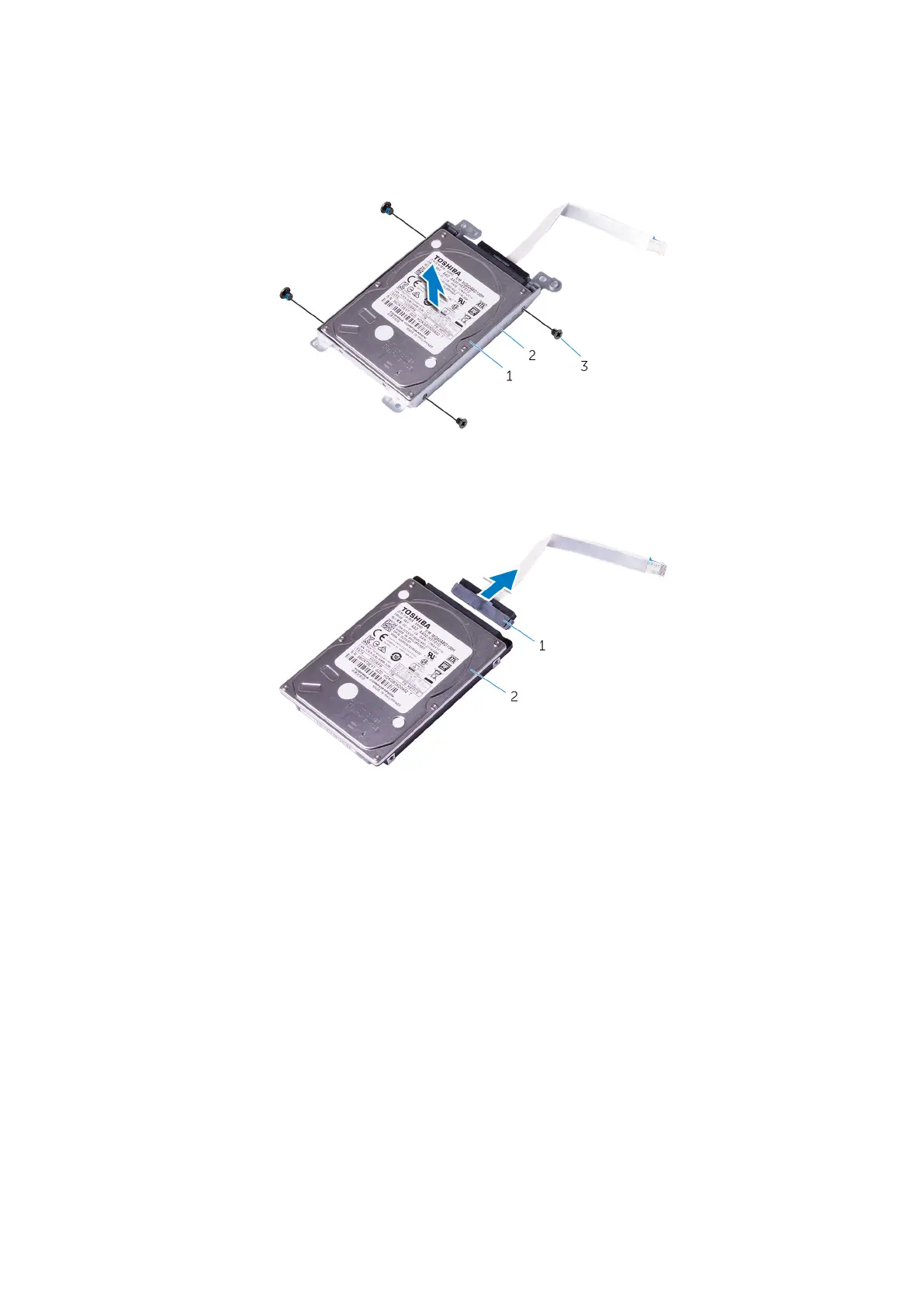

4. Remove the screws that secure the hard-drive bracket to the hard drive.
5. Lift the hard drive from the hard-drive bracket.
a. hard drive
b. hard-drive bracket
c. M3x3 screws (4)
6. Disconnect the interposer from the hard drive.
a. interposer
b. hard drive
Removing the hard drive
