Dell P32E - Page 63

To Next Page

To Previous Page

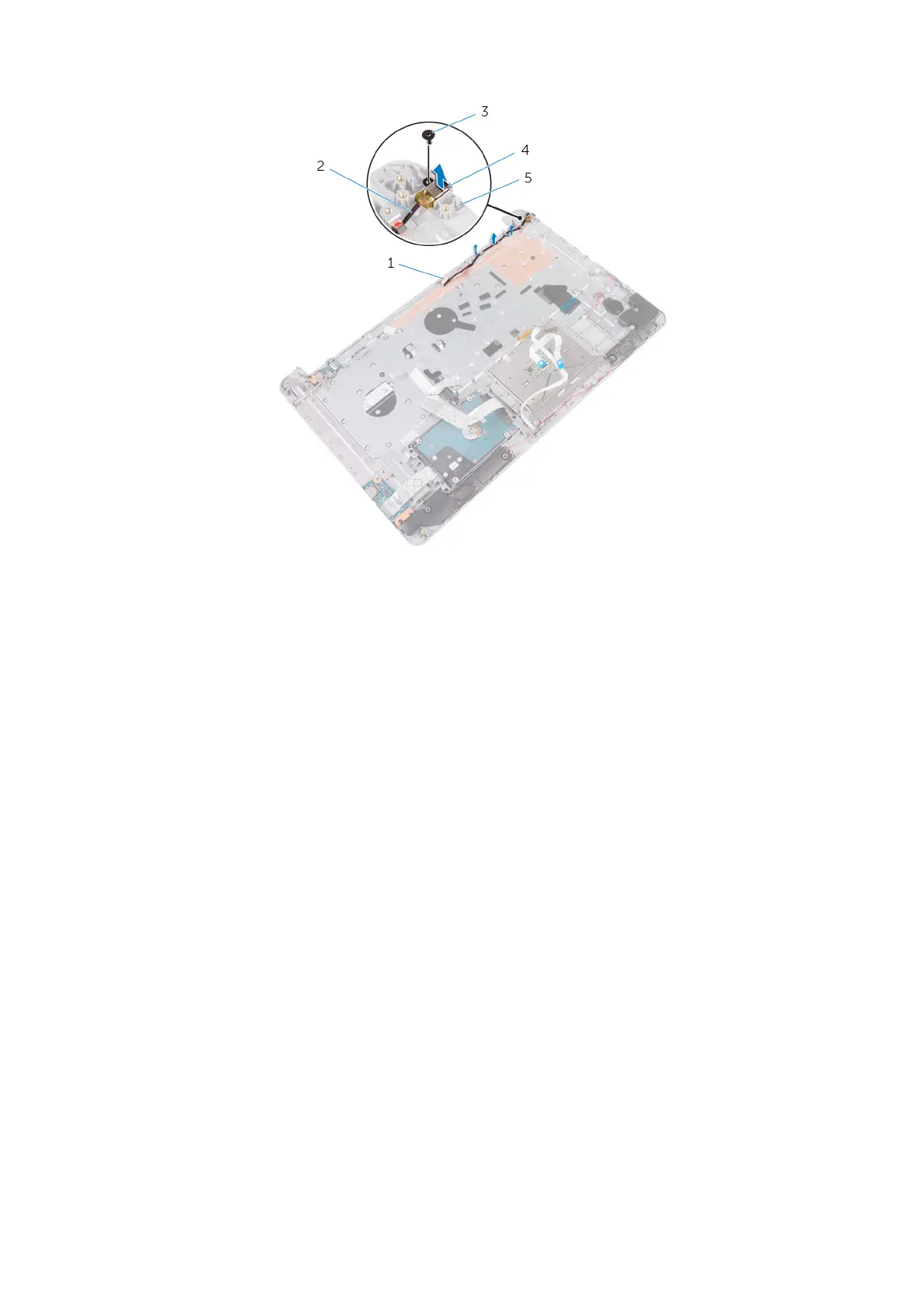

1. routing guide 2. power-adapter port cable

3. M2x3 screw 4. power-adapter port

5. palm rest and keyboard assembly

Removing the power-adapter port 63
