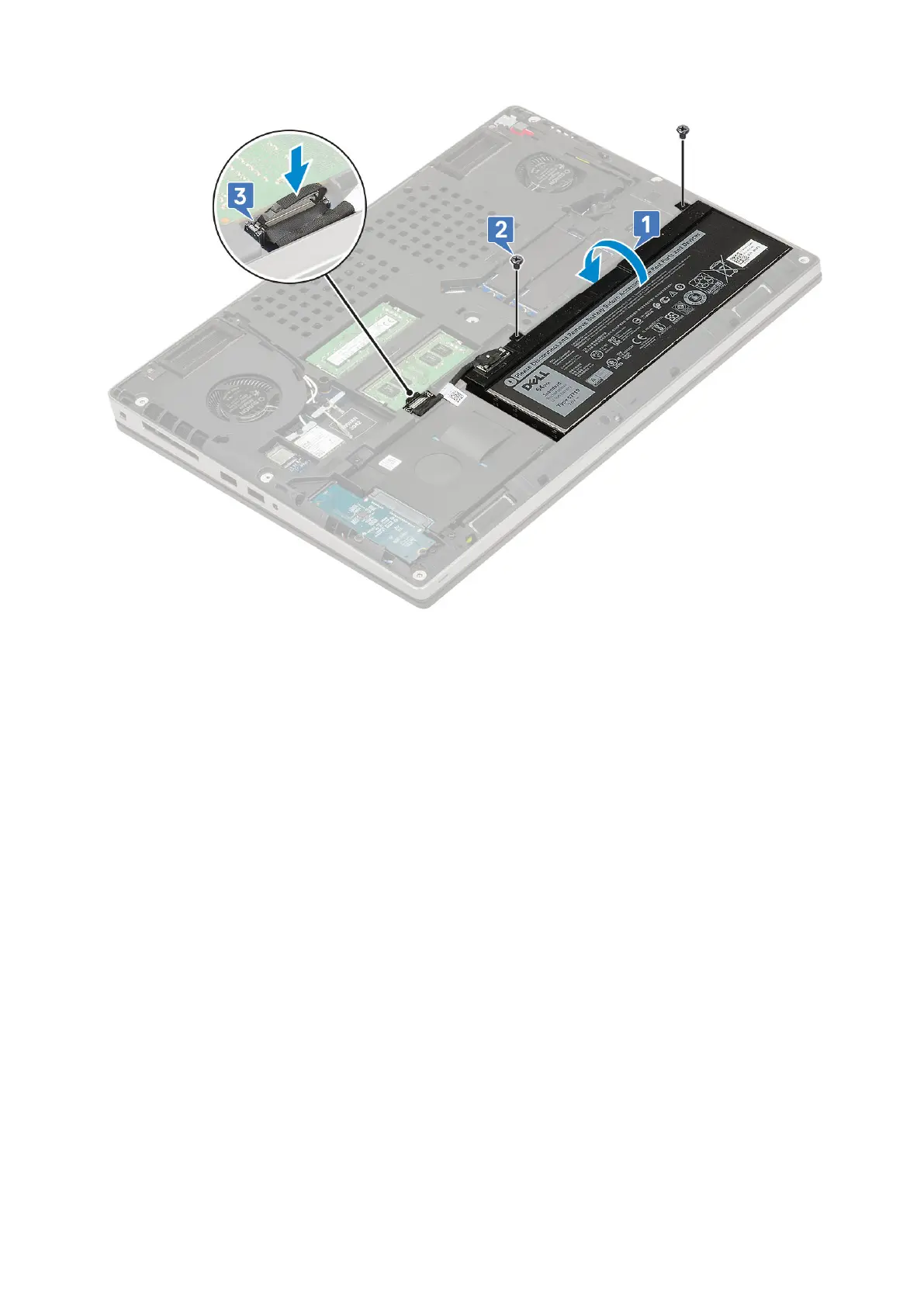

3. Install the:
a. base cover
b. SD card
4. Follow the procedure in After working inside your computer.
Hard drive
Removing the hard drive assembly
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. SD card
b. base cover
3. To remove hard drive assembly:
a. Remove the 4 (M2.5x3.0) screws that secure the hard drive assembly to the system [1].
b. Pull the tab on the hard drive assembly to disconnect the hard drive assembly from the hard drive connector [2].
Removing and installing components
23
