b. base cover
c. hard drive

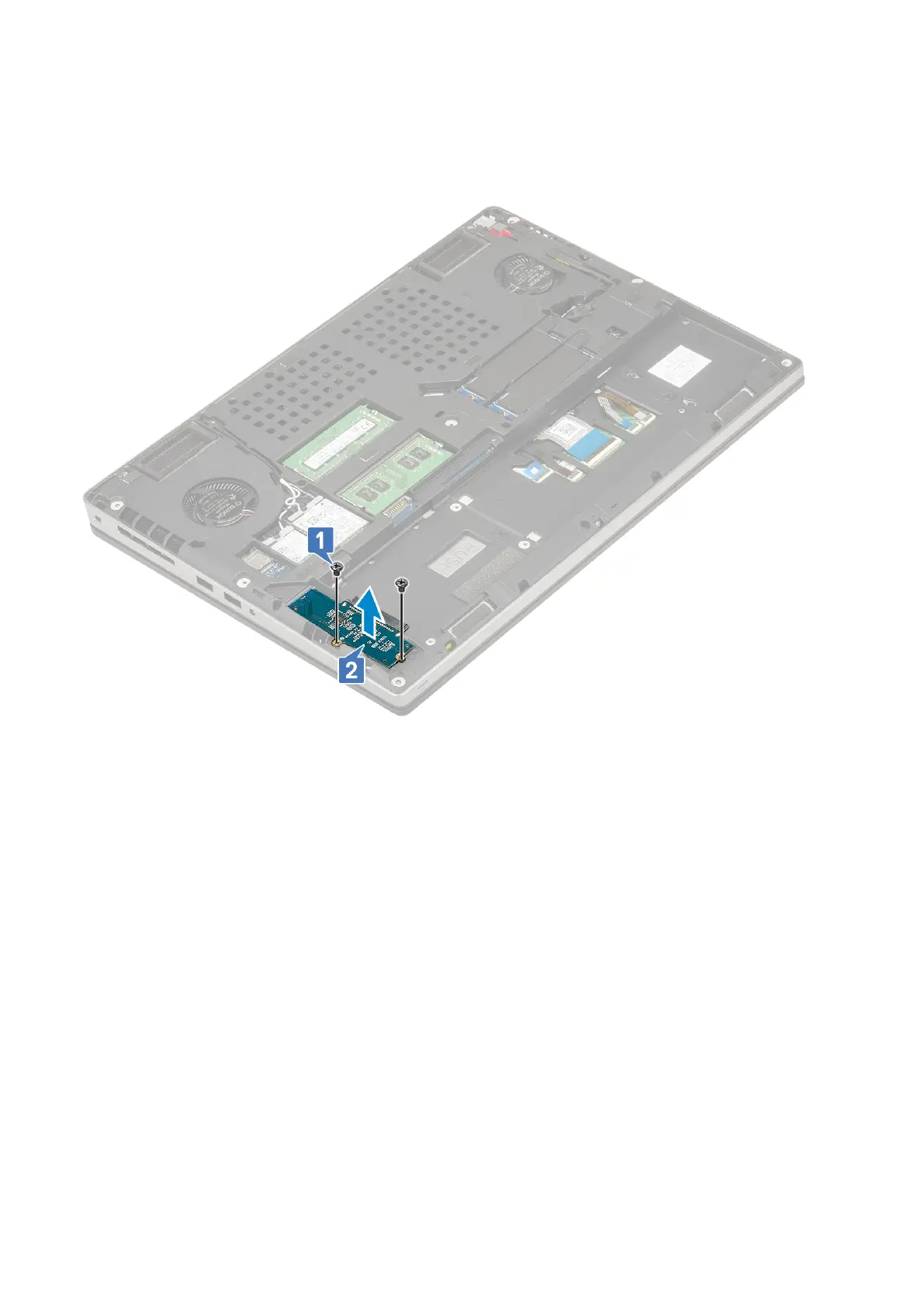

3. To remove the hard drive interposer board:
a. Remove the 2 (M2.0x3.0) screws that secure the hard drive interposer to the system board [1].
b. Remove the hard drive interposer board from the system [2].
Installing the hard drive interposer board
1. To install the hard drive interposer board:
a. Align the hard drive interposer board into its position on the system [1].
b. Replace the 2 (M2.0x3.0) screws to secure the hard drive interposer to the system board [2].
26
Removing and installing components
