k. display panel

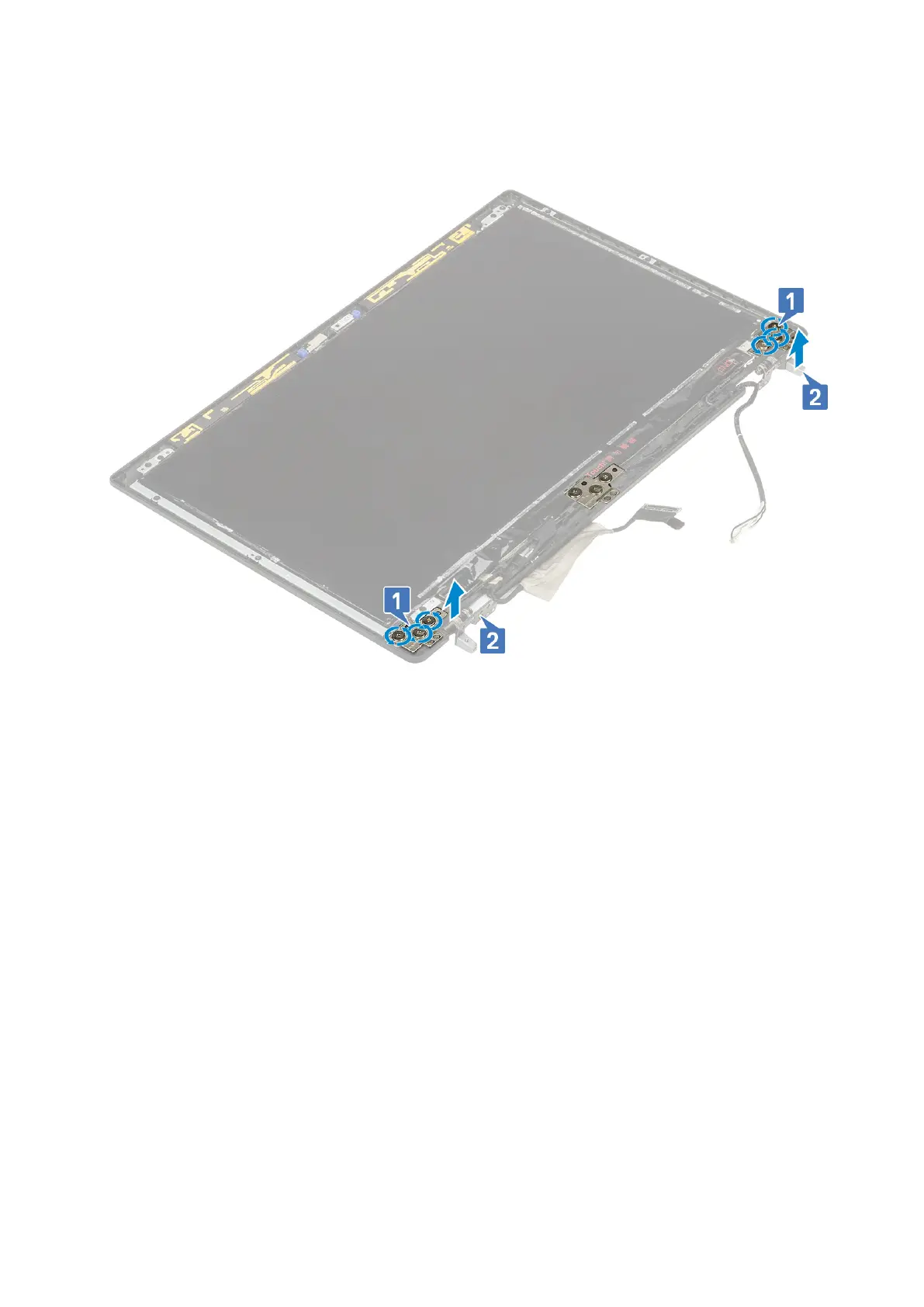

3. To remove display hinge:
a. Remove the 6 (M2.5x3.5) screws that secure the display hinges to the display assembly [1].
b. Remove the display hinges [2].
Installing the display hinge
1. To install display hinge:
a. Place the display hinge in its slot on the display assembly [1].
b. Replace the 6 (M2.5x3.5) screws to secure the display hinge to the display assembly [2].
88
Removing and installing components
