2. Install the:
a. palmrest
b. hard drive
c. keyboard
d. battery
e. base cover
f. SD card
3. Follow the procedure in After working inside your computer.
Heat sink assembly
Removing the heat sink assembly
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. SD card
b. base cover
c. battery
d. keyboard
e. hard drive
f. palmrest
3. To remove heat sink:

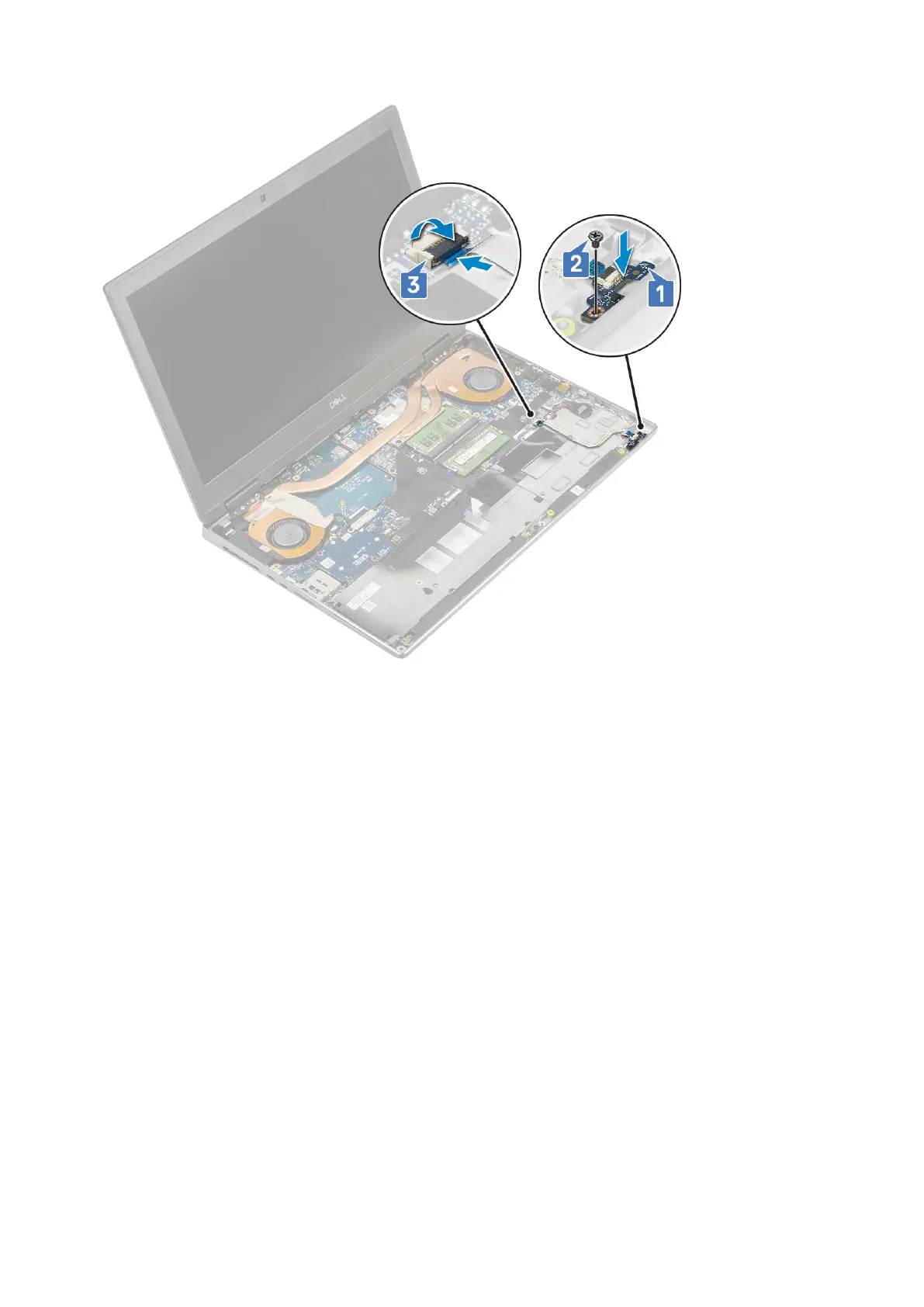

a. Remove the 2 (M2.0x3.0) screw that secures the eDP cable bracket to the system board [1].
b. Remove the eDP cable bracket from the system [2].
64
Removing and installing components
