Installing the Touchpad button

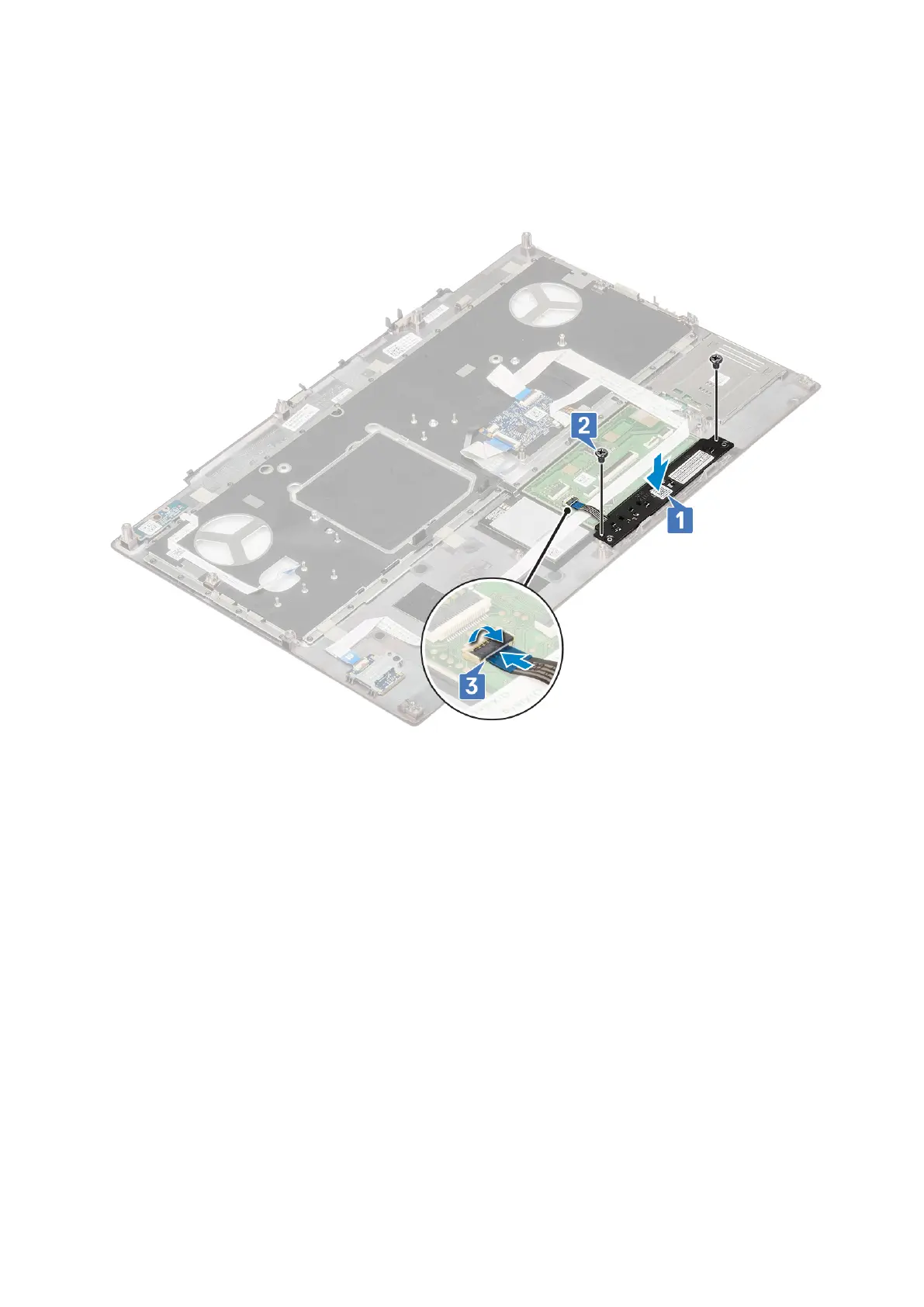

1. To install the touchpad button:
a. Place the touchpad button into its slot in the palmrest [1].
b. Replace the 2 (M2.0x3.0) screws to secure the touchpad button to the palmrest [2].
c. Connect the touchpad button cable to the connector in the touchpad [3].
2.
Install the:
a. palmrest
b. hard drive
c. keyboard
d. battery
e. base cover
f. SD card
3. Follow the procedure in After working inside your computer.
Smart card cage
Removing the smart card cage
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. SD card
b. base cover
c. battery
d. keyboard
e. hard drive
f. palmrest
62
Removing and installing components
