h. palmrest
i. display assembly
j. display bezel
k. display panel
l. display hinge

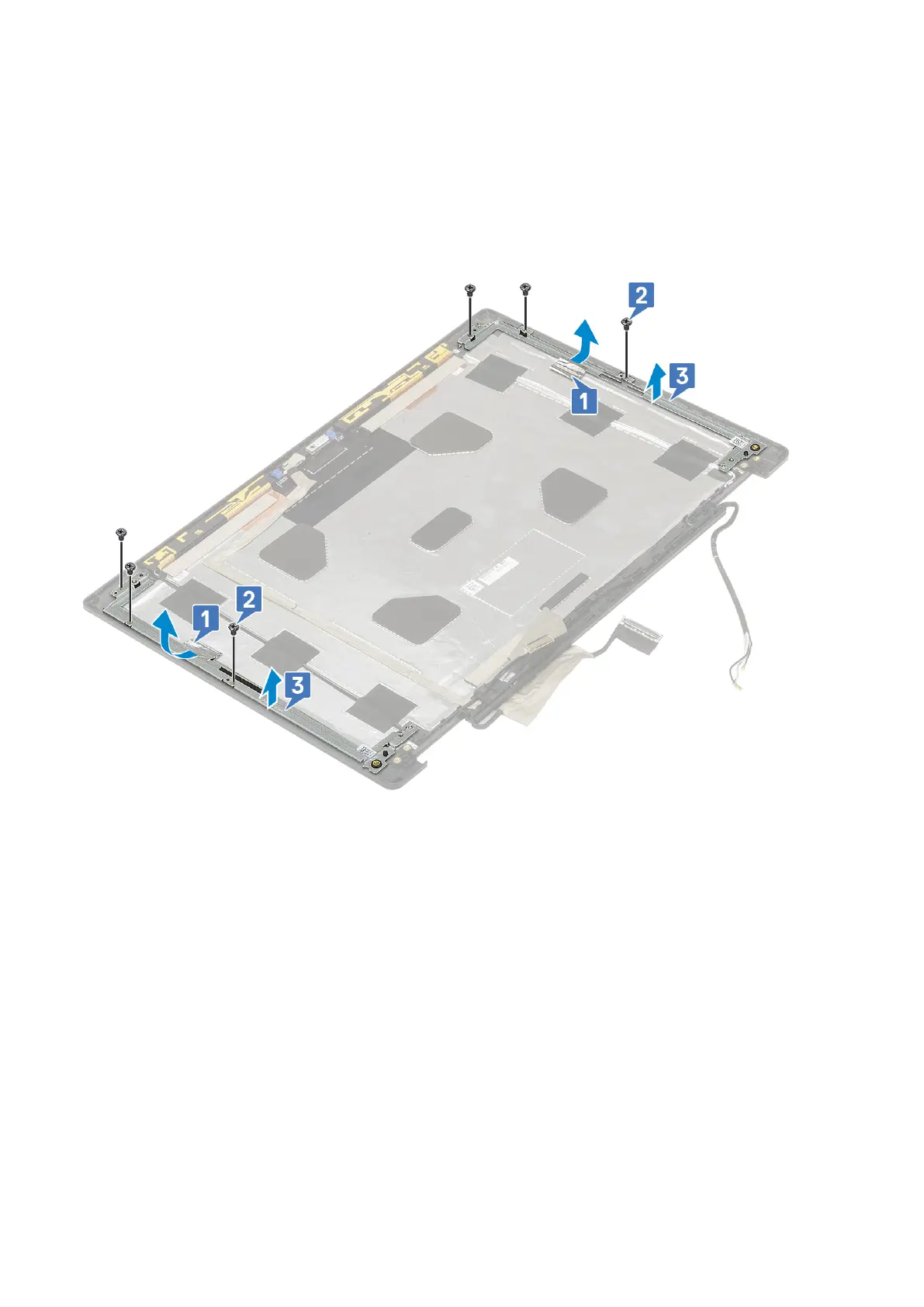

3. To remove display bracket:
a. Peel the adhesive tape that covers the display support bracket [1].
b. Remove the 6 (M2.0x3.0) screws that secure the display support brackets to the display cover [2].
c. Remove the display support brackets from the display cover [3].
Installing the display support bracket
1. To install the display support bracket:
a. Place the display brackets onto its slot on the display cover [1].
b. Replace the 6 (M2.0x3.0) screws to secure the display bracket to the display cover [2].
c. Affix the adhesive tape to cover the display support bracket [3].
98
Removing and installing components
