Replacing the display cable
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Identifier GUID-9DD6D749-47BB-452D-ACF9-E5E4BE938A8B
Status Released
Procedure

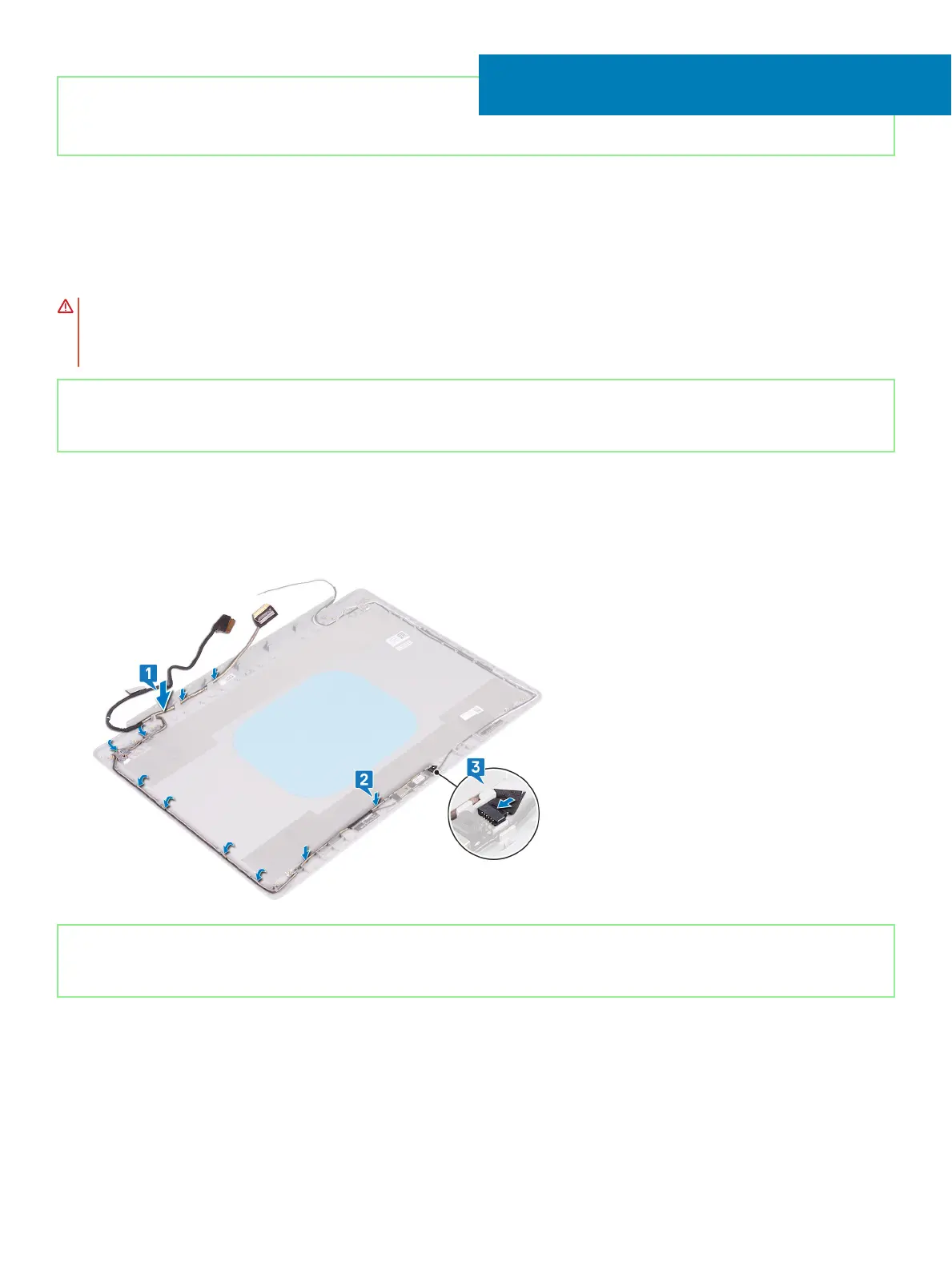

1 Route the display cable along the routing guides, starting from the bottom of the display (near the hinges).
2 Route the rest of the display cable along the routing guides on the left side of the display back-cover and antenna assembly.
3 Slide the camera cable into the connector on the camera module to secure the cable.
Identifier GUID-989E88A1-A495-4EB8-8F21-AFB10E8B0B2C
Status Released
Post-requisites
1 Replace the display hinges.
2 Replace the display panel.
3 Replace the display bezel.
4 Replace the display assembly.
51
Replacing the display cable 103
