Replacing the fan
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Identifier GUID-B8117E90-137E-4338-862F-57FD91F70AB5
Status Released
Procedure

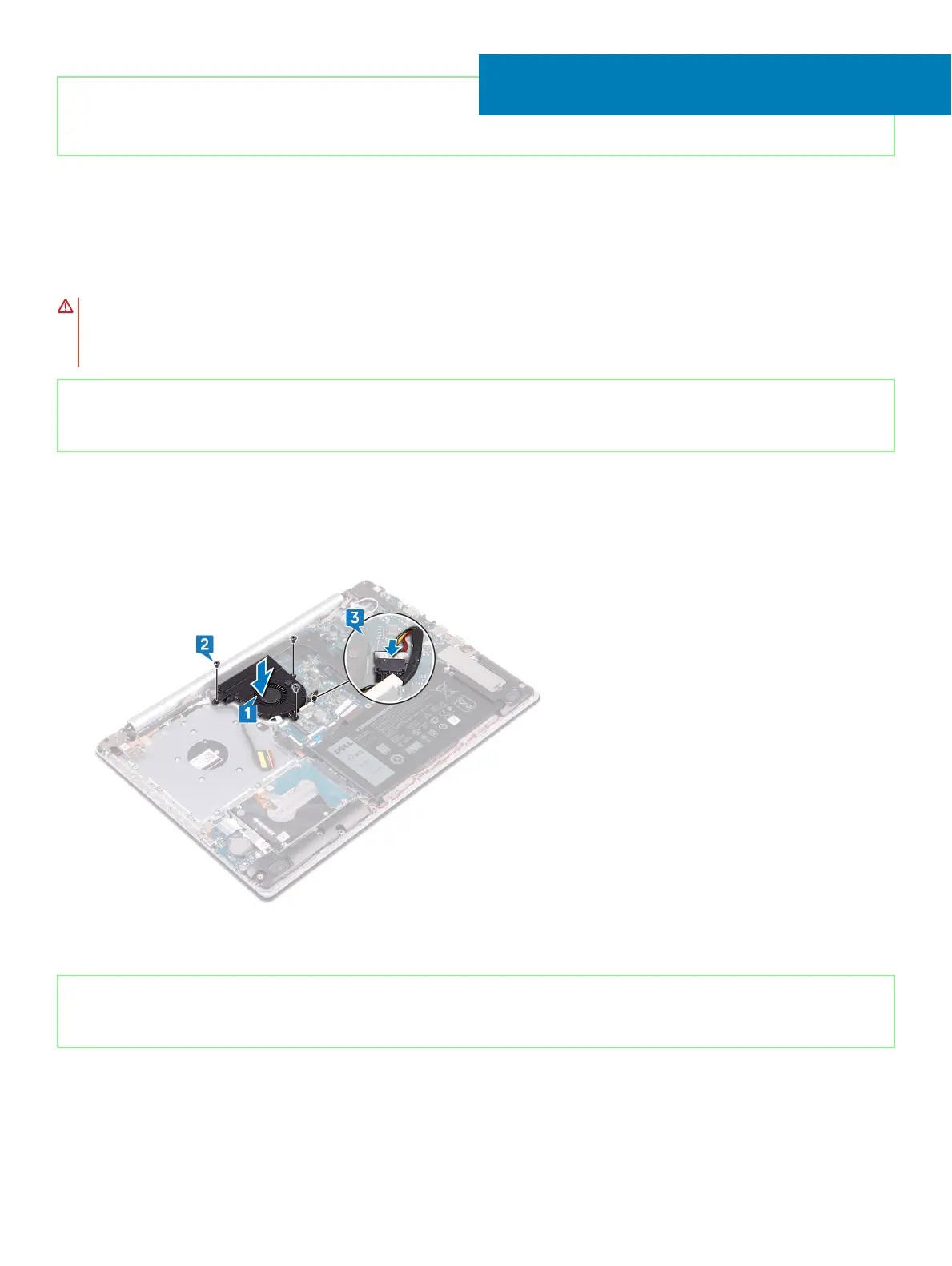

1 Align the screw holes on the fan with the screw holes on to the palm rest and keyboard board assembly.
2 Replace the three screws (M2.5x5) that secure the fan to the palm rest and keyboard board assembly.
3 Connect the fan cable to the system board.
4 Route the display cable through the routing guides on the fan.
5 Connect the display cable to its connector on system board and close the latch to secure the cable.
Identifier GUID-029EDBD3-3EED-4DA1-B2F8-A3A97D2E2804
Status Released
Post-requisites
Replace the base cover.
