Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then
place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is restored when
the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when replacing a
component.
NOTE: Screw color may vary with the conguration ordered.

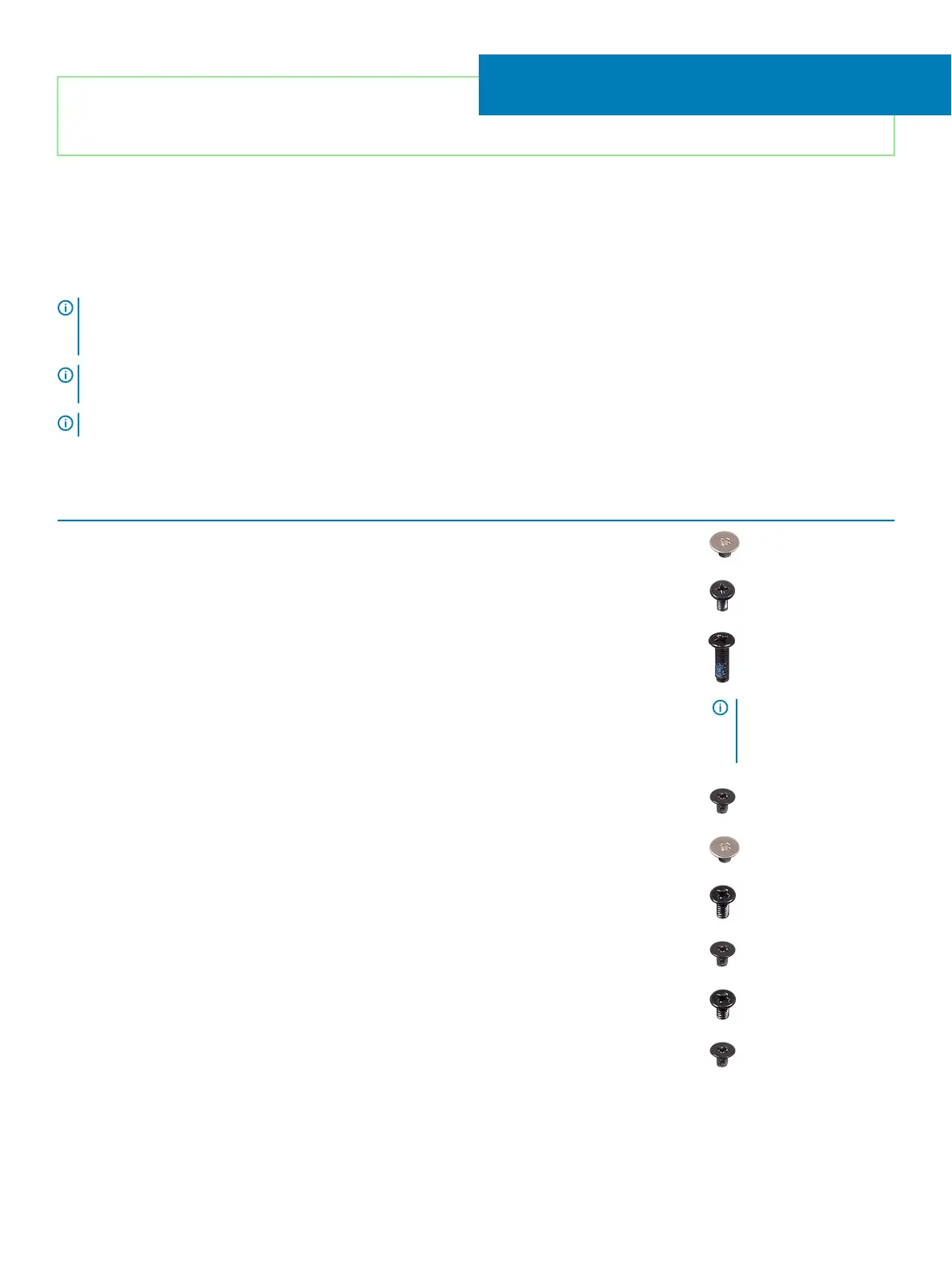

Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Base cover Palm rest and keyboard
assembly
M2x2 2
Base cover Palm rest and keyboard
assembly
M2x4 1
Base cover Palm rest and keyboard
assembly
M2.5x7 6
NOTE: Screw color
may vary depending
on the conguration
ordered.
Battery Palm rest and keyboard
assembly
M2x3 4
Display panel Display back-cover and
antenna assembly
M2x2 4
Fan Palm rest and keyboard
assembly
M2.5x5 3
Hard-drive assembly Palm rest and keyboard
assembly
M2x3 4
Hard-drive bracket Hard drive M3x3 4
Heat sink System board M2x3 3
