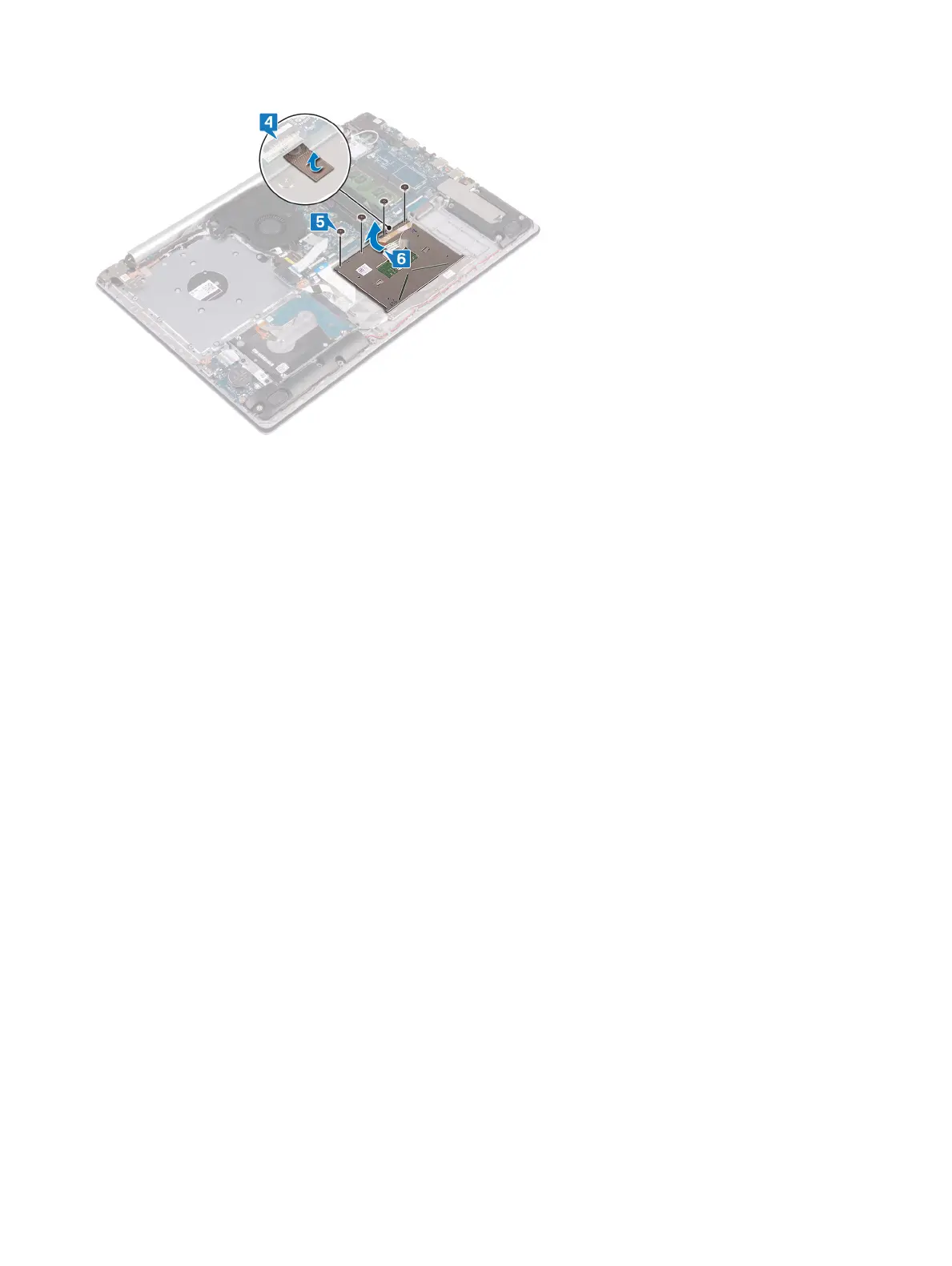

5 Remove the four screws (M2x2) that secure the touchpad to the palm rest and keyboard assembly.

6 Slide and lift the touchpad o the palm rest and keyboard assembly.

48 Removing the touchpad
