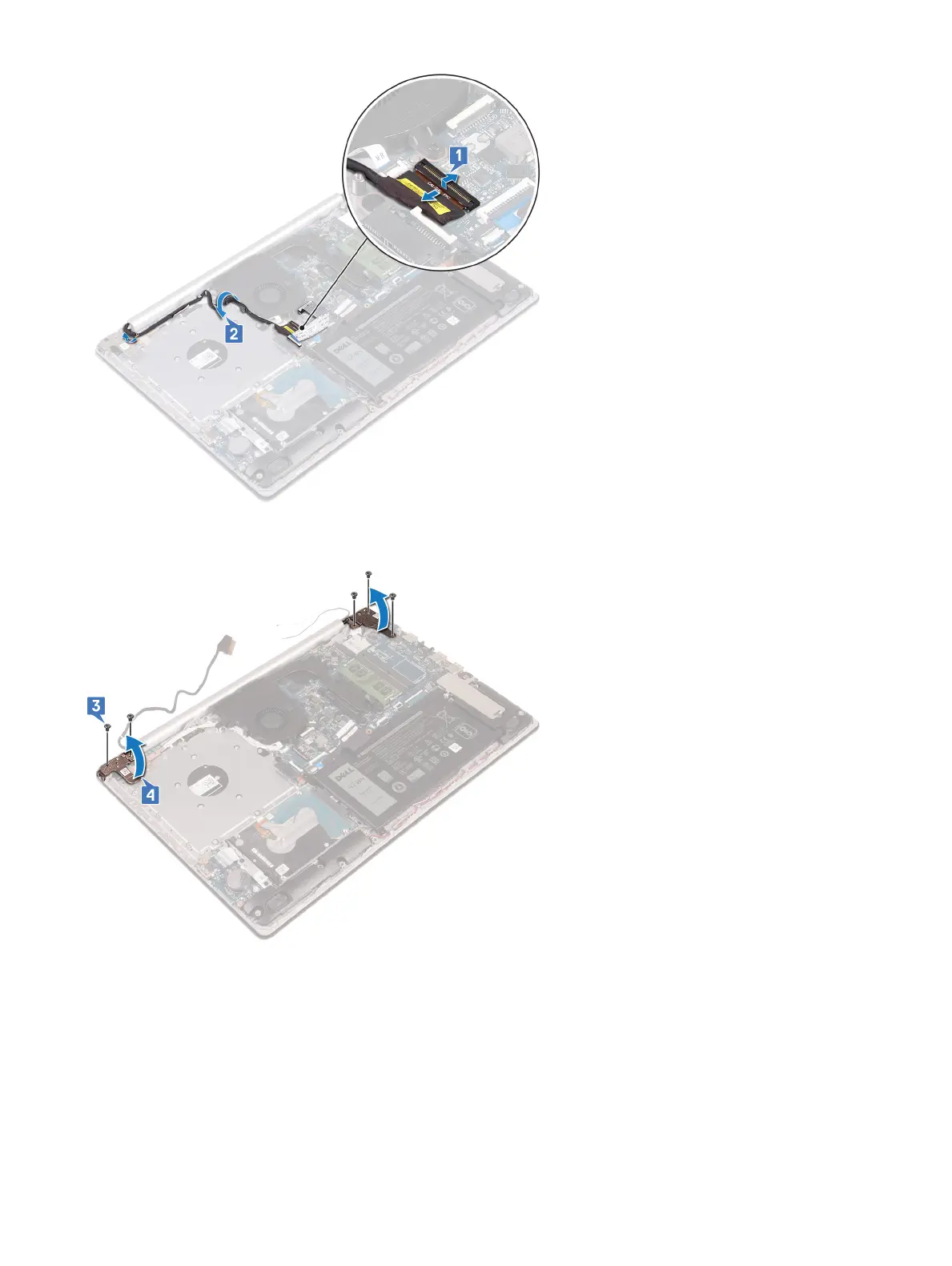

3 Remove the six screws (M2.5x5) that secure the left and right hinges to the system board and palm rest and keyboard assembly.
4 Open the hinges.
5 Lift the palm rest and keyboard assembly at an angle.
6 Slide and remove the palm rest and keyboard assembly o the display assembly.
Removing the display assembly
61
