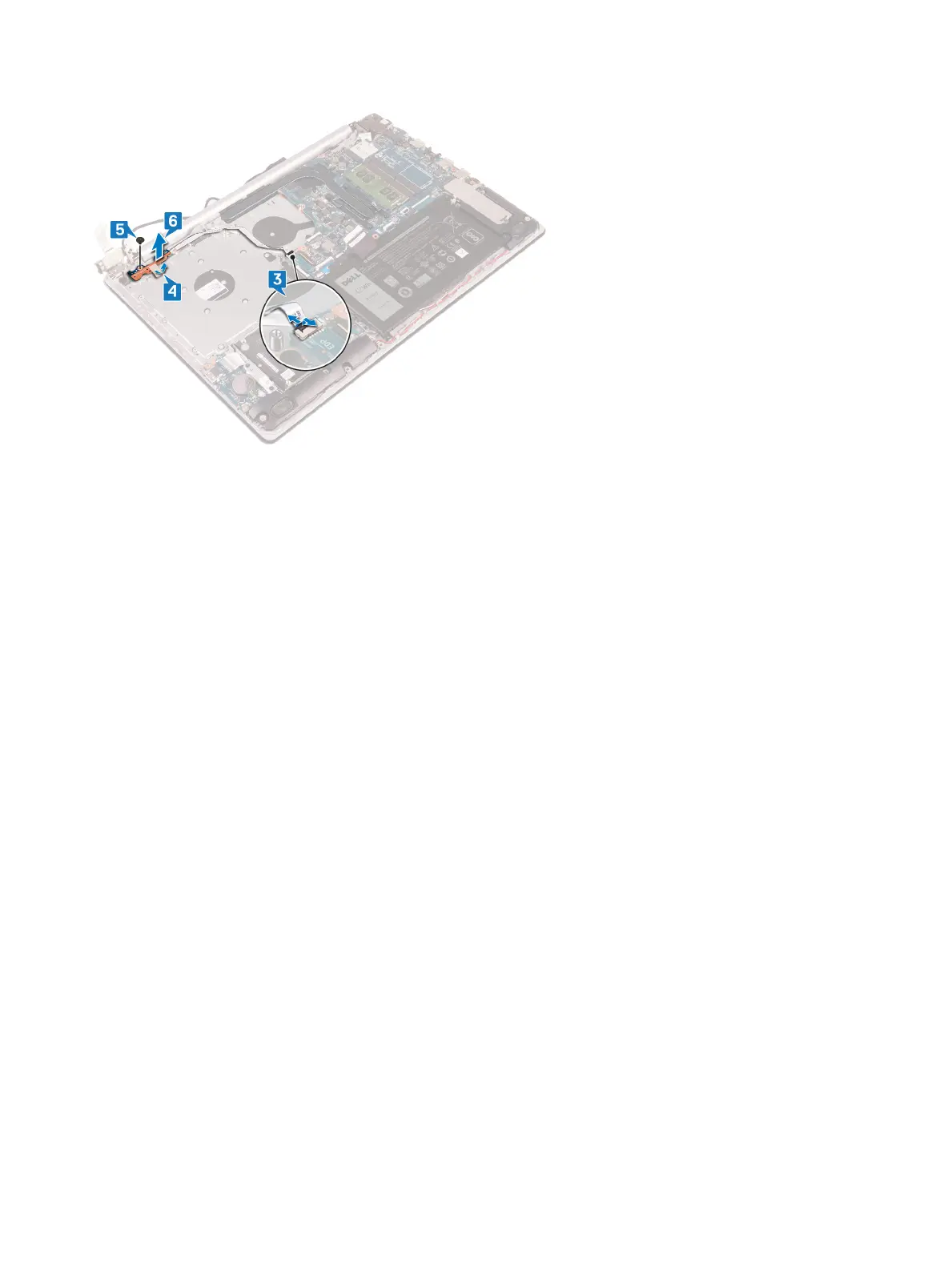

5 Remove the screw (M2x3) that secures the power-button board to the palm rest and keyboard assembly.

6 Lift the power-button board, along with the cable, o the palm rest and keyboard assembly.

70 Removing the power-button board
