Dell P75F - Page 74

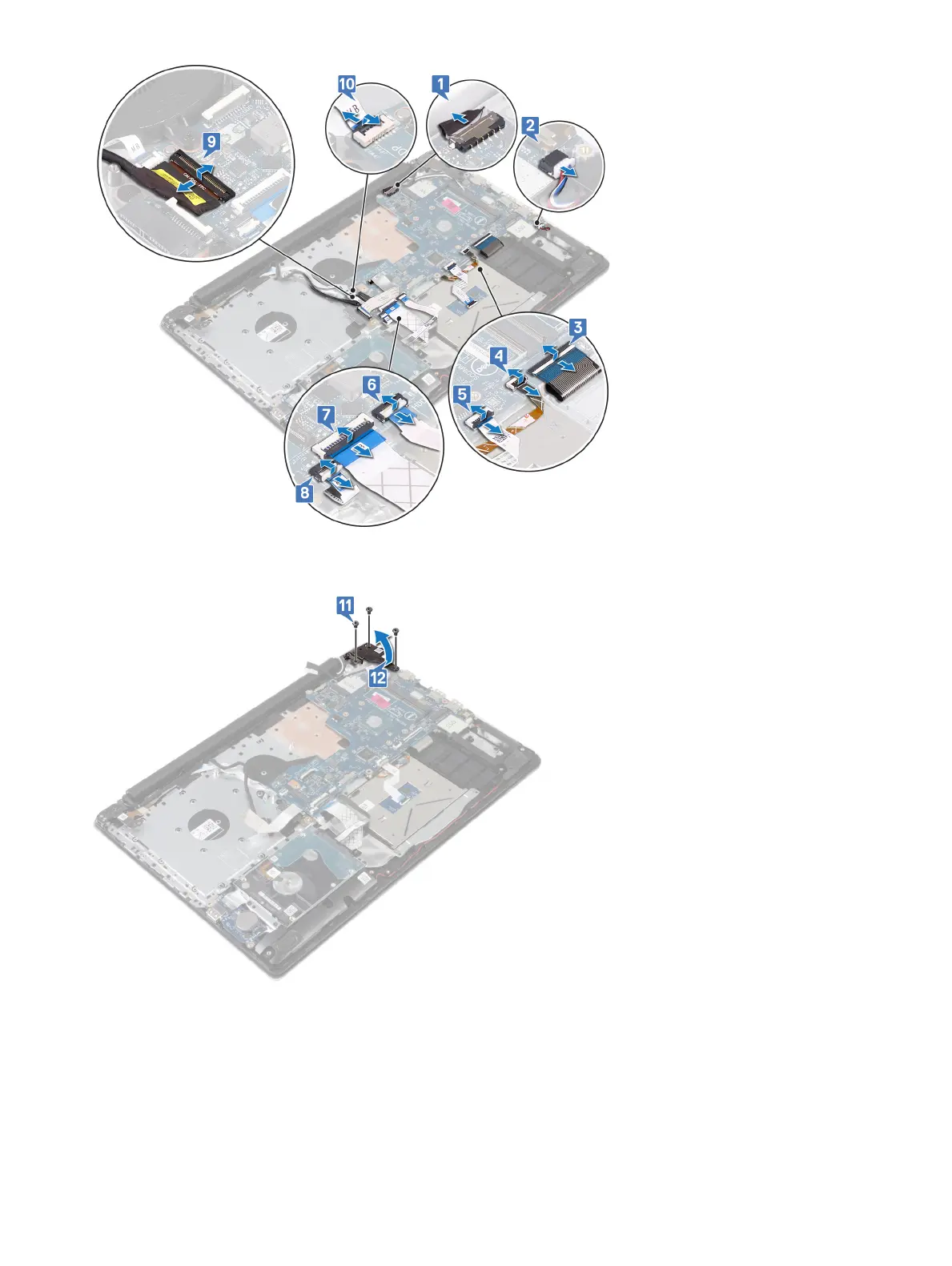

11 Remove the three screws (M2.5x5) that secure the right hinge to the system board.
12 Open the right hinge.
13 Remove the screw (M2x4) that secures the system board to palm rest and keyboard assembly.
14 Lift the system board o the palm rest and keyboard assembly.
74
Removing the system board
