Dell PowerEdge R230 User Manual

Convention Status Condition
C Link indicator is amber The NIC is connected to a valid network at less than its
maximum port speed.
D Activity indicator is ashing green Network data is being sent or received.
Internal dual SD module indicator codes
The Internal Dual SD module (IDSDM) provides you with a redundant SD card solution. You can congure the IDSDM for storage or
as the OS boot partition. The IDSDM card oers the following features:
• Dual card operation — maintains a mirrored conguration by using SD cards in both the slots and provides redundancy.
NOTE: When the Redundancy option is set to Mirror Mode in the Integrated Devices screen of System Setup, the
information is replicated from one SD card to another.
• Single card operation — single card operation is supported, but without redundancy.
The following table describes the IDSDM indicator codes:
Table 8. IDSDM indicator codes
Convention IDSDM indicator code Description
A Green Indicates that the card is online.
B Flashing green Indicates rebuild or activity.
C Flashing amber Indicates card mismatch or that the card has failed.
D Amber Indicates that the card is oine, has failed, or is write-
protected.
E Not lit Indicates that the card is missing or is booting.
iDRAC Direct LED indicator codes
The iDRAC Direct LED indicator lights up to indicate that the port is connected and is being used as a part of the iDRAC subsystem.
NOTE: The iDRAC Direct LED indicator does not turn on when the USB port is used in the USB mode.

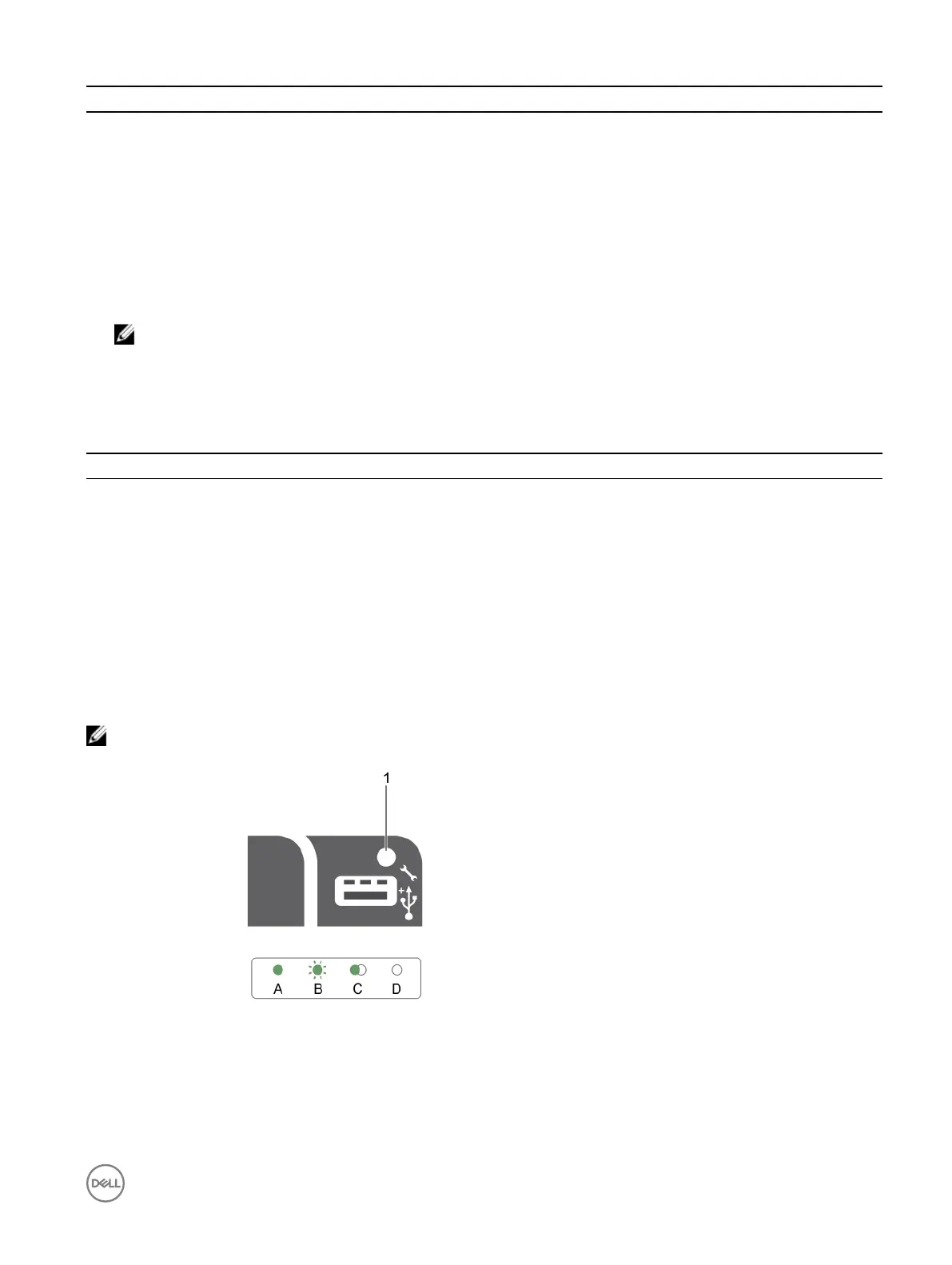

Figure 9. iDRAC Direct LED indicator
1.
iDRAC Direct status indicator
The iDRAC Direct LED indicator table describes iDRAC Direct activity when conguring iDRAC Direct by using the management port
(USB XML Import).
19

Dell PowerEdge R230 Specifications

General

HDD speed	7200 RPM
RAID levels	0, 1, 5, 6, 10, 50
RAID support	Yes
HDD interface	Serial ATA III
SSD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD±RW
Supported HDD sizes	3.5 \
Total storage capacity	1000 GB
Maximum storage capacity	- TB
Number of HDDs installed	1
Number of HDDs supported	4
Processor cache	8 MB
Processor model	E3-1220V6
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel® C236
Processor frequency	3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor boost frequency	3.5 GHz
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	11
Memory slots	4x DIMM
Internal memory	8 GB
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 8 GB
Performance management	IPMI 2.0, Dell OpenManage
Power supply	250 W
Power supply input frequency	50 - 60 Hz
Redundant power supply (RPS) support	-
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 (x64) Red Hat Enterprise Linux VMware Vsphere 2015 SUSE Linux Enterprise Server
Chassis type	Rack (1U)
LAN controller	Broadcom BCM5720
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	PER230_EL0002A_Q1FY18_FG0010_BTP

Weight and Dimensions

Depth	495 mm
Width	434 mm
Height	42.8 mm
Weight	8770 g
