Dell PowerEdge R230 User Manual

NOTE: You must install a ller bracket over an empty expansion card slot to maintain Federal Communications
Commission (FCC) certication of the system. The brackets also keep dust and dirt out of the system and aid in
proper cooling and airow inside the system.

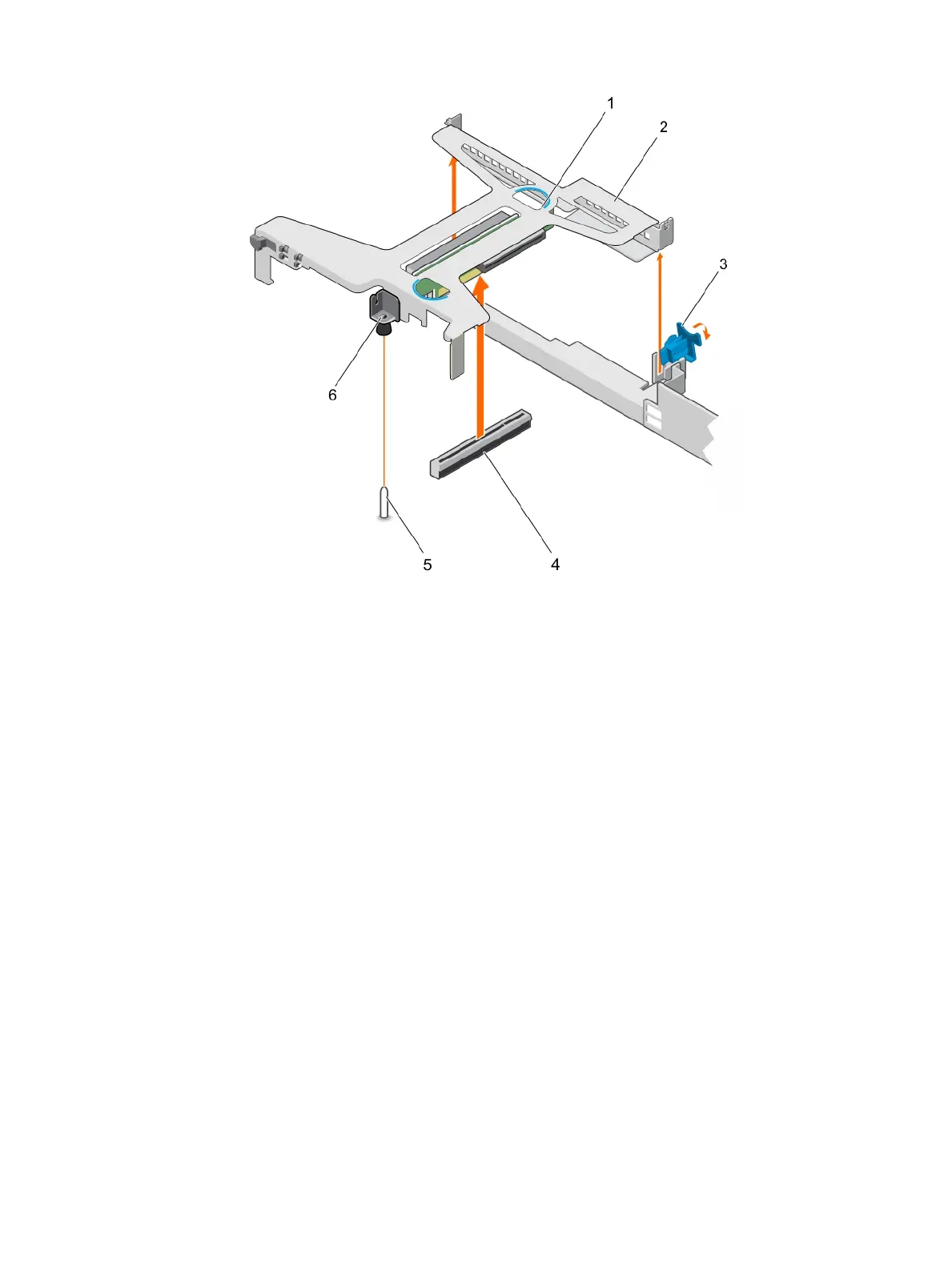

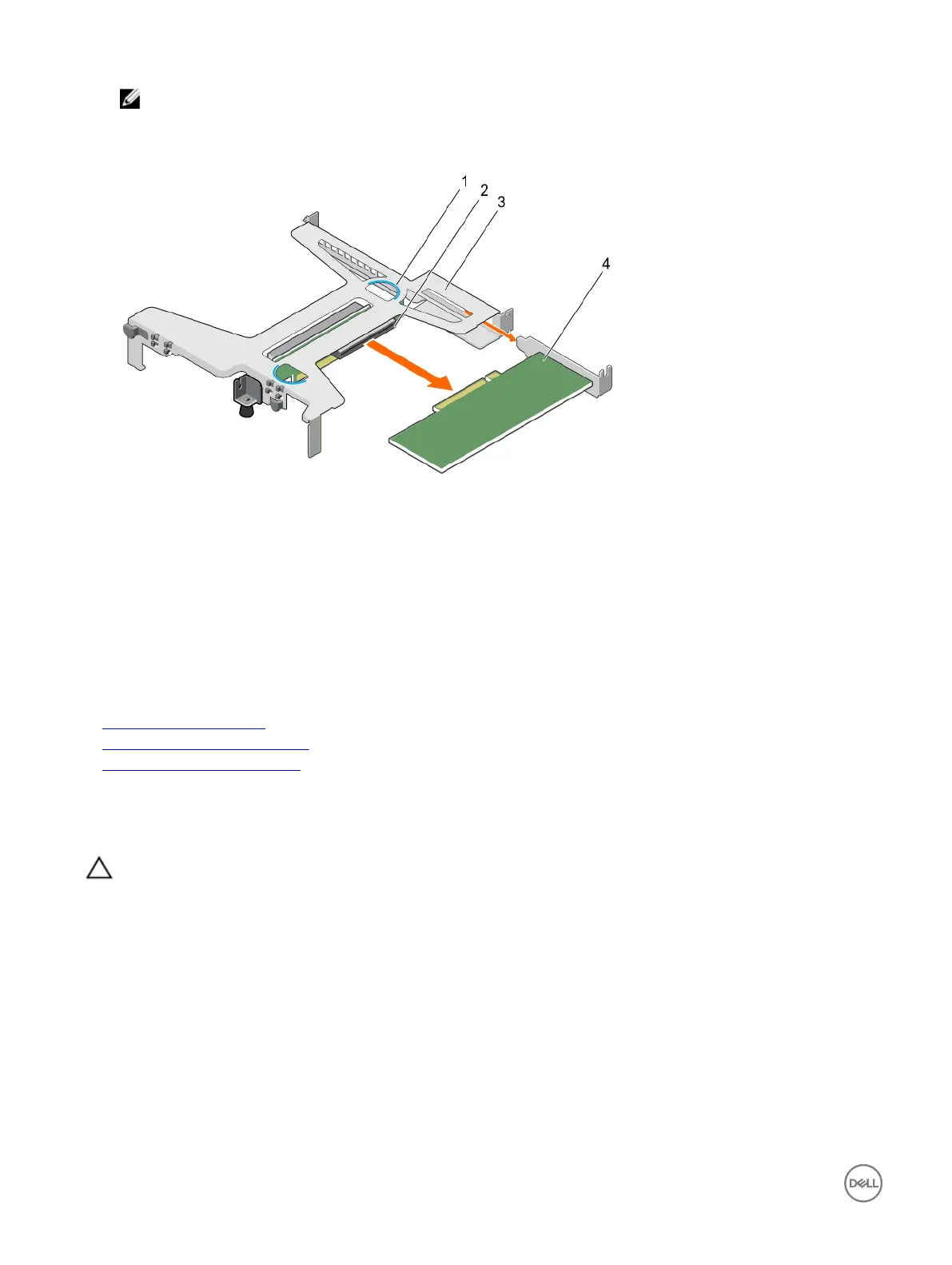

Figure 57. Removing the expansion card from the expansion card riser
1. touch point (2) 2. expansion card riser connector
3. expansion card riser 4. expansion card
Next steps
1. Install the ller bracket or expansion card, if applicable.
2. Install the expansion card riser
3. Follow the procedure listed in the After working inside your system section.
Related links
Installing an expansion card
Removing the expansion card riser
Installing the expansion card riser
Installing an expansion card
Prerequisites
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and
simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support
team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety
instructions that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
3. Remove the expansion card riser.
4. If installed, remove the ller bracket.
Steps
1. Locate the expansion card connector on the riser.
2. Holding the expansion card by its edges, position the card so that the card connector aligns with the connector on the
expansion card riser.
3. Insert the card connector into the expansion card riser connector until the card is rmly seated.
96

Dell PowerEdge R230 Specifications

General

HDD speed	7200 RPM
RAID levels	0, 1, 5, 6, 10, 50
RAID support	Yes
HDD interface	Serial ATA III
SSD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD±RW
Supported HDD sizes	3.5 \
Total storage capacity	1000 GB
Maximum storage capacity	- TB
Number of HDDs installed	1
Number of HDDs supported	4
Processor cache	8 MB
Processor model	E3-1220V6
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel® C236
Processor frequency	3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor boost frequency	3.5 GHz
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	11
Memory slots	4x DIMM
Internal memory	8 GB
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 8 GB
Performance management	IPMI 2.0, Dell OpenManage
Power supply	250 W
Power supply input frequency	50 - 60 Hz
Redundant power supply (RPS) support	-
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 (x64) Red Hat Enterprise Linux VMware Vsphere 2015 SUSE Linux Enterprise Server
Chassis type	Rack (1U)
LAN controller	Broadcom BCM5720
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	PER230_EL0002A_Q1FY18_FG0010_BTP

Weight and Dimensions

Depth	495 mm
Width	434 mm
Height	42.8 mm
Weight	8770 g
