Dell PowerEdge R230 User Manual

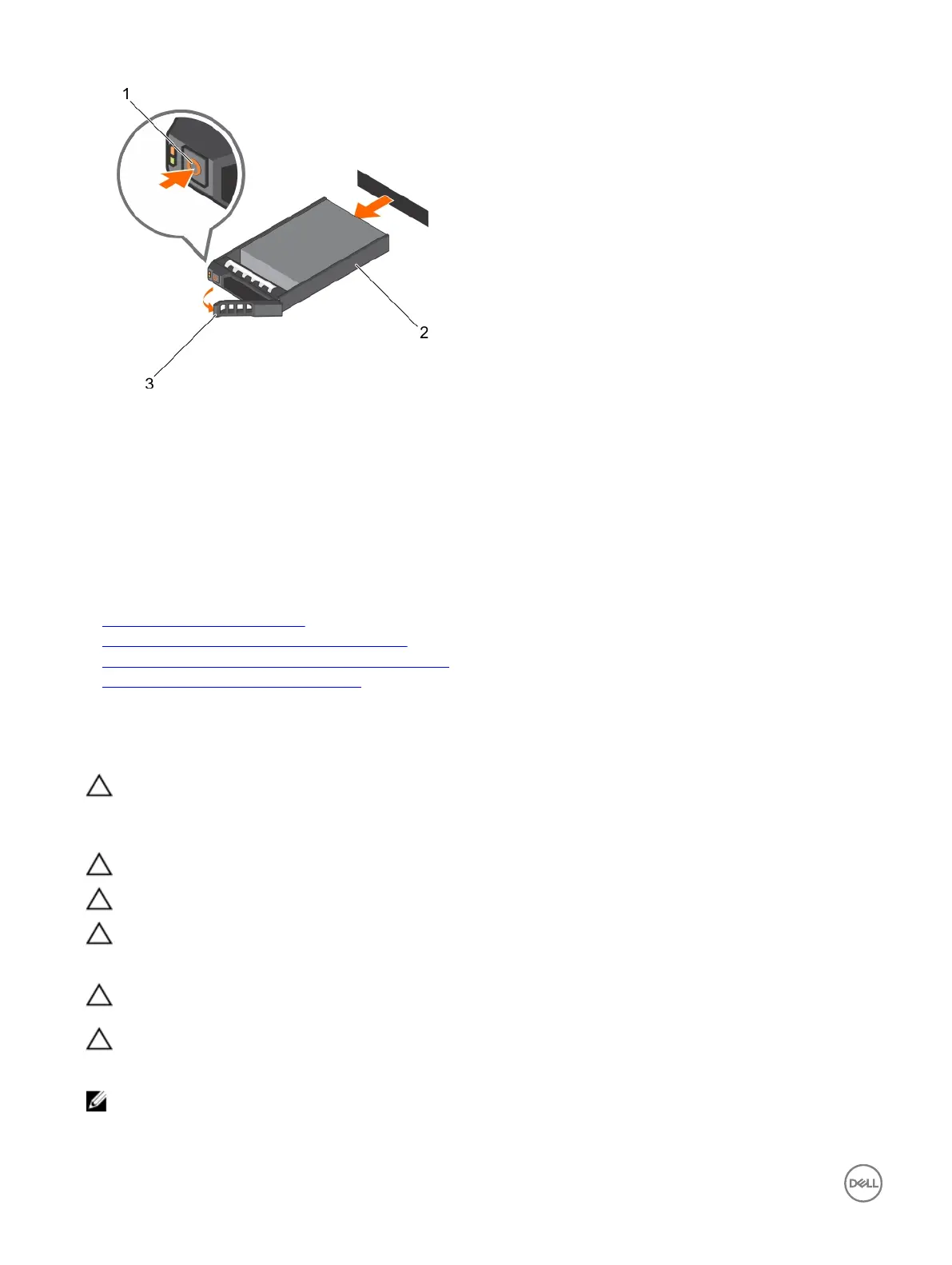

Figure 34. Removing a hot swappable hard drive or SSD
1. release button 2. hard drive carrier
3. hard drive carrier handle
Next steps
1. If you are not replacing the hard drive immediately, insert a hard drive carrier blank in the empty hard drive slot, or install a hard
drive carrier.
2. If removed, install the front bezel.
Related links
Removing the optional front bezel
Installing a 2.5-inch hot swappable hard drive blank
Installing a 3.5-inch hot swappable hard drive carrier blank
Installing a hot swappable hard drive carrier

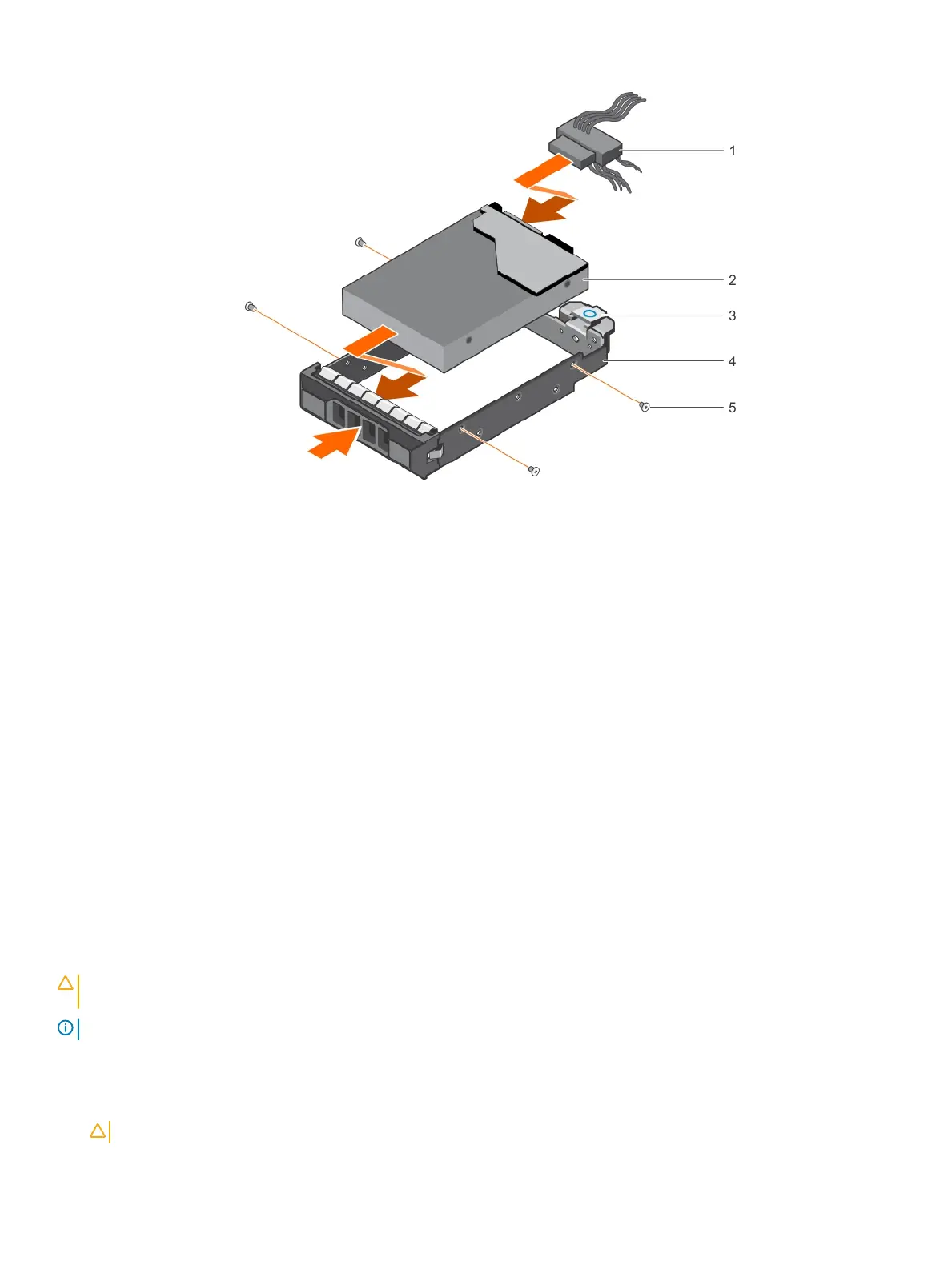

Installing a hot swappable hard drive carrier
Prerequisites
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and
simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support
team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety
instructions that are shipped with your product.
CAUTION: Use only hard drives that have been tested and approved for use with the hard drive backplane.
CAUTION: Combining SAS and SATA hard drives in the same RAID volume is not supported.
CAUTION: When installing a hard drive, ensure that the adjacent drives are fully installed. Inserting a hard drive carrier
and attempting to lock its handle next to a partially installed carrier can damage the partially installed carrier's shield
spring and make it unusable.
CAUTION: To prevent data loss, ensure that your operating system supports hot-swap drive installation. See the
documentation supplied with your operating system.
CAUTION: When a replacement hot swappable hard drive is installed and the system is powered on, the hard drive
automatically begins to rebuild. Make absolutely sure that the replacement hard drive is blank or contains data that you
wish to have over-written. Any data on the replacement hard drive is immediately lost after the hard drive is installed.
NOTE: Hot swappable hard drives are supplied in hot swappable hard drive carriers that t in the hard drive slots.
1. If installed, remove the front bezel.
74

Dell PowerEdge R230 Specifications

General

HDD speed	7200 RPM
RAID levels	0, 1, 5, 6, 10, 50
RAID support	Yes
HDD interface	Serial ATA III
SSD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD±RW
Supported HDD sizes	3.5 \
Total storage capacity	1000 GB
Maximum storage capacity	- TB
Number of HDDs installed	1
Number of HDDs supported	4
Processor cache	8 MB
Processor model	E3-1220V6
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel® C236
Processor frequency	3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor boost frequency	3.5 GHz
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	11
Memory slots	4x DIMM
Internal memory	8 GB
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 8 GB
Performance management	IPMI 2.0, Dell OpenManage
Power supply	250 W
Power supply input frequency	50 - 60 Hz
Redundant power supply (RPS) support	-
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 (x64) Red Hat Enterprise Linux VMware Vsphere 2015 SUSE Linux Enterprise Server
Chassis type	Rack (1U)
LAN controller	Broadcom BCM5720
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	PER230_EL0002A_Q1FY18_FG0010_BTP

Weight and Dimensions

Depth	495 mm
Width	434 mm
Height	42.8 mm
Weight	8770 g
