Dell PowerEdge R230 User Manual

3. 2.5-inch hard drive
Next steps
Install the 3.5-inch adapter into the 3.5-inch hot swappable hard drive carrier.
Related links
Installing a 3.5-inch hard drive adapter into the 3.5-inch hot swappable hard drive carrier
Removing a 3.5-inch hard drive adapter from a 3.5-inch hot swappable hard drive carrier
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions section.
2. Keep the Phillips #2 screwdriver ready.
3. Remove the 3.5-inch hot swappable hard drive carrier from the system.
Steps
1. Remove the screws from the rails on the 3.5-inch hot swappable hard drive carrier.
2. Lift the 3.5-inch hard drive adapter out of the 3.5-inch hot swappable hard drive carrier.

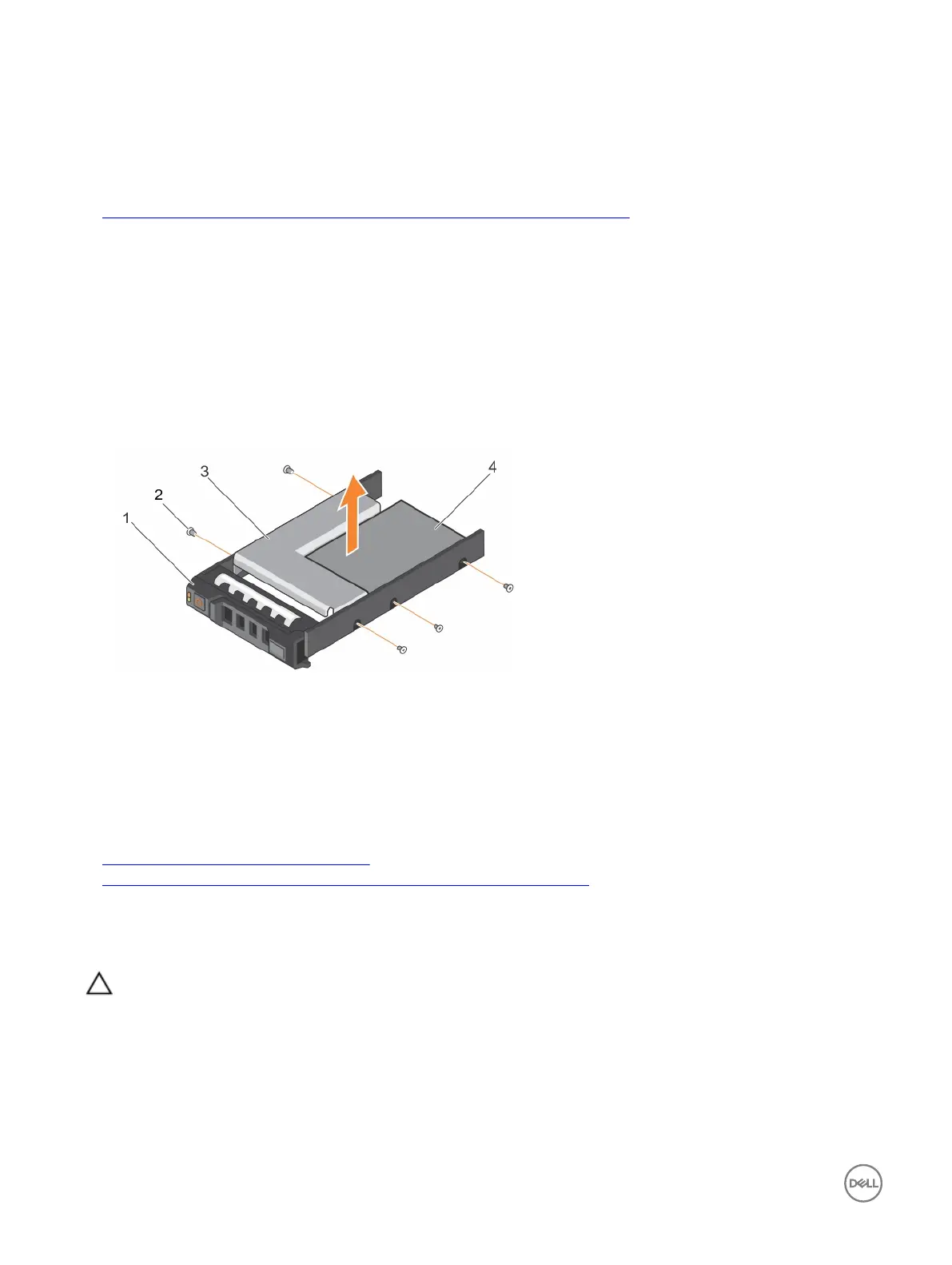

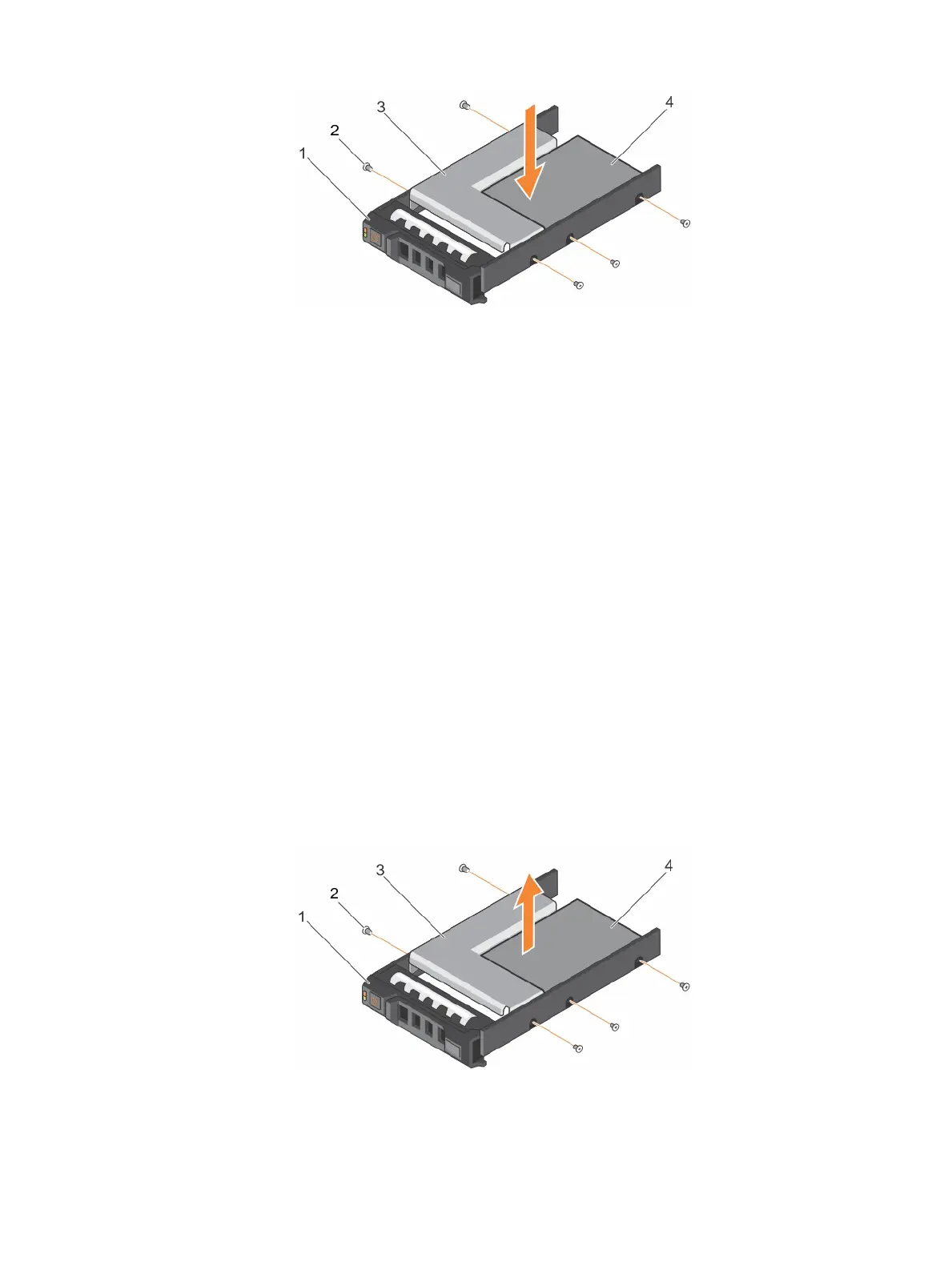

Figure 42. Removing a 3.5 inch hard drive adapter from a hard drive carrier.
1.
3.5-inch hot swappable hard drive carrier 2. screw (5)
3. 3.5-inch hard drive adapter 4. 2.5-inch hot swappable hard drive
Next steps
Remove the 2.5-inch hot swappable hard drive from a 3.5-inch hard drive adapter.
Related links
Removing a hot swappable hard drive carrier
Removing a 2.5-inch hot swappable hard drive from a 3.5-inch hard drive adapter
Installing a 3.5-inch hard drive adapter into the 3.5-inch hot swappable hard drive carrier
Prerequisites
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and
simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support
team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety
instructions that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Keep the Phillips #2 screwdriver ready.
3. Install the 2.5-inch hot swappable hard drive into the 3.5-inch hard drive adapter.
80

Dell PowerEdge R230 Specifications

General

HDD speed	7200 RPM
RAID levels	0, 1, 5, 6, 10, 50
RAID support	Yes
HDD interface	Serial ATA III
SSD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD±RW
Supported HDD sizes	3.5 \
Total storage capacity	1000 GB
Maximum storage capacity	- TB
Number of HDDs installed	1
Number of HDDs supported	4
Processor cache	8 MB
Processor model	E3-1220V6
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel® C236
Processor frequency	3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor boost frequency	3.5 GHz
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	11
Memory slots	4x DIMM
Internal memory	8 GB
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 8 GB
Performance management	IPMI 2.0, Dell OpenManage
Power supply	250 W
Power supply input frequency	50 - 60 Hz
Redundant power supply (RPS) support	-
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 (x64) Red Hat Enterprise Linux VMware Vsphere 2015 SUSE Linux Enterprise Server
Chassis type	Rack (1U)
LAN controller	Broadcom BCM5720
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	PER230_EL0002A_Q1FY18_FG0010_BTP

Weight and Dimensions

Depth	495 mm
Width	434 mm
Height	42.8 mm
Weight	8770 g
