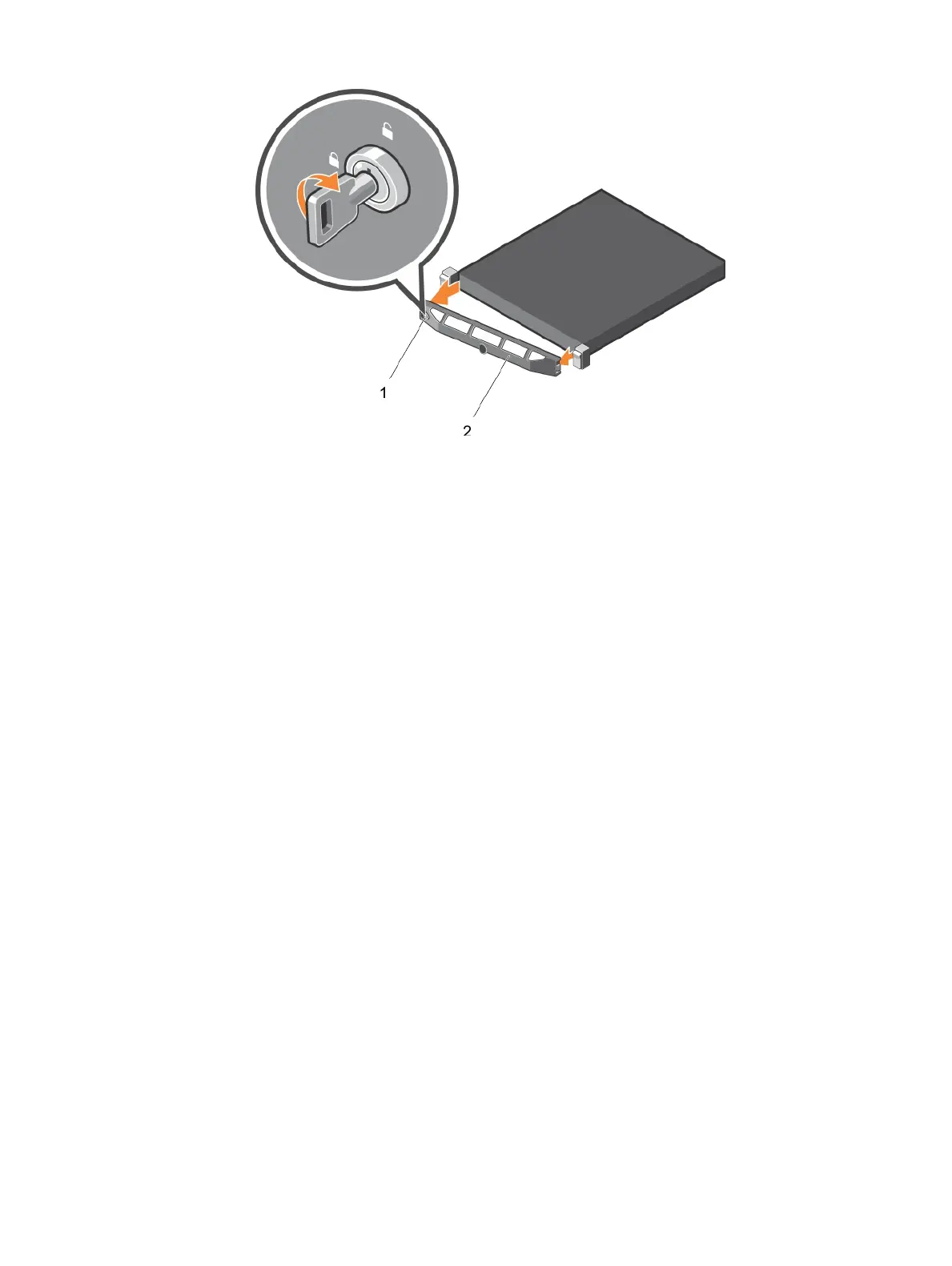

Figure 13. Removing the optional front bezel
1 bezel lock 2 front bezel
System cover
Removing the system cover
Prerequisites
1 Ensure that you follow the Safety instructions.
2 Turn o the system, including any attached peripherals.
3 Disconnect the system from the electrical outlet and peripherals.
4 If installed, remove the front bezel.
Steps
1 Turn the latch release lock to the unlock position.
2 Lift the latch and rotate the latch toward the back of the system.
The system cover slides back, disengaging the tabs on the system cover from the slots on the chassis.
3 Hold the cover on both sides, and lift the cover away from the system.
