Dell PowerEdge R730 - Hard-Drive Indicator Codes

Hard-drive indicator codes

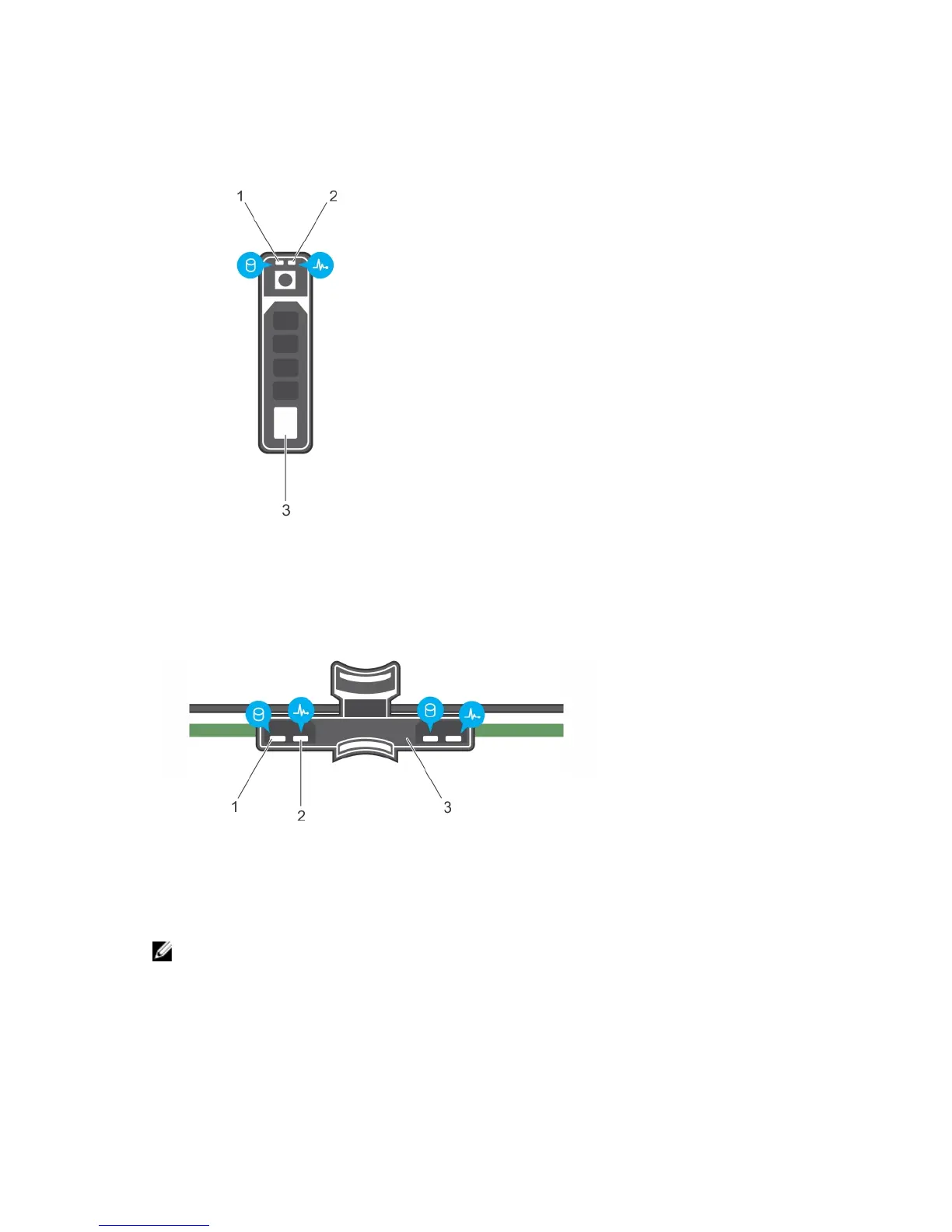

Figure 7. Hard-drive indicators
1. hard-drive activity indicator 2. hard-drive status indicator
3. hard drive
Figure 8. Hard-drive indicators on the hard-drive tray backplane
1. hard-drive activity indicator 2. hard-drive status indicator
3. hard-drive backplane on hard-drive tray
NOTE: If the hard drive is in Advanced Host Controller Interface (AHCI) mode, the status indicator
(on the right side) does not function and remains off.
20
