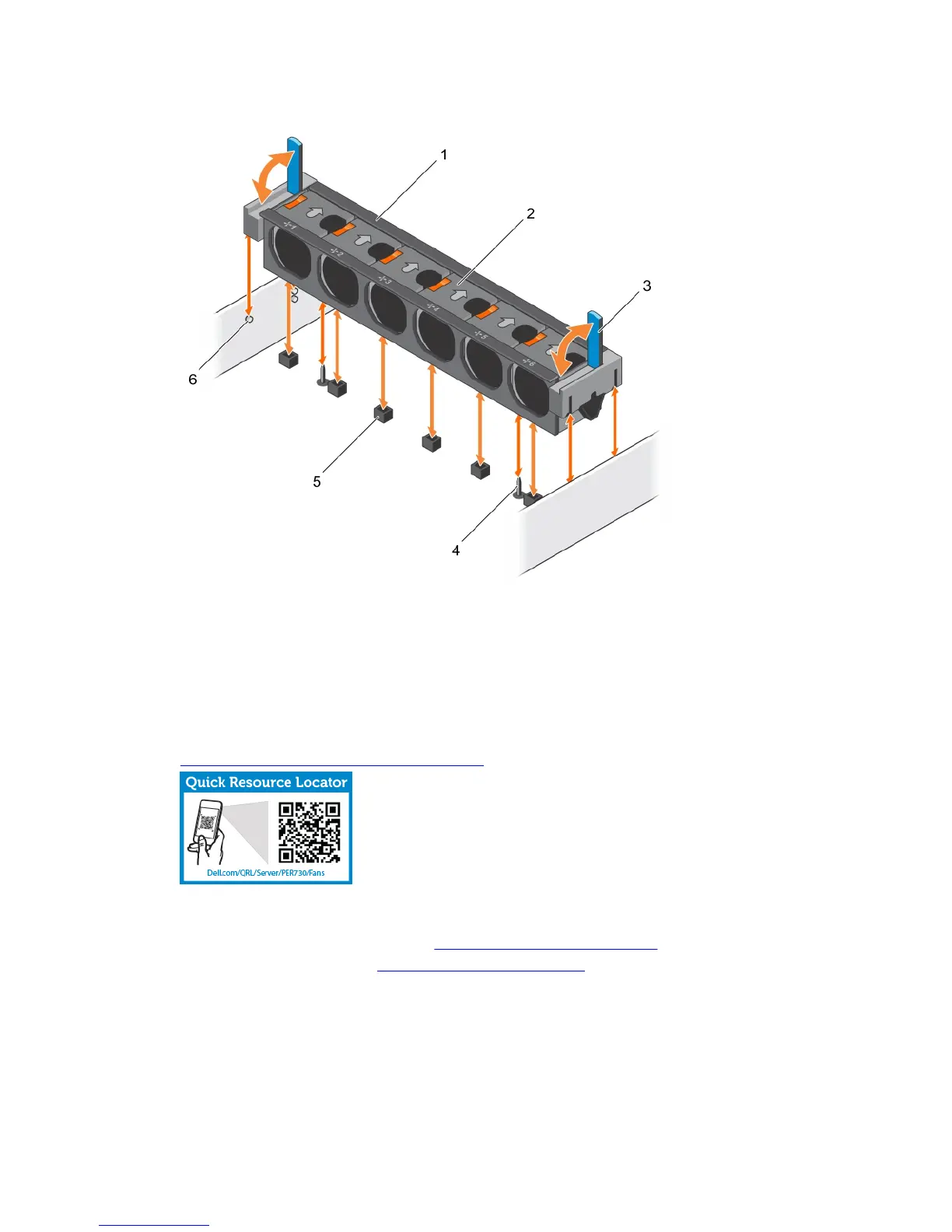

Figure 28. Removing and installing the cooling-fan assembly
1. cooling-fan assembly 2. cooling fan (6)
3. release lever (2) 4. guide pin on the system board (2)
5. cooling-fan connector (6) 6. guide pin on the chassis (6)
Related video
http://www.Dell.com/QRL/Server/PER730/Fans
Next steps
1. Replace the cooling-fan assembly. See Installing the cooling-fan assembly.
2. Follow the procedure listed in After working inside your system.
