Flat-Panel Monitor Front and Back View

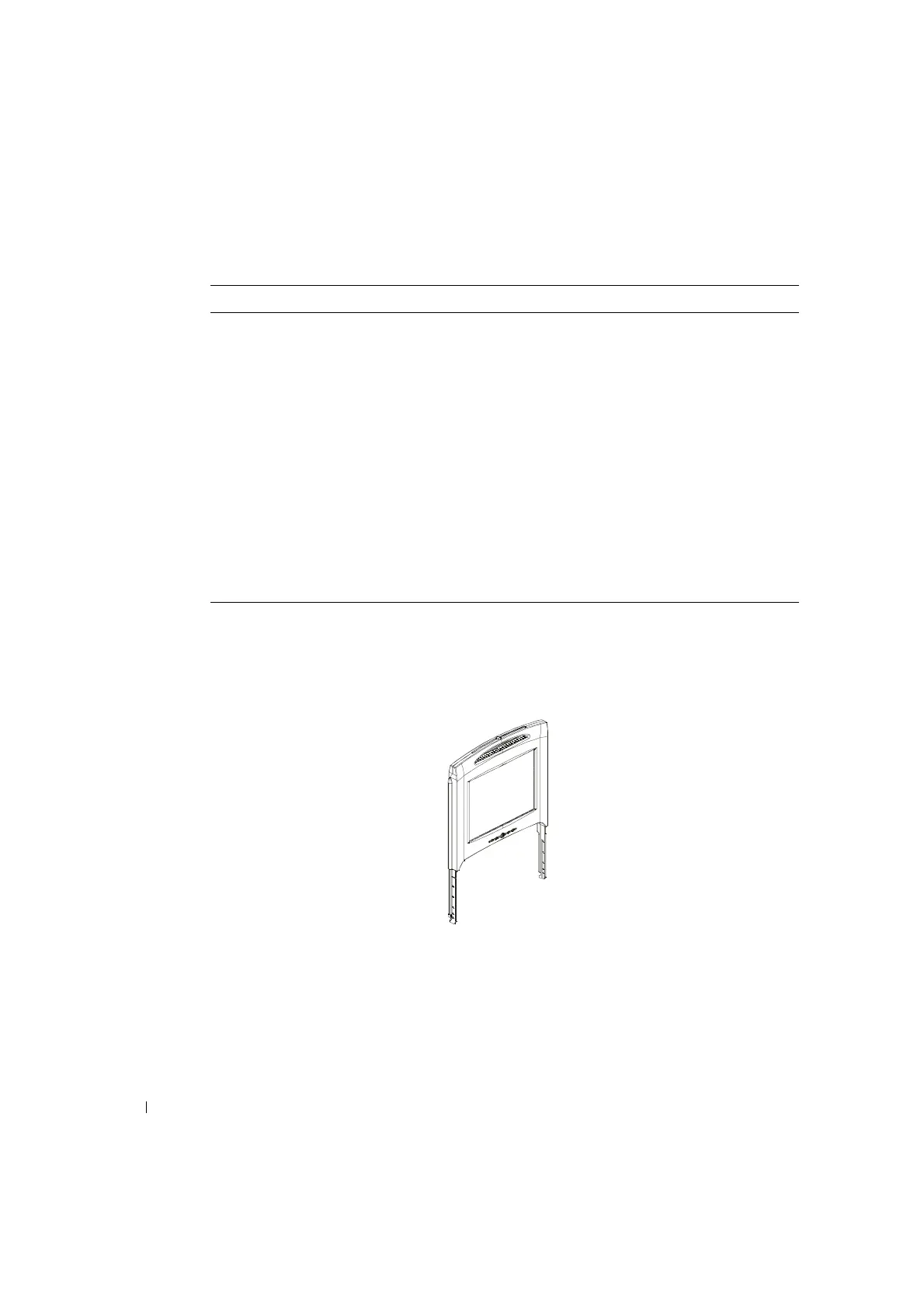

Figure 1-2. Front View
5 Logic Ground
6 Red Video Ground
7 Green Video Ground
8 Blue Video Ground
9VCC
10 VGA _ CON (check VGA cable)
11 NC
12 SDA (DDC1/2B)
13 Horizontal Sync
14 Vertical Sync
15 SCL (DDC2B)
Table 1-3. Signal Connector (15 pin D-sub Connector)
(continued)
Pin No Signal
