128 Installing System Components

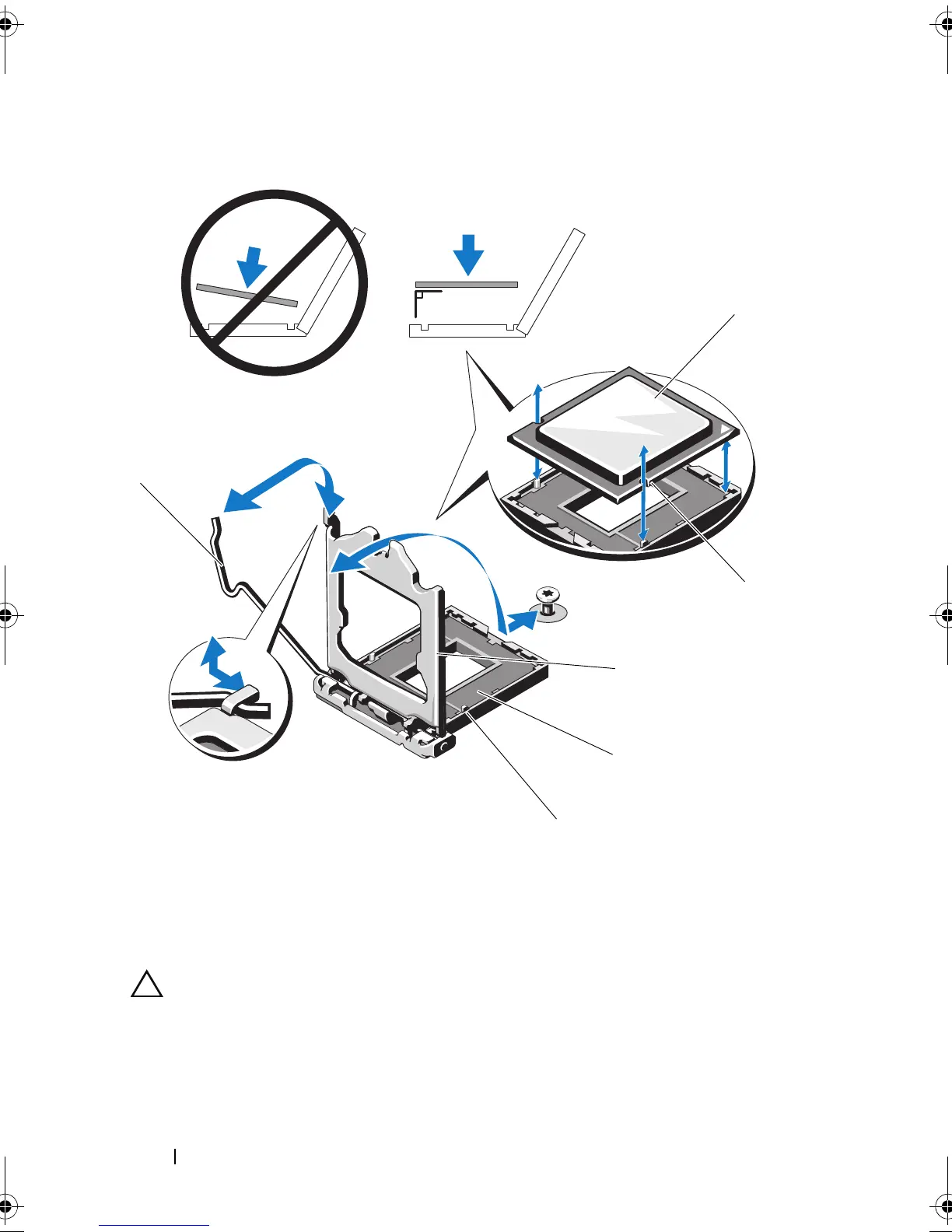

Figure 3-23. Removing a Processor
CAUTION: Be careful not to bend any of the pins on the ZIF socket when removing
the processor. Bending the pins can permanently damage the system board.
1 processor 2 notch in processor (2)
3 processor shield 4 ZIF socket
5 socket key (2) 6 socket-release lever
1
2
3
4
5
6
