Installing System Components 139
5 Disconnect all of the cables connected to the SAS backplane including
the nSAS A cable, SAS B cable used for 3.5 inch hard drives, the backplane
power cable, and the data cable. See Figure 3-28.
6 To remove the SAS backplane, pull the blue release pin and slide the
backplane upwards.
7 Pull the backplane away from the front of the system until the securing
slots are free from the tabs on the chassis.

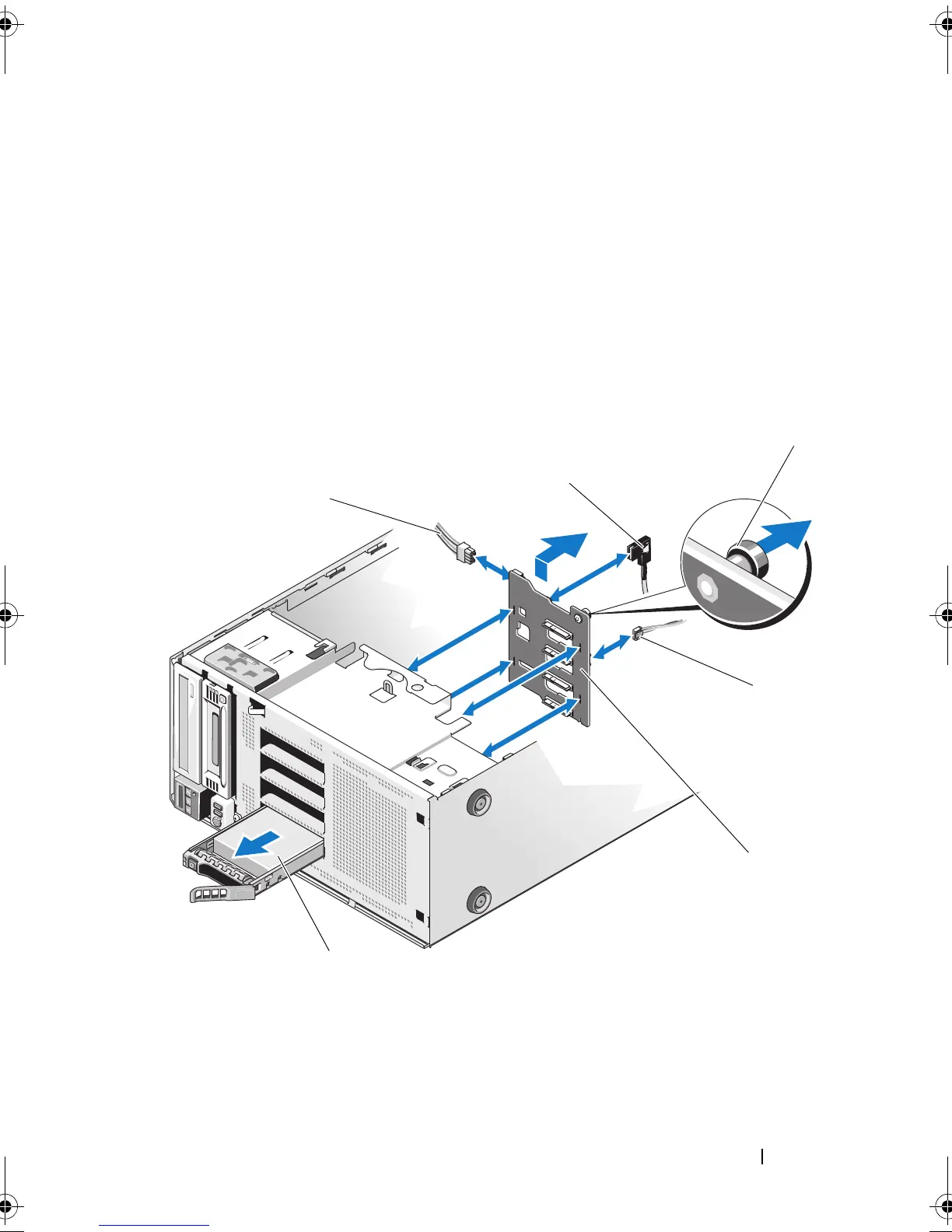

Figure 3-28. Removing and Installing a SAS Backplane
1 power cable 2 SAS A cable
3 blue release pin 4 J_planar cable
5 SAS backplane 6 hard drive
3
2
4
5
6
1
