Installing System Components 141
5
Remove the cables that are routed on the power distribution board.
6
To remove the power distribution board, pull the blue release pin and
slide the board up.
7
Pull the board away from the chassis until the securing slots on the
board are free from the tabs on the chassis.

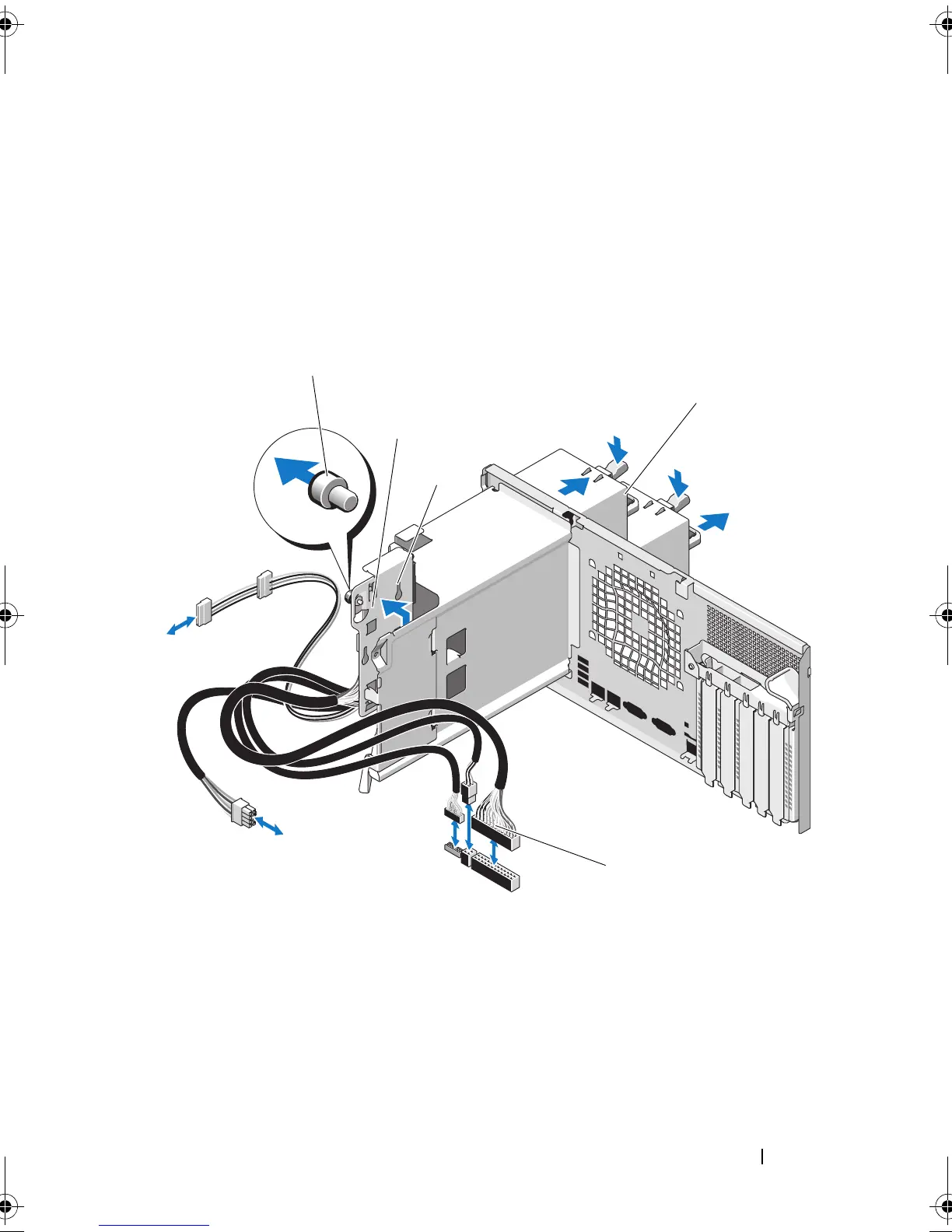

Figure 3-29. Power Distribution Board
1 blue release pin 2 power-distribution board
3 securing slots 4 redundant power supplies (2)
5 power distribution board cables (5)
book.book Page 141 Wednesday, August 19, 2009 4:40 PM
