Rear view of the system

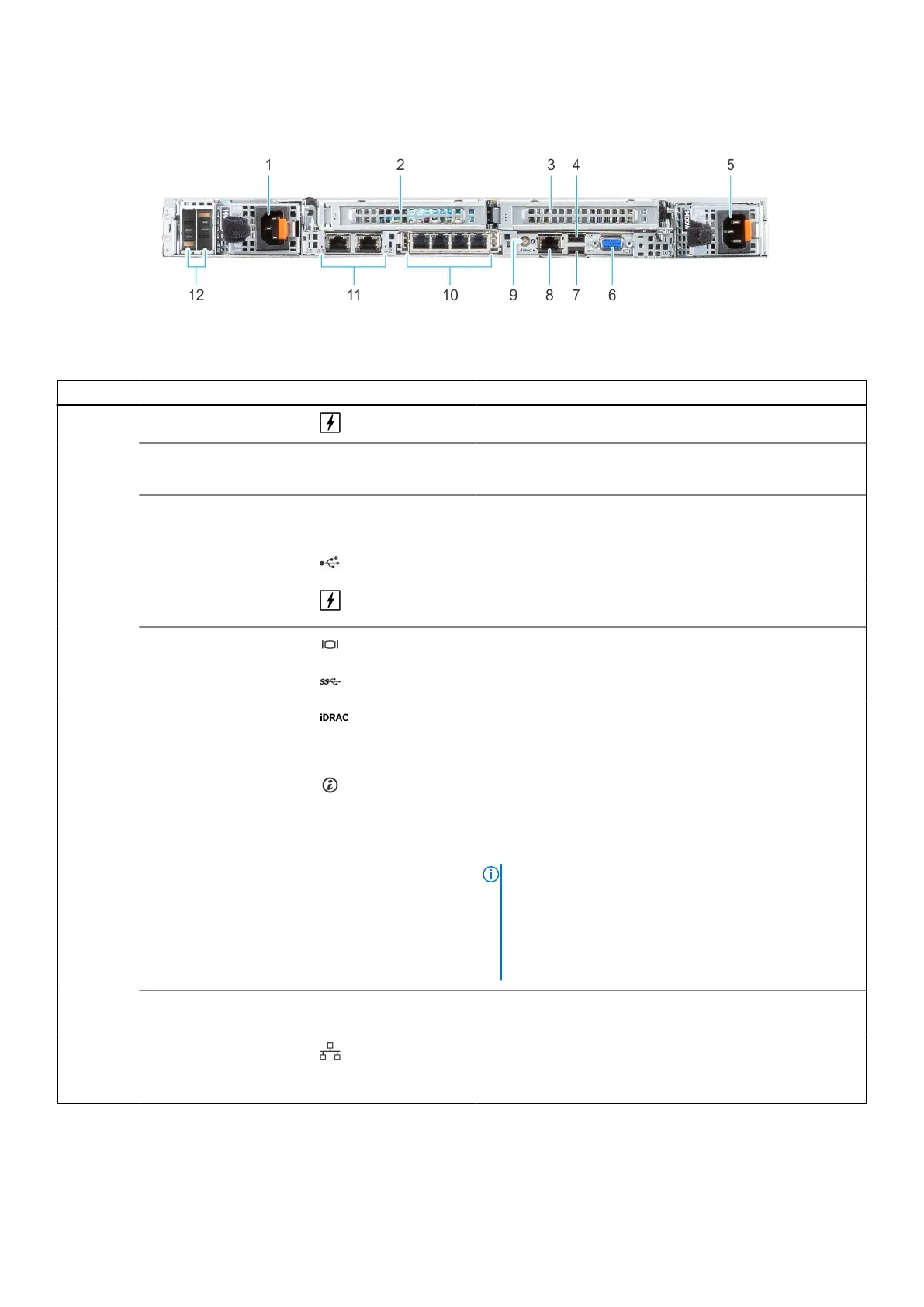

Figure 6. Rear view of the 10 x 2.5-inch drive system
Table 5. Rear view of the system
Item Ports, panels, or slots Icon Description
1 Power supply unit (PSU 1) Indicates the PSU.
2
PCIe expansion card riser
(slot 1)
N/A
The expansion card riser enables you to connect PCI
Express expansion cards.
3
PCIe expansion card riser
(slot 2)
N/A
The expansion card riser enables you to connect PCI
Express expansion cards.
4 USB 2.0 port (1) This port is USB 2.0-compliant.
5 Power supply unit (PSU
2)
Indicates the PSU.
6
VGA port Enables you to connect a display device to the system. .
7 USB 3.0 port (1) This port is USB 3.0-compliant.
8 iDRAC dedicated port
Enables you to remotely access iDRAC. For more
information, see the iDRAC Users Guide at www.dell.com/
poweredgemanuals.
9 System identification
button
Press the system ID button:
To locate a particular system within a rack.
To turn the system ID on or off.
To reset iDRAC, press and hold the button for more than 16
seconds.
NOTE:
To reset iDRAC using system ID, ensure that the
system ID button is enabled in the iDRAC setup.
If the system stops responding during POST, press
and hold the system ID button (for more than 5
seconds) to enter the BIOS progress mode.
10
OCP NIC port (optional) N/A This port supports OCP 3.0. The NIC ports are integrated
on the OCP card, which is connected to the system board.
11 NIC port (2) The NIC ports are embedded on the LOM card that is
connected to the system board.
12 BOSS S2 card (optional) N/A This slot supports the BOSS S2 module.
