Dell PowerFlex Custom Node R6525 - Left control panel view

Left control panel view

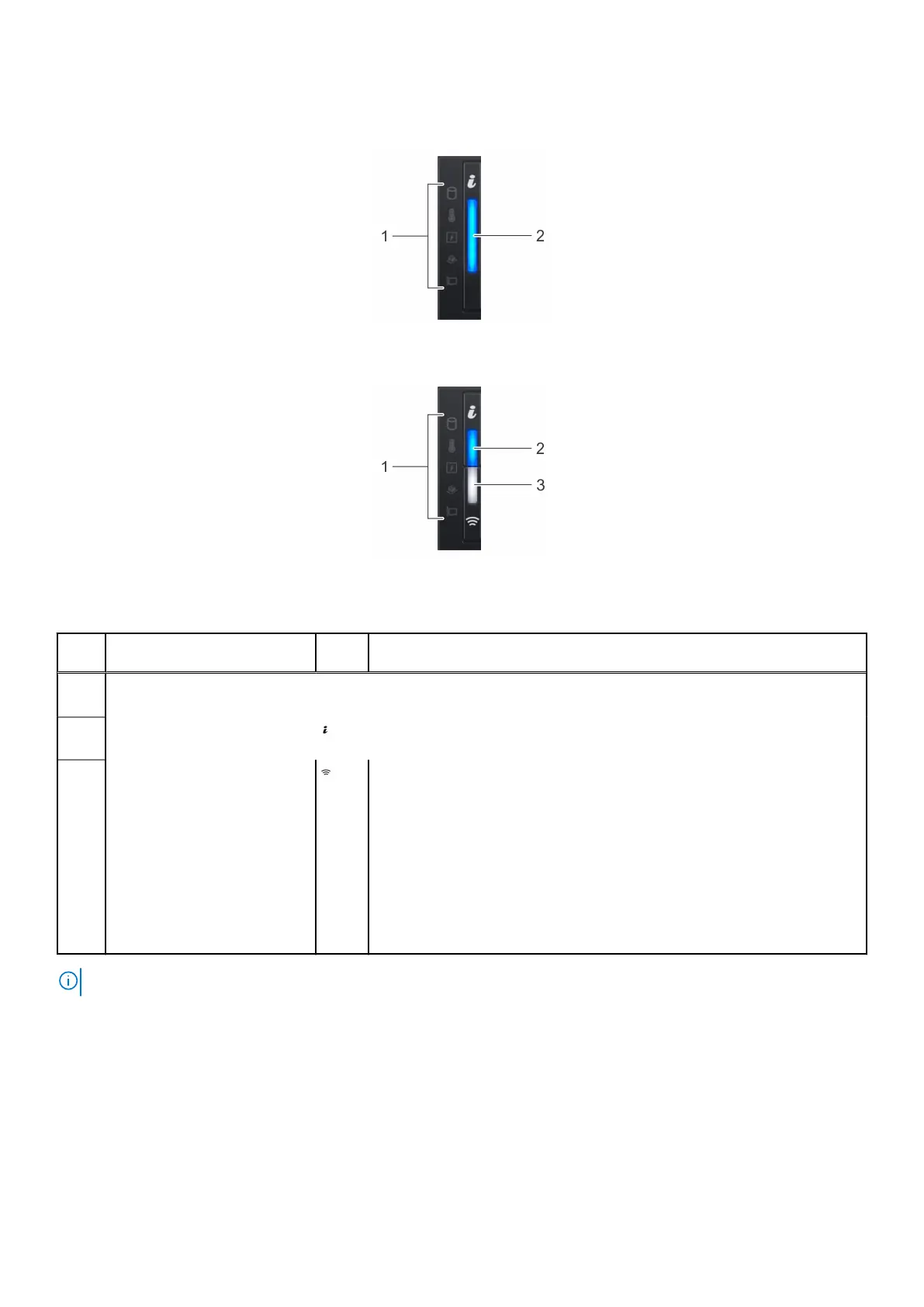

Figure 4. Left control panel without optional iDRAC Quick Sync 2.0 indicator
Figure 5. Left control panel with optional iDRAC Quick Sync 2.0 indicator
Table 4. Left control panel
Item Indicator, button, or
connector
Icon Description
1 Status LED indicators N/A Indicates the status of the system. For more information, see Status LED
indicators.
2
System health and system ID
indicator
Indicates the system health. For more information, see System diagnostics
and indicator codes.
3
iDRAC Quick Sync 2 wireless
indicator (optional)
Indicates whether the iDRAC Quick Sync 2 wireless option is activated.
The Quick Sync 2 feature allows management of the system using mobile
devices. This feature aggregates hardware/firmware inventory and various
system level diagnostic/error information that can be used in troubleshooting
the system. You can access system inventory, Dell Lifecycle Controller logs
or system logs, system health status, and also configure iDRAC, BIOS,
and networking parameters. You can also launch the virtual Keyboard,
Video, and Mouse (KVM) viewer and virtual Kernel-based Virtual Machine
(KVM), on a supported mobile device. For more information, see the
Integrated Dell Remote Access Controller User's Guide at www.dell.com/
poweredgemanuals.
NOTE: For more information about the indicator codes, see System diagnostics and indicator codes.
