Jumpers and connectors
This section provides essential and specific information about jumpers and switches. It also describes the connectors on the
various boards in the system. Jumpers on the system board help to disable the system and reset the passwords. To install
components and cables correctly, you must be able to identify the connectors on the system board.
System board connectors

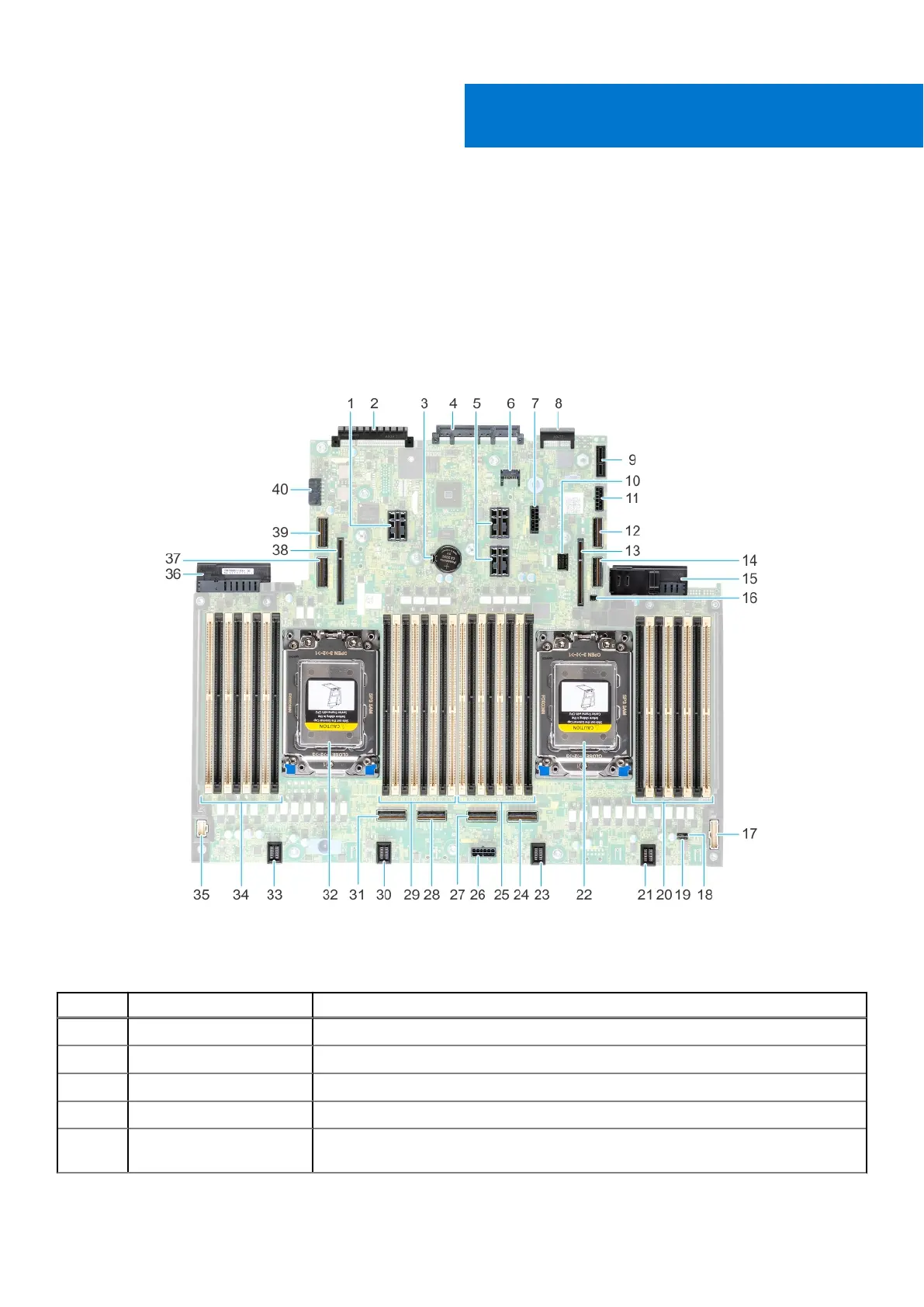

Figure 22. System board jumpers and connectors
Table 30. System board jumpers and connectors
Item Connector Description
1. IO_RISER3 (CPU2) Riser 3
2. Rear I/O connector Rear I/O connector
3. Coin cell battery Coin cell battery
4. OCP NIC 3.0 connector OCP NIC 3.0 connector
5. IO_RISER2_A (CPU1)
IO_RISER2_B (CPU2)
Riser 2
5
Jumpers and connectors 37

Dell PowerFlex Custom Node R6525 Specifications

General

Processor	Up to 2x AMD EPYC 7002/7003 series processors, up to 64 cores per processor
Memory	32 DDR4 DIMM slots
Drive Bays	Up to 24 x 2.5" SAS/SATA (HDD/SSD)
RAID Support	PERC H745P
Networking	1GbE, 10GbE, 25GbE
Power Supply	1100W Platinum
