104 Installing System Components

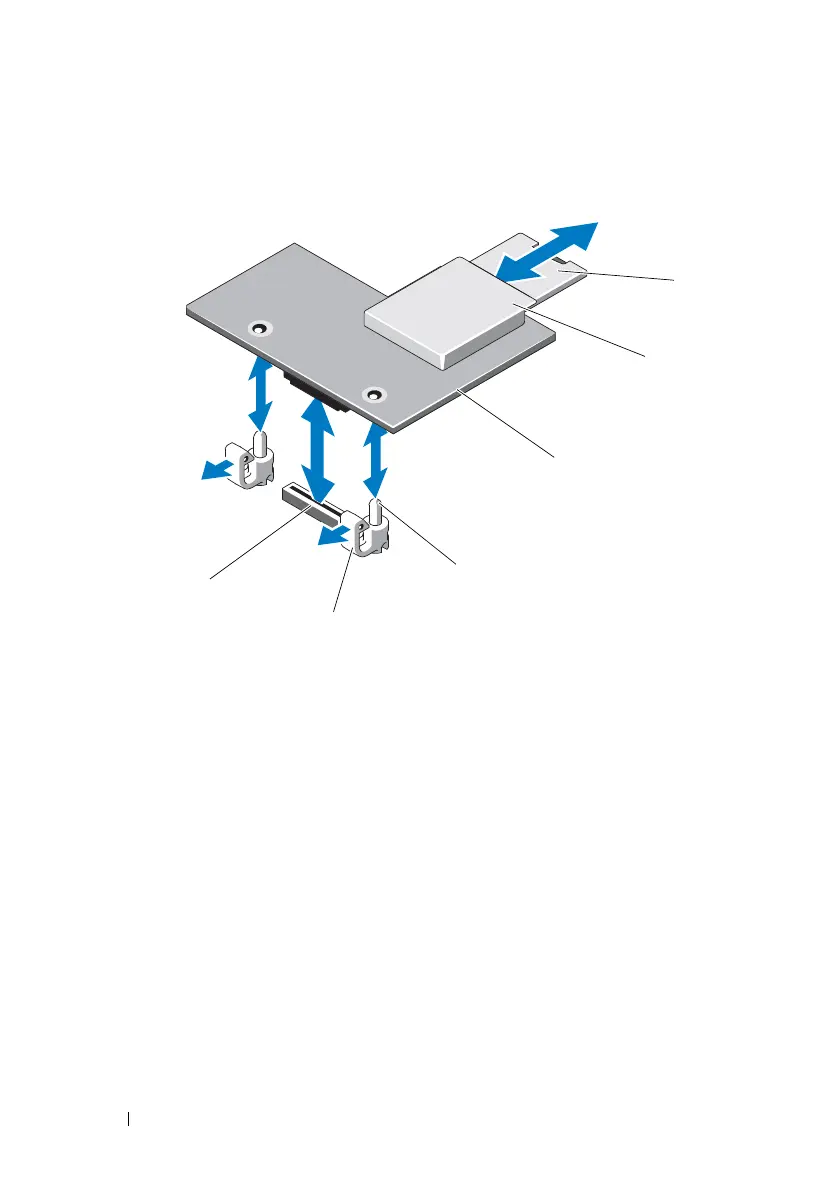

Figure 3-17. Installing or Removing an iDRAC6 Enterprise Card
7
If applicable, install the VFlash media card. See "Installing a VFlash Media
Card" on page 106.
8
Close the system. See "Closing the System" on page 67.
9
Reconnect the system and peripherals to their power sources, and turn
them on.
1 VFlash SD card 2 VFlash media slot
3 iDRAC6 Enterprise card 4 retention standoff posts (2)
5 retention standoff tabs (2) 6 iDRAC6 Enterprise card connector
