Installing System Components 81

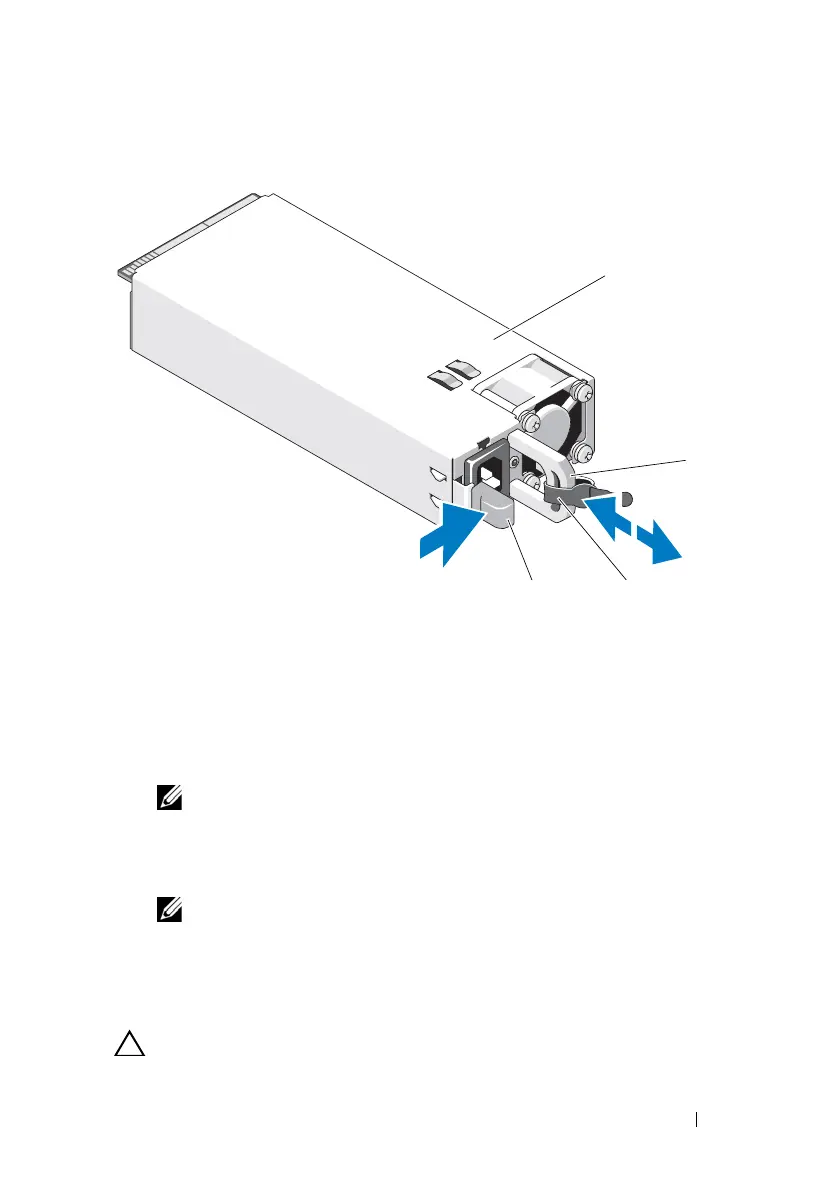

Figure 3-11. Removing and Installing a Redundant Power Supply
Installing a Redundant Power Supply
1 Verify that both power supplies are of the same type and have the same
maximum output power.
NOTE: The maximum output power (shown in watts) is listed on
the power supply label.
2 Slide the new power supply into the chassis until the power supply is
fully seated and the release latch snaps into place. See Figure 3-11.
NOTE: If you unlatched the cable management arm in step 2 of the previous
procedure, relatch it. For information about the cable management arm,
see the system’s rack documentation.
3 Connect the power cable to the power supply and plug the cable into a
power outlet.
CAUTION: When connecting the power cable, secure the cable with
the Velcro strap.
1 power supply 2 power supply handle
3 velcro strap 4 release latch
1
3
2
4
