Front Bezel (Optional)
Removing the Front Bezel
1 Using the system key, unlock the bezel.
2 Lift the release latch next to the key lock.
3 Rotate the left end of the bezel away from the front panel.
4 Unhook the right end of the bezel and pull the bezel away from
the system.

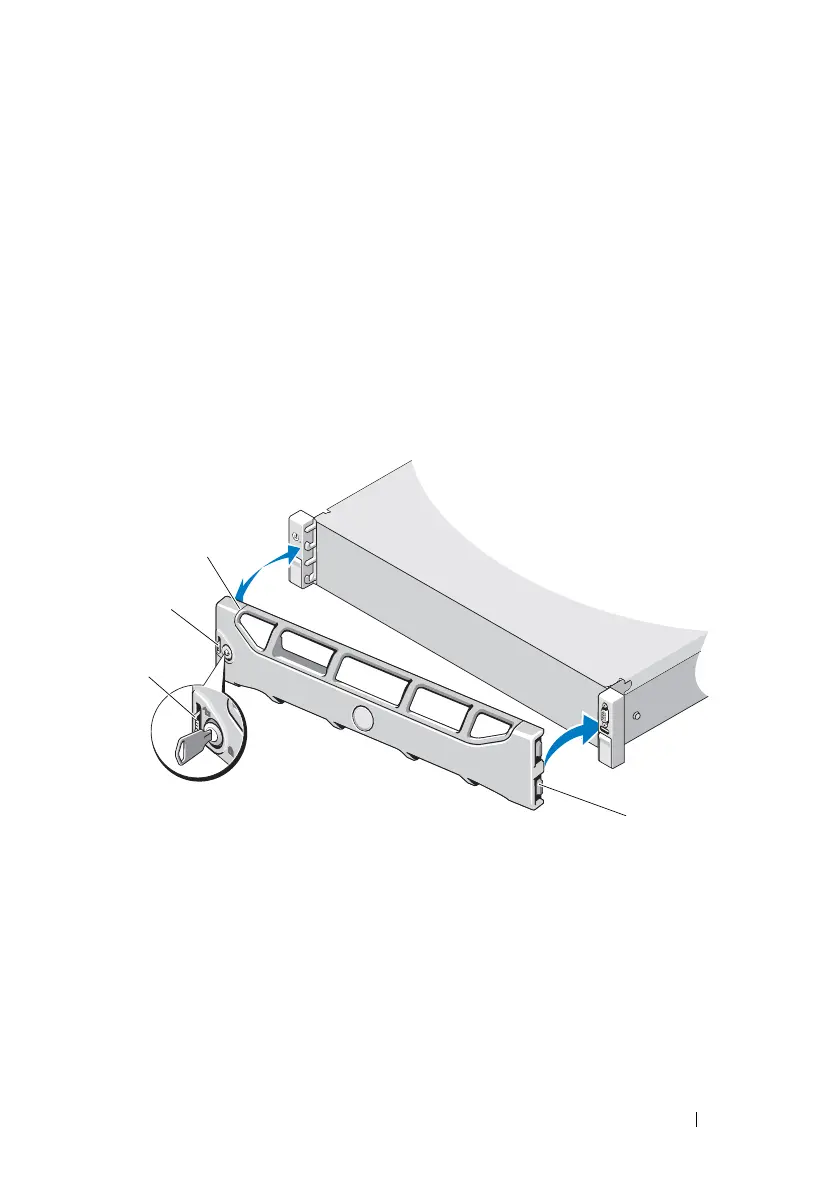

Figure 3-2. Removing and Installing the Front Bezel
1 release latch 2 keylock
3 bezel 4 hinge tab
